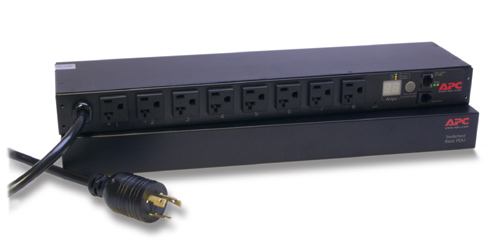

APC Rack PDU, Switched, 1U, 20A

APC Rack PDU, Switched, 1U, 20A

120V, (8)5-20

Model AP7901BEAN 098379082666

32 specifications

Weight2.27 kg
ColourBlack
PDU typesSwitched
AC outlets quantity8 AC outlet(s)
Cable length3.66 m
MonitoringCurrent

See all specifications

Overview

Weight: 2.27 kg
Colour: Black
PDU types: Switched
AC outlets quantity: 8 AC outlet(s)
Cable length: 3.66 m
Monitoring: Current

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP7901B
Part number: AP7901B
EAN / UPC: 098379082666, 731304331575
Also known as: APC Rack PDU, Switched, 1U, 20A, 120V, (8)5-20

Specifications

32 specifications in 9 groups

Design

Specification	Value
PDU types	Switched
Rack capacity	1U
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–20R
Input connection type	NEMA L5-20P

Features

Specification	Value
Cable length	3.66 m

Management features

Specification	Value
Monitoring	Current
Outlet control	Recycle, Turn off

Power

Specification	Value
Nominal input voltage	120 V
AC input frequency	50 - 60 Hz
Maximum current	20 A
Nominal output voltage	120 V
Load capacity	2400 VA
Maximum input current per phase	20 A
Maximum total current draw per phase	16 A

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	cUL, CSA, FCC 15 A, ICES-003, UL 60950, UL

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Weight & dimensions

Specification	Value
Width	445 mm
Depth	108 mm
Height	44 mm
Weight	2.27 kg

Packaging data

Specification	Value
Package weight	3.45 kg
Package width	470 mm
Package depth	343 mm
Package height	70 mm
