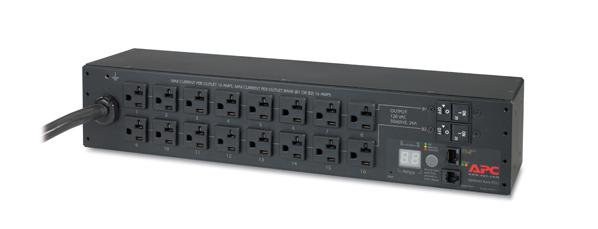

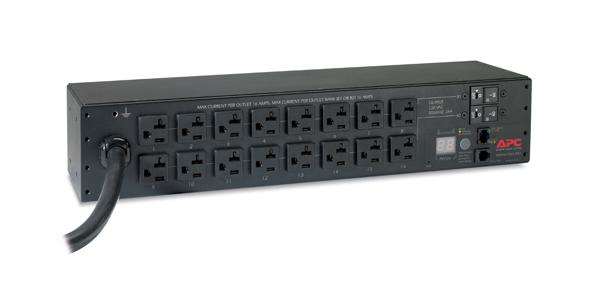

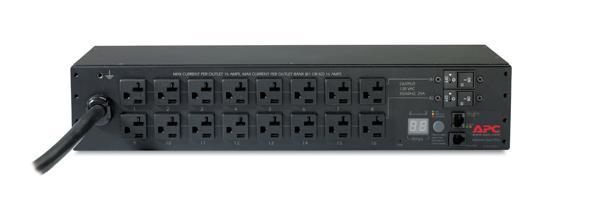

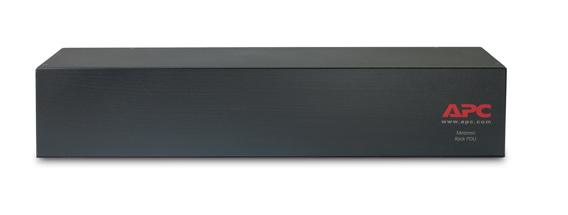

APC AP7802B power distribution unit (PDU) 16 AC outlet(s) 2U Black

APC AP7802B power distribution unit (PDU) 16 AC outlet(s) 2U Black

Model AP7802BEAN 731304331476

32 specifications

Power14400 W
Weight3.36 kg
ColourBlack
PDU typesMetered
AC outlets quantity16 AC outlet(s)
LED indicatorsAlarm

See all specifications

Overview

Power: 14400 W
Weight: 3.36 kg
Colour: Black
PDU types: Metered
AC outlets quantity: 16 AC outlet(s)
LED indicators: Alarm

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP7802B
Part number: AP7802B
EAN / UPC: 731304331476
Also known as: APC AP7802B power distribution unit (PDU) 16 AC outlet(s) 2U Black

Specifications

32 specifications in 9 groups

Design

Specification	Value
PDU types	Metered
Rack capacity	2U
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	16 AC outlet(s)
AC outlet types	NEMA 5–20R
Input connection type	NEMA L5-30P

Features

Specification	Value
LED indicators	Alarm
Cable length	3.66 m

Management features

Specification	Value
Monitoring	Current

Power

Specification	Value
Nominal input voltage	100 - 120 V
AC input frequency	50 - 60 Hz
Maximum current	30 A
Nominal output voltage	120 V
Load capacity	2880 VA
Maximum total current draw per phase	24 A
Maximum power	14400 W
Power protection features	Overload

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	cUL Listed, CSA, FCC Part 15 Class A, ICES-003, UL 60950, UL Listed

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m

Weight & dimensions

Specification	Value
Width	444 mm
Depth	112 mm
Height	88 mm
Weight	3.36 kg

Packaging data

Specification	Value
Package weight	4.44 kg
Package width	508 mm
Package depth	368 mm
Package height	140 mm
