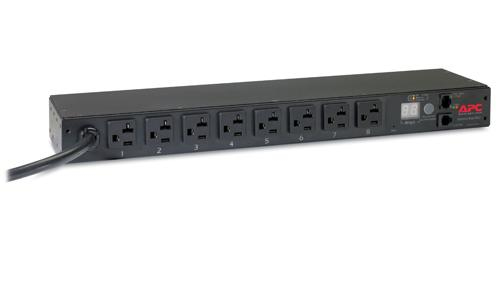

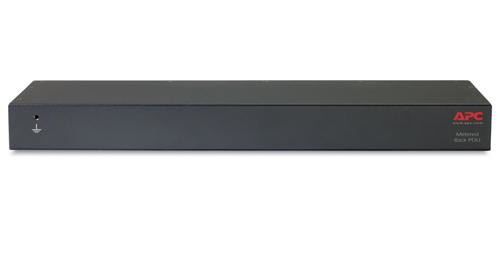

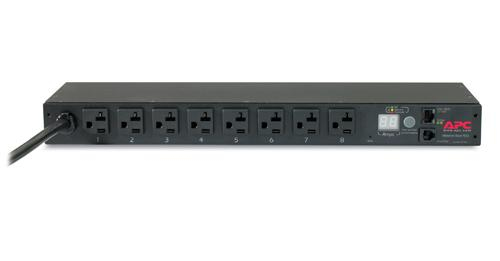

APC AP7801B power distribution unit (PDU) 8 AC outlet(s) 1U Black

APC AP7801B power distribution unit (PDU) 8 AC outlet(s) 1U Black

Model AP7801BEAN 731304331469

32 specifications

Weight1.73 kg
ColourBlack
PDU typesMetered
AC outlets quantity8 AC outlet(s)
LED indicatorsYes
MonitoringCurrent

See all specifications

Overview

Weight: 1.73 kg
Colour: Black
PDU types: Metered
AC outlets quantity: 8 AC outlet(s)
LED indicators: Yes
Monitoring: Current

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP7801B
Part number: AP7801B
EAN / UPC: 731304331469
Also known as: APC AP7801B power distribution unit (PDU) 8 AC outlet(s) 1U Black

Specifications

32 specifications in 9 groups

Design

Specification	Value
PDU types	Metered
Rack capacity	1U
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA L5-20R
Input connection type	NEMA L5-20P

Features

Specification	Value
LED indicators	Yes
Cable length	3.66 m

Management features

Specification	Value
Monitoring	Current

Power

Specification	Value
Nominal input voltage	100-120 V
AC input frequency	50 - 60 Hz
Maximum current	20 A
Nominal output voltage	120 V
Load capacity	1920 VA
Maximum input current per phase	20 A
Maximum total current draw per phase	16 A

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	cUL, CSA, FCC 15 A, ICES-003, UL 60950, UL

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Weight & dimensions

Specification	Value
Width	444 mm
Depth	102 mm
Height	44 mm
Weight	1.73 kg

Packaging data

Specification	Value
Package weight	2.91 kg
Package width	470 mm
Package depth	337 mm
Package height	64 mm
