Product comparison · 2 power distribution units (pdus)

APC AP6002A power distribution unit (PDU) 16 AC outlet(s) Black vs APC AP7801B power distribution unit (PDU) 8 AC outlet(s) 1U Black

Add a product
  • 26specifications compared
  • 19differ
  • 7identical
  • 8known for one product only

Key differences

  • PDU types
    • Basic
    • Metered
  • AC outlets quantity
    • 16 AC outlet(s)
    • 8 AC outlet(s)
  • AC outlet types
    • C13 coupler, C19 coupler
    • NEMA L5-20R
  • Input connection type
    • NEMA L6-30P
    • NEMA L5-20P
  • Nominal input voltage
    • 208 V
    • 100-120 V
  • Maximum current
    • 30 A
    • 20 A
  • Maximum input current per phase
    • 30 A
    • 20 A
  • Maximum total current draw per phase
    • 30 A
    • 16 A

Side by side

Differences highlightedShow differences only
34 specifications
A

APC

AP6002A power distribution unit (PDU) 16 AC outlet(s) Black

Model AP6002A

View product
B

APC

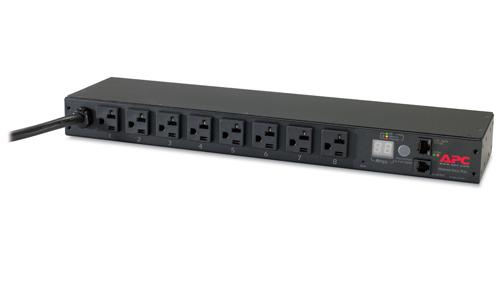

AP7801B power distribution unit (PDU) 8 AC outlet(s) 1U Black

Model AP7801B

View product
Design1 differ
PDU typesDiffersBasicMetered
Rack capacityKnown for one1U
Product colourBlackBlack
Ports & interfaces3 differ
AC outlets quantityDiffers16 AC outlet(s)8 AC outlet(s)
AC outlet typesDiffersC13 coupler, C19 couplerNEMA L5-20R
Input connection typeDiffersNEMA L6-30PNEMA L5-20P
Featuresidentical
LED indicatorsKnown for oneYes
Cable lengthKnown for one3.66 m
Management featuresidentical
MonitoringKnown for oneCurrent
Power4 differ
Nominal input voltageDiffers208 V100-120 V
AC input frequency50 - 60 Hz50 - 60 Hz
Maximum currentDiffers30 A20 A
Nominal output voltageKnown for one120 V
Load capacityKnown for one1920 VA
Maximum input current per phaseDiffers30 A20 A
Maximum total current draw per phaseDiffers30 A16 A
Power protection featuresKnown for oneOverload
Certificates1 differ
Compliance certificatesRoHSRoHS
CertificationDifferscUL, ULcUL, CSA, FCC 15 A, ICES-003, UL 60950, UL
Operational conditions2 differ
Operating temperature (T-T)Differs0 - 50 °C-5 - 45 °C
Storage temperature (T-T)Differs-15 - 65 °C-25 - 65 °C
Operating relative humidity (H-H)5 - 95%5 - 95%
Storage relative humidity (H-H)5 - 95%5 - 95%
Operating altitude0 - 3000 m0 - 3000 m
Non-operating altitude0 - 15000 m0 - 15000 m
Weight & dimensions4 differ
WidthDiffers56 mm444 mm
DepthDiffers47 mm102 mm
HeightDiffers833 mm44 mm
WeightDiffers2.78 kg1.73 kg
Packaging data4 differ
Package weightDiffers3.24 kg2.91 kg
Package widthDiffers156 mm470 mm
Package depthDiffers137 mm337 mm
Package heightDiffers966 mm64 mm
Packaging contentidentical
Packaging contentKnown for oneInstallation guide, Safety guide

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
