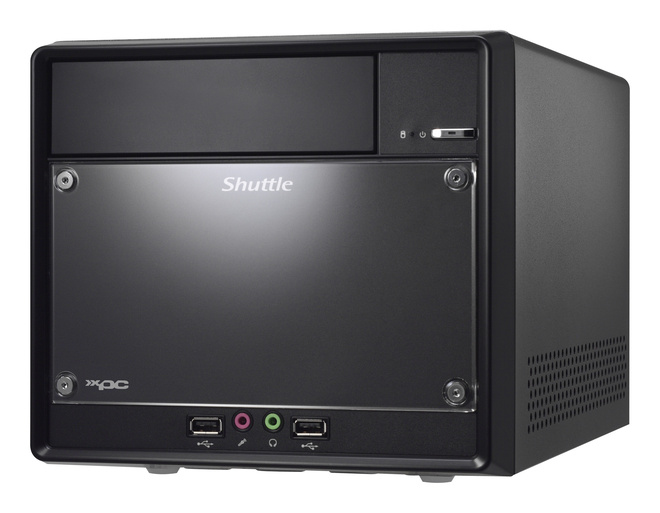

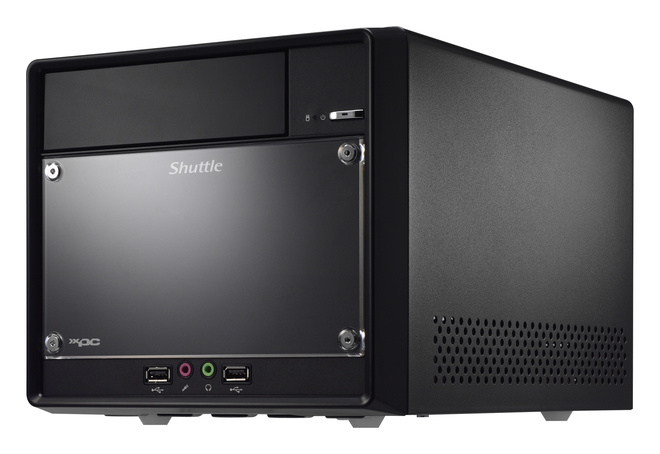

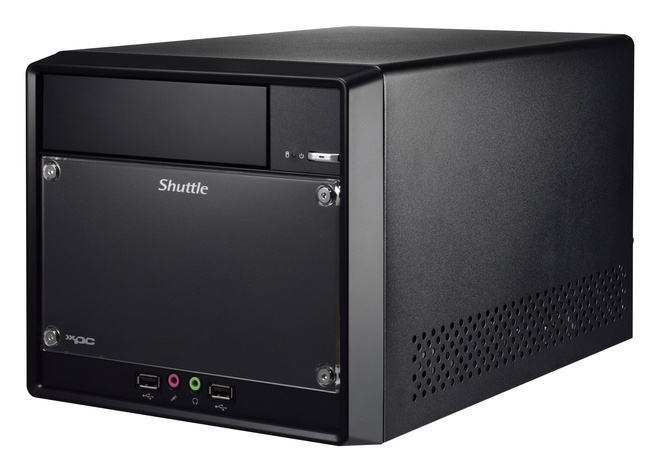

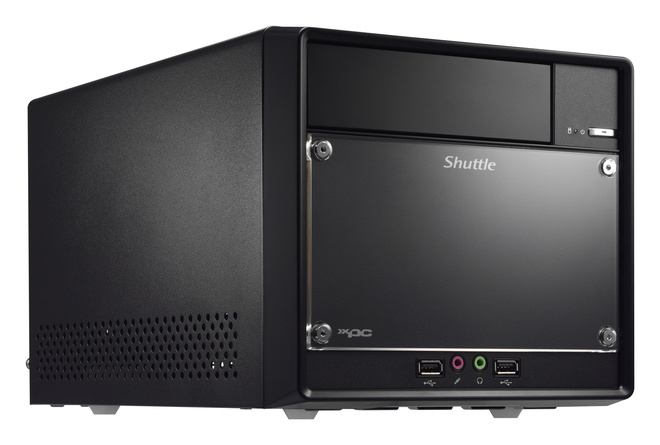

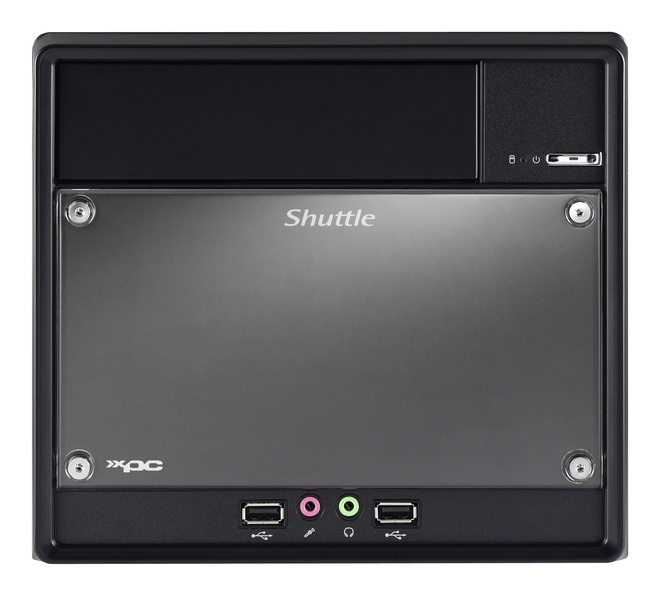

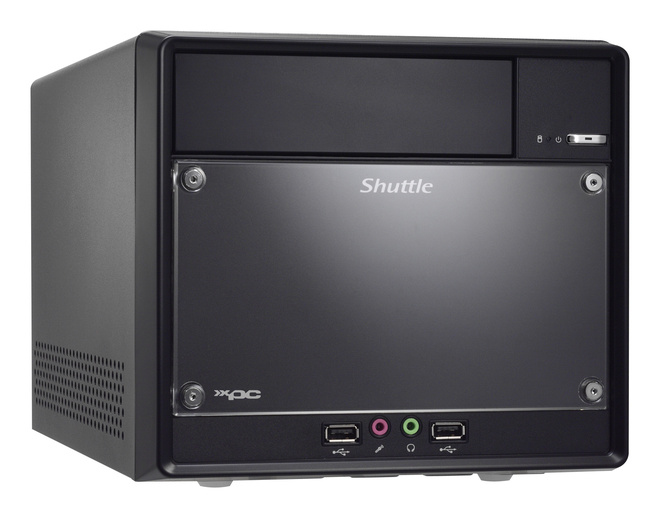

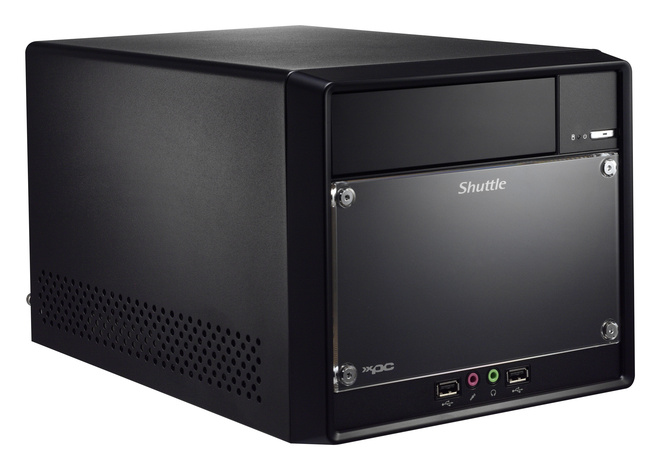

Shuttle XPC R4 6100BA

Model XPC R4 6100BAPart no. R4 6100BAEAN 4046047102365

123 specifications

ProcessorIntel Pentium G
Memory2 GB
Storage320 GB
GraphicsNot available
TypePC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel Pentium G
Memory: 2 GB
Storage: 320 GB
Graphics: Not available
Type: PC
OS: Windows 7 Professional

Brand: Shuttle
Category: PCs/Workstations
Model: XPC R4 6100BA
Part number: R4 6100BA
EAN / UPC: 4046047102365
Also known as: Shuttle XPC R4 6100BA Intel Pentium G G630T 2 GB 320 GB HDD Windows 7 Professional PC Black

Specifications

123 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium G
Processor model	G630T
Processor cores	2
Processor threads	2
Processor frequency	2.3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G600 Series for Desktop
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	35 W
Tcase	65 °C
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	23
Stepping	Q0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066 MHz
Memory bandwidth supported by processor (max)	17 GB/s

Memory

Specification	Value
Internal memory	2 GB
Memory clock speed	1333 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	320 GB
Optical drive type	DVD Super Multi
Storage media	HDD
Number of HDDs installed	1
HDD capacity	320 GB
HDD interface	SATA

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Graphics card family	Intel

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61 Express
Audio output channels	5.1 channels

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Networking features	Gigabit Ethernet

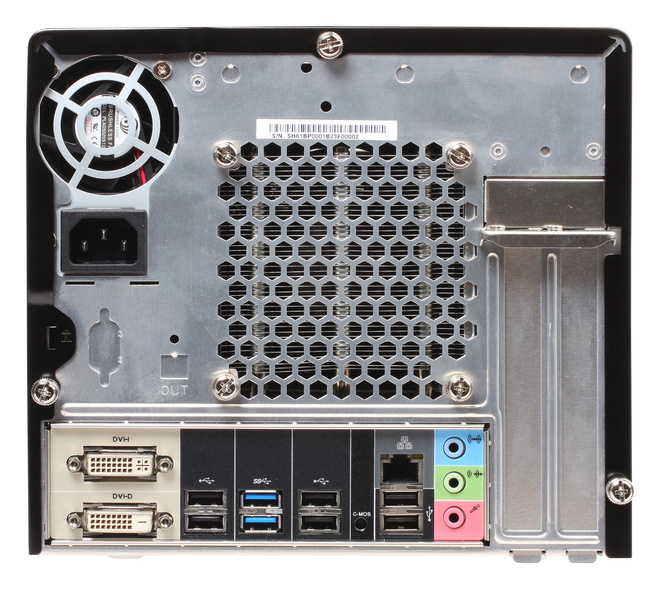

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
S/PDIF out port	Yes
Serial ports quantity	0
Parallel ports quantity	0
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm
USB connector type	USB Type-A

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x1 slots	1
PCI Express x16 slots	1
Mini PCI Express slots	1

Power

Specification	Value
Power supply type	AC
Power supply	250 W
Power supply input voltage	100 - 240 V

Design

Specification	Value
Number of 5.25" bays	1
Product colour	Black
Cooling type	Active
External drive bays	1 x 5.25"
Internal drive bays	2 x 3.5"

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Mac compatibility	No
Drivers included	Yes

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53484
Processor code	SR05U
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No

Audio

Specification	Value
Audio system	HD

Operational conditions

Specification	Value
Operating relative humidity (H-H)	0 - 35%
Relative humidity	10 - 90%

Weight & dimensions

Specification	Value
Width	215 mm
Depth	325 mm
Height	190 mm

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
