PRO DP80 A14G i5 14400 FS 16GB 512GB W11P
Model PRO DP80 A14G i5 14400 FS 16GB 512GB W11PPart no. PRO DP80 A14G I5 14400 FS 16GB 500GB W11PEAN 4711377366625
238 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage512 GB
- GraphicsNot available
- SpeedWi-Fi 6E (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- PRO DP80 A14G i5 14400 FS 16GB 512GB W11P
- Part number
- PRO DP80 A14G I5 14400 FS 16GB 500GB W11P
- EAN / UPC
- 4711377366625
- Also known as
- MSI Pro DP80 A14G Intel Core i5 14400 ( 14th Gen Desktop CPU ), Desktop PC, DP80 A14G, SFF, Mini Computer, HTPC, (16GB RAM, 512GB Storage, Windows 11 ), Intel G
Specifications
238 specifications in 24 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor model | i5-14400 |
| Processor cores | 10 |
| Processor threads | 16 |
| Processor boost frequency | 4.7 GHz |
| Processor frequency | 2.5 GHz |
| Performance cores | 6 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Maximum turbo power | 148 W |
| Processor base power | 65 W |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Copilot+ PC | No |
| Neural processor unit (NPU) | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Buffered memory type | Clocked unregistered (unbuffered) |
| ECC | No |
| Memory channels | Dual-channel |
| Memory data transfer rate | 38.4 MT/s |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total HDDs capacity | 0 GB |
| HDD capacity | 0 GB |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Intel® Optane™ Memory module installed | No |
| Intel® Optane™ Memory module capacity | 0 GB |
| Embedded storage capacity | 0 MB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 730 |
| On-board graphics card cores | 24 |
| On-board graphics card 6K support | No |
| On-board graphics card 8K support | Yes |
| Number of external displays supported | 3 |
| Graphics card Open GL support | Yes |
| AMD FreeSync | No |
| CUDA | No |
| NVIDIA G-SYNC | No |
| NVIDIA GameWorks VR | No |
| Ray tracing acceleration | No |
| Graphics card DVI ports quantity | 0 |
| Graphics card DVI-D ports quantity | 0 |
| Graphics card DVI-I ports quantity | 0 |
| Graphics card DisplayPorts quantity | 1 |
| Graphics card HDMI ports quantity | 1 |
| Graphics card Mini DisplayPort ports quantity | 0 |
| Graphics card VGA (D-Sub) ports quantity | 1 |
| Graphics card USB Type-C ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Business |
| Powered by | MSI |
| Virtual Reality (VR) ready | No |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | micro ATX |
| Compatible processor series | Intel Core i5 14th Gen |
| Password protection | Yes |
| Password protection type | BIOS, HDD |
| Fingerprint reader | No |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 7.1 channels |
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| LAN controller | Intel® I219-V, Intel I226-V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.3 |
| Wake-on-LAN ready | Yes |
| Miracast | Yes |

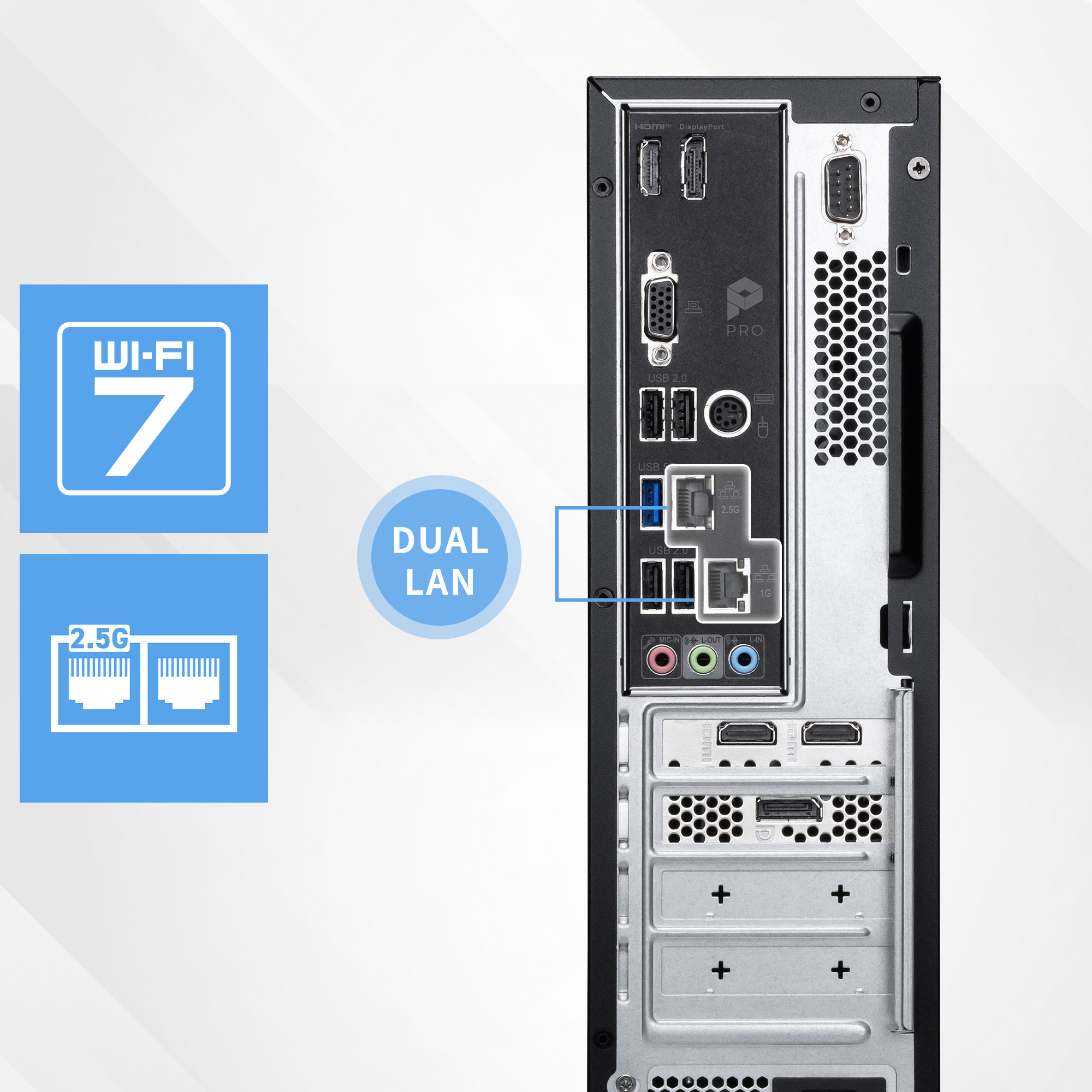

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| USB4 Gen 2x2 ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 0 |
| Number of USB ports with PowerShare support | 1 |
| PowerShare | Yes |
| USB Type-C DisplayPort Alternate Mode | No |
| Thunderbolt 3 ports quantity | 0 |
| Intel® Thunderbolt 4 | No |
| Intel® Thunderbolt 5 | No |
| Thunderbolt 4 ports quantity | 0 |
| Thunderbolt 5 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | No |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| Mini DisplayPorts quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| eSATA ports quantity | 0 |
| S/PDIF out port | No |
| DC-in jack | No |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
| Fiber NIC port (Flex I/O) | No |
| Number of front USB ports | 3 |
| Number of front audio ports | 2 |
| Number of rear USB ports | 6 |
| Number of rear audio ports | 3 |
| Number of side USB ports | 0 |
| Total number of SATA connectors | 4 |
| Number of SATA III connectors | 4 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
| PCI Express x1 slots | 1 |
| PCI Express x1 (Gen 1.x) slots | 0 |
| PCI Express x1 (Gen 2.x) slots | 0 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 0 |
| PCI Express x4 slots | 0 |
| PCI Express x4 (Gen 1.x) slots | 0 |
| PCI Express x4 (Gen 2.x) slots | 0 |
| PCI Express x4 (Gen 3.x) slots | 0 |
| PCI Express x4 (Gen 4.x) slots | 0 |
| PCI Express x8 slots | 0 |
| PCI Express x8 (Gen 1.x) slots | 0 |
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x8 (Gen 4.x) slots | 0 |
| PCI Express x16 slots | 1 |
| PCI Express x16 (Gen 1.x) slots | 0 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 0 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 0 |
| Mini PCI Express slots | 0 |
| PCI slots | 0 |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Power consumption (max) | 219 W |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Colour name | Black |
| Placement supported | Vertical |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Liquid cooling system | No |
| Copilot key | No |
| Product colour | Black |
| Housing material | Metal, Steel |
| Introduction month | June |
| Introduction year | 2025 |
| RGB memory lighting | No |
| Viewing window | No |
| Country of origin | China |
| Refurbished | No |
| Certified refurbished | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Operating system language | English |
| Windows 11 free upgrade | No |
| Apple Intelligence | No |
| Drivers included | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Video decode engine | Yes |
| Video encode engine | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC897 |
| Audio system | High Definition Audio |
| Number of speakers | 0 |
| Built-in microphone | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 2000 m |
| Non-operating altitude | 0 - 12000 m |
| Operating vibration | 0.21 G |
| Non-operating vibration | 2 G |
| Operating shock | 10 G |
| Non-operating shock | 40 G |

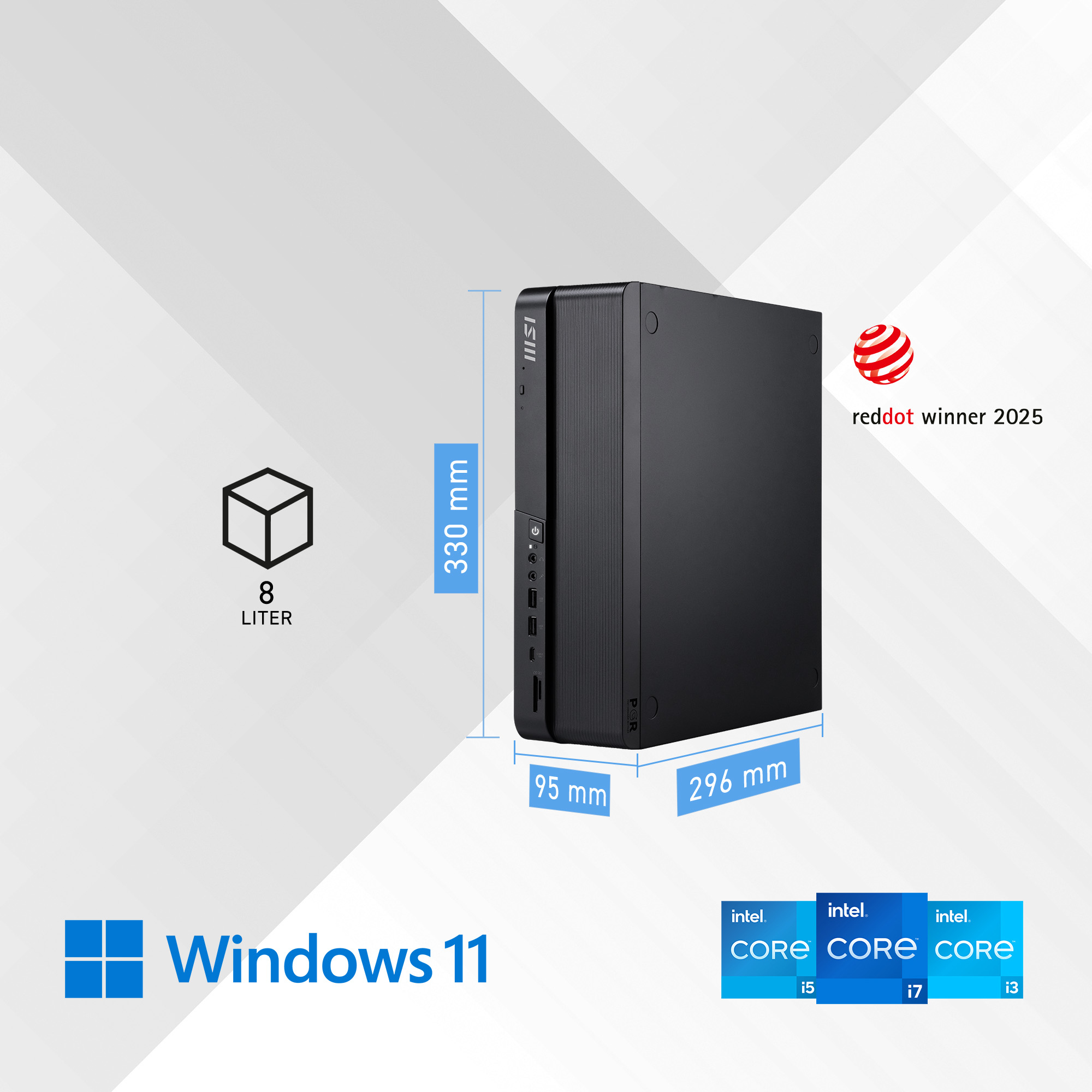

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 296 mm |
| Height | 330 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 561 mm |
| Package depth | 234 mm |
| Package height | 402 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| Numeric keypad | No |
| Cables included | AC |
| VESA mount included | No |
| Screws included | No |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Low halogen | No |
| PSTI certified | No |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Keyboard
| Specification | Value |
|---|---|
| Keyboard backlit | No |
Multimedia
| Specification | Value |
|---|---|
| Video compression formats | H.264, H.265 |
Technical details
| Specification | Value |
|---|---|
| Not classified as hazardous under GHS | Yes |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Locale | English |
| Warranty period | 3 year(s) |
