Product comparison · 2 pcs/workstations

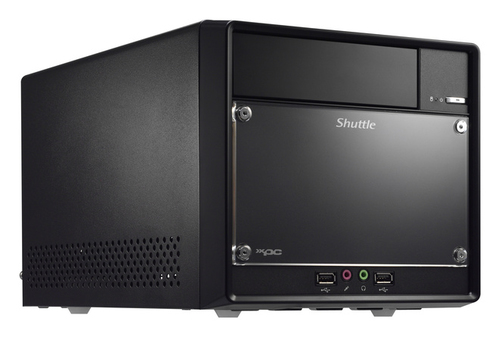

HP Pavilion p6-2078it Intel® Core™ i3 i3-2120 vs Shuttle XPC R4 6100BA

104specifications compared
37differ
67identical
48known for one product only

Key differences

Processor family
- Pavilion p6-2078it Intel® Core™ i3 i3-2120:Intel® Core™ i3
- XPC R4 6100BA:Intel Pentium G
Processor model
- Pavilion p6-2078it Intel® Core™ i3 i3-2120:i3-2120
- XPC R4 6100BA:G630T
Processor threads
- Pavilion p6-2078it Intel® Core™ i3 i3-2120:4
- XPC R4 6100BA:2
Processor frequency
- Pavilion p6-2078it Intel® Core™ i3 i3-2120:3.3 GHz
- XPC R4 6100BA:2.3 GHz
Thermal Design Power (TDP)
- Pavilion p6-2078it Intel® Core™ i3 i3-2120:65 W
- XPC R4 6100BA:35 W
Tcase
- Pavilion p6-2078it Intel® Core™ i3 i3-2120:69.1 °C
- XPC R4 6100BA:65 °C
CPU multiplier (bus/core ratio)
- Pavilion p6-2078it Intel® Core™ i3 i3-2120:33
- XPC R4 6100BA:23
Memory types supported by processor
- Pavilion p6-2078it Intel® Core™ i3 i3-2120:DDR3 1066/1333
- XPC R4 6100BA:DDR3-SDRAM

Side by side

Differences highlightedShow differences only

Comparison of p6-2078it, XPC R4 6100BA
152 specifications	A HP Pavilion p6-2078it Intel® Core™ i3 i3-2120 Model p6-2078it View product	B Shuttle XPC R4 6100BA View product
Processor10 differ
Processor manufacturer	Intel	Intel
Processor familyDiffers	Intel® Core™ i3	Intel Pentium G
Processor generationKnown for one	2nd gen Intel® Core™ i3	Unknown — not stated by the source
Processor modelDiffers	i3-2120	G630T
Processor cores	2	2
Processor threadsDiffers	4	2
Processor frequencyDiffers	3.3 GHz	2.3 GHz
Processor cache	3 MB	3 MB
Processor cache type	Smart Cache	Smart Cache
Bus type	DMI	DMI
FSB ParityKnown for one	No	Unknown — not stated by the source
System bus rate	5 GT/s	5 GT/s
Processor lithography	32 nm	32 nm
Processor operating modes	64-bit	64-bit
Processor seriesDiffers	Intel Core i3-2100 Desktop Series	Intel Pentium G600 Series for Desktop
Processor codename	Sandy Bridge	Sandy Bridge
Thermal Design Power (TDP)Differs	65 W	35 W
TcaseDiffers	69.1 °C	65 °C
Maximum number of PCI Express lanesKnown for one	16	Unknown — not stated by the source
PCI Express slots version	2.0	2.0
Number of processors installed	1	1
Processor socket	LGA 1155 (Socket H2)	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)Differs	33	23
Maximum number of SMP processorsKnown for one	1	Unknown — not stated by the source
PlatformKnown for one	PC	Unknown — not stated by the source
Maximum internal memory supported by processor	32 GB	32 GB
Memory types supported by processorDiffers	DDR3 1066/1333	DDR3-SDRAM
Memory bandwidth supported by processor (max)Differs	21 GB/s	17 GB/s
ECC supported by processorKnown for one	No	Unknown — not stated by the source
SteppingKnown for one	Unknown — not stated by the source	Q0
Memory clock speeds supported by processorKnown for one	Unknown — not stated by the source	1066 MHz
Memory1 differ
Internal memoryDiffers	6 GB	2 GB
Maximum internal memoryKnown for one	8 GB	Unknown — not stated by the source
Internal memory typeKnown for one	DDR3-SDRAM	Unknown — not stated by the source
Memory layout (slots x size)Known for one	1 x 2 + 1 x 4 GB	Unknown — not stated by the source
Memory slotsKnown for one	2x DIMM	Unknown — not stated by the source
Memory clock speed	1333 MHz	1333 MHz
Memory channels	Dual-channel	Dual-channel
Storage2 differ
Total storage capacityDiffers	2 TB	320 GB
Optical drive type	DVD Super Multi	DVD Super Multi
HDD interfaceDiffers	SATA II	SATA
HDD speedKnown for one	7200 RPM	Unknown — not stated by the source
Card reader integratedKnown for one	Yes	Unknown — not stated by the source
Compatible memory cardsKnown for one	Memory Stick (MS), miniSD, MMC, MMC+, MS Duo, MS PRO, MS PRO Duo, SD, xD	Unknown — not stated by the source
Storage mediaKnown for one	Unknown — not stated by the source	HDD
Number of HDDs installedKnown for one	Unknown — not stated by the source	1
HDD capacityKnown for one	Unknown — not stated by the source	320 GB
Graphics4 differ
On-board graphics card	Yes	Yes
Discrete graphics card modelDiffers	AMD Radeon HD 6350	Not available
Discrete graphics card memoryKnown for one	0.512 GB	Unknown — not stated by the source
On-board graphics card family	Intel® HD Graphics	Intel® HD Graphics
On-board graphics card modelDiffers	Intel® HD Graphics 2000	Intel® HD Graphics
Number of displays supported (on-board graphics)	2	2
On-board graphics card base frequencyDiffers	850 MHz	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz	1100 MHz
On-board graphics card IDKnown for one	0x102	Unknown — not stated by the source
Graphics card familyDiffers	ATI, Intel	Intel
Performance1 differ
Product type	PC	PC
Motherboard chipsetDiffers	Intel® H61	Intel® H61 Express
Audio output channels	5.1 channels	5.1 channels
Built-in speaker(s)Known for one	Yes	Unknown — not stated by the source
Networkidentical
Ethernet LAN	Yes	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)	10/100/1000Base-T(X)
Wi-Fi	No	No
Ethernet interface type	Gigabit Ethernet	Gigabit Ethernet
Networking features	Gigabit Ethernet	Gigabit Ethernet
Ports & interfaces3 differ
USB 2.0 ports quantityDiffers	6	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantityDiffers	0	2
HDMI ports quantity	0	0
Ethernet LAN (RJ-45) ports	1	1
Headphone outputs	1	1
Line-out	Yes	Yes
Line-in	Yes	Yes
Microphone in	Yes	Yes
VGA (D-Sub) ports quantityDiffers	1	0
DVI port	Yes	Yes
PS/2 ports quantity	0	0
Firewire (IEEE 1394) ports	0	0
Serial ports quantity	0	0
Parallel ports quantity	0	0
Headphone connectivity	3.5 mm	3.5 mm
Microphone connectivity	3.5 mm	3.5 mm
S/PDIF out portKnown for one	Unknown — not stated by the source	Yes
USB connector typeKnown for one	Unknown — not stated by the source	USB Type-A
Expansion slots2 differ
Number of 3.5" baysDiffers	1	2
PCI Express x1 slotsDiffers	3	1
PCI Express x16 slots	1	1
Mini PCI Express slots	1	1
Power2 differ
Power supply typeDiffers	AC/DC	AC
Power supplyDiffers	300 W	250 W
Power supply input voltage	100 - 240 V	100 - 240 V
Power supply input frequencyKnown for one	50 - 60 Hz	Unknown — not stated by the source
Designidentical
Chassis typeKnown for one	Mini Tower	Unknown — not stated by the source
Number of 5.25" bays	1	1
Product colour	Black	Black
Country of originKnown for one	China	Unknown — not stated by the source
Cooling typeKnown for one	Unknown — not stated by the source	Active
External drive baysKnown for one	Unknown — not stated by the source	1 x 5.25"
Internal drive baysKnown for one	Unknown — not stated by the source	2 x 3.5"
Displayidentical
Display included	No	No
Processor special features8 differ
CPU configuration (max)	1	1
Embedded options availableDiffers	Yes	No
Enhanced Intel SpeedStep Technology	Yes	Yes
Execute Disable Bit	Yes	Yes
Idle States	Yes	Yes
Intel 64	Yes	Yes
Intel Clear Video TechnologyKnown for one	No	Unknown — not stated by the source
Intel Demand Based SwitchingKnown for one	No	Unknown — not stated by the source
Intel Dual Display Capable Technology	Yes	Yes
Intel Enhanced Halt State	Yes	Yes
Intel FDI Technology	Yes	Yes
Intel Fast Memory Access	Yes	Yes
Intel Flex Memory Access	Yes	Yes
Intel Identity Protection Technology versionKnown for one	1.00	Unknown — not stated by the source
Intel Rapid Storage TechnologyKnown for one	No	Unknown — not stated by the source
Intel Trusted Execution Technology	No	No
Intel VT-x with Extended Page Tables (EPT)	Yes	Yes
Intel Virtualization Technology (VT-x)	Yes	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No	No
Intel® AES New Instructions (Intel® AES-NI)	No	No
Intel® Clear Video HD Technology (Intel® CVT HD)Differs	Yes	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Known for one	No	Unknown — not stated by the source
Intel® InTru™ 3D TechnologyDiffers	Yes	No
Intel® Insider™Differs	Yes	No
Intel® Wireless Display (Intel® WiDi)	No	No
Processor ARK IDDiffers	53426	53484
Processor package size	37.5 x 37.5 mm	37.5 x 37.5 mm
Supported instruction setsDiffers	AVX	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes	Yes
Intel® Turbo Boost Technology	No	No
Intel® Hyper Threading Technology (Intel® HT Technology)Differs	Yes	No
Intel® Quick Sync Video TechnologyDiffers	Yes	No
Intel® My WiFi Technology (Intel® MWT)Known for one	No	Unknown — not stated by the source
Intel® Identity Protection Technology (Intel® IPT)Known for one	Yes	Unknown — not stated by the source
Intel® Anti-Theft Technology (Intel® AT)Known for one	No	Unknown — not stated by the source
Conflict-Free processorKnown for one	No	Unknown — not stated by the source
Processor codeKnown for one	Unknown — not stated by the source	SR05U
Audioidentical
Audio system	HD	HD
Weight & dimensions3 differ
WidthDiffers	165 mm	215 mm
DepthDiffers	389 mm	325 mm
HeightDiffers	368 mm	190 mm
WeightKnown for one	8 kg	Unknown — not stated by the source
Packaging content1 differ
Keyboard includedDiffers	Yes	No
Mouse includedKnown for one	Unknown — not stated by the source	No
Optical driveidentical
Optical drives quantityKnown for one	Unknown — not stated by the source	1
Softwareidentical
Operating system installedKnown for one	Unknown — not stated by the source	Windows 7 Professional
Operating system architectureKnown for one	Unknown — not stated by the source	64-bit
Mac compatibilityKnown for one	Unknown — not stated by the source	No
Drivers includedKnown for one	Unknown — not stated by the source	Yes
Operational conditionsidentical
Operating relative humidity (H-H)Known for one	Unknown — not stated by the source	0 - 35%
Relative humidityKnown for one	Unknown — not stated by the source	10 - 90%

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
