Cubi NUC AI+ 2MG i7 258V FS 32GB 1TB W11PP
Model Cubi NUC AI+ 2MG i7 258V FS 32GB 1TB W11PPPart no. CUBI NUC AI+ 2MG I7 258V FS 32GB 1TB W11PPEAN 4711377358064
238 specifications
- ProcessorIntel Core Ultra 7
- Memory32 GB
- Storage1 TB
- GraphicsNot available
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel Core Ultra 7
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- Not available
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- Cubi NUC AI+ 2MG i7 258V FS 32GB 1TB W11PP
- Part number
- CUBI NUC AI+ 2MG I7 258V FS 32GB 1TB W11PP
- EAN / UPC
- 4711377358064
- Also known as
- MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Desktop PC, NUC, SFF, Mini Computer, HTPC, (32GB RAM, 1TB Storage, Windows 11 PRO NextGen Premium), Intel Arc Grap
Specifications
238 specifications in 23 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 258V |
| Processor cores | 8 |
| Processor threads | 4 |
| Processor boost frequency | 4.8 GHz |
| Processor frequency | 2.2 GHz |
| Performance cores | 4 |
| Efficient cores | 0 |
| Low Power Efficient-cores | 4 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 3.7 GHz |
| Performance-core base frequency | 2.2 GHz |
| Low Power Efficient-core Base Frequency | 2.2 MHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Maximum turbo power | 37 W |
| Processor base power | 17 W |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Copilot+ PC | No |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI datatype support on NPU | FP16, Int8 |
| AI software frameworks supported by NPU | ONNX RT, OpenVINO |
| Total processor performance up to | 34 TOPs |
| NPU performance up to | 10 TOPs |
| GPU performance up to | 15 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 96 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 1x SO-DIMM |
| Memory clock speed | 7467 MHz |
| Buffered memory type | Clocked unregistered (unbuffered) |
| ECC | No |
| Memory channels | Dual-channel |
| Memory data transfer rate | 7467 MT/s |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 1 |
| Total HDDs capacity | 0 GB |
| Number of HDDs installed | 0 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Card reader integrated | No |
| Intel® Optane™ Memory module installed | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| Number of discrete graphics cards | 0 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics |
| On-board graphics card cores | 8 |
| On-board graphics card 6K support | Yes |
| On-board graphics card 8K support | Yes |
| Number of external displays supported | 4 |
| Graphics card Open GL support | Yes |
| AMD FreeSync | Yes |
| CUDA | No |
| NVIDIA G-SYNC | No |
| NVIDIA GameWorks VR | No |
| Ray tracing acceleration | Yes |
| Graphics card DVI ports quantity | 0 |
| Graphics card DVI-D ports quantity | 0 |
| Graphics card DVI-I ports quantity | 0 |
| Graphics card DisplayPorts quantity | 0 |
| Graphics card HDMI ports quantity | 0 |
| Graphics card Mini DisplayPort ports quantity | 0 |
| Graphics card VGA (D-Sub) ports quantity | 0 |
| Graphics card USB Type-C ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Business |
| Powered by | MSI |
| Virtual Reality (VR) ready | No |
| Motherboard form factor | NUC |
| Password protection | Yes |
| Password protection type | BIOS |
| Fingerprint reader | No |
| BIOS type | UEFI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 2.0 channels |
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel I226-V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.3 |
| Wake-on-LAN ready | Yes |
| Miracast | Yes |

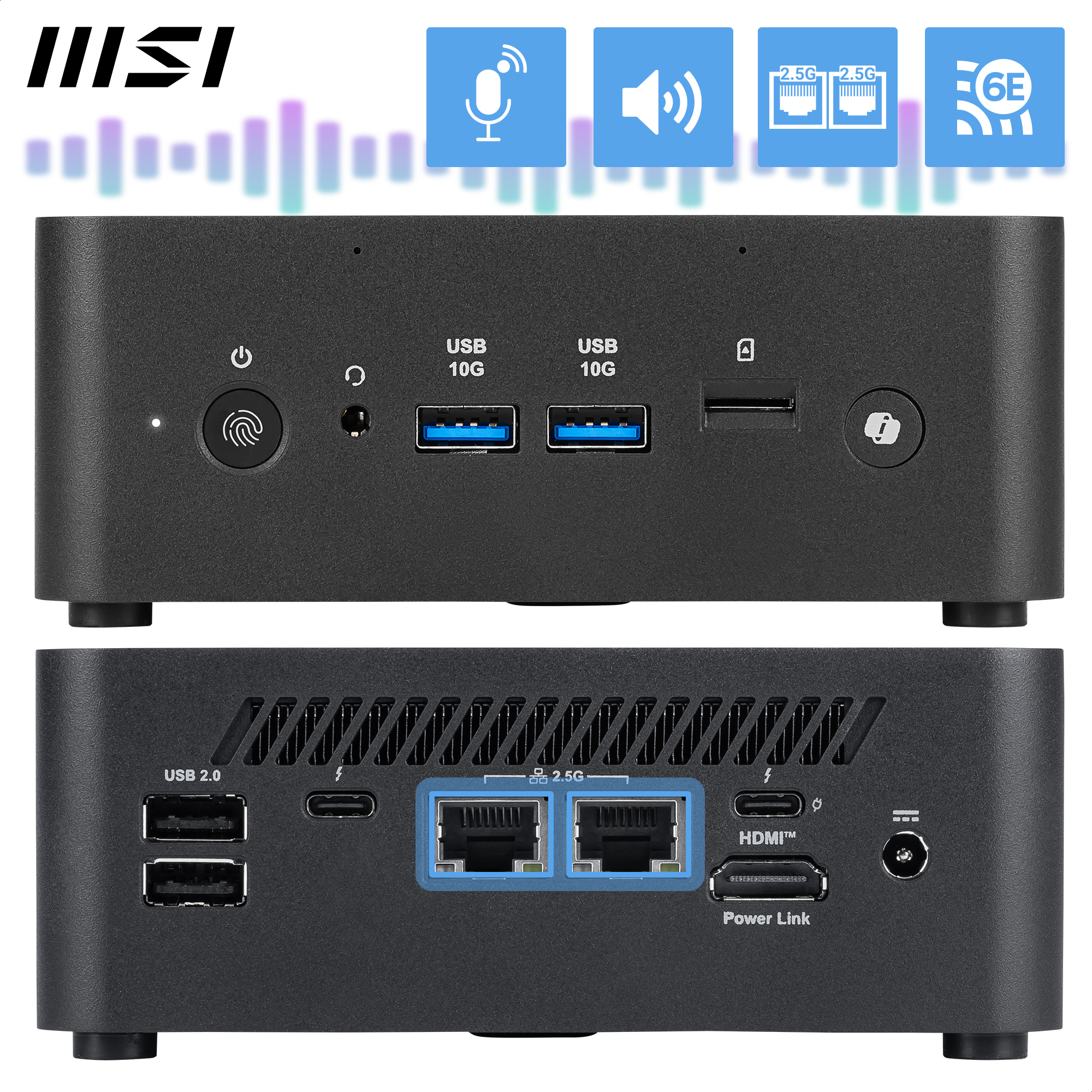

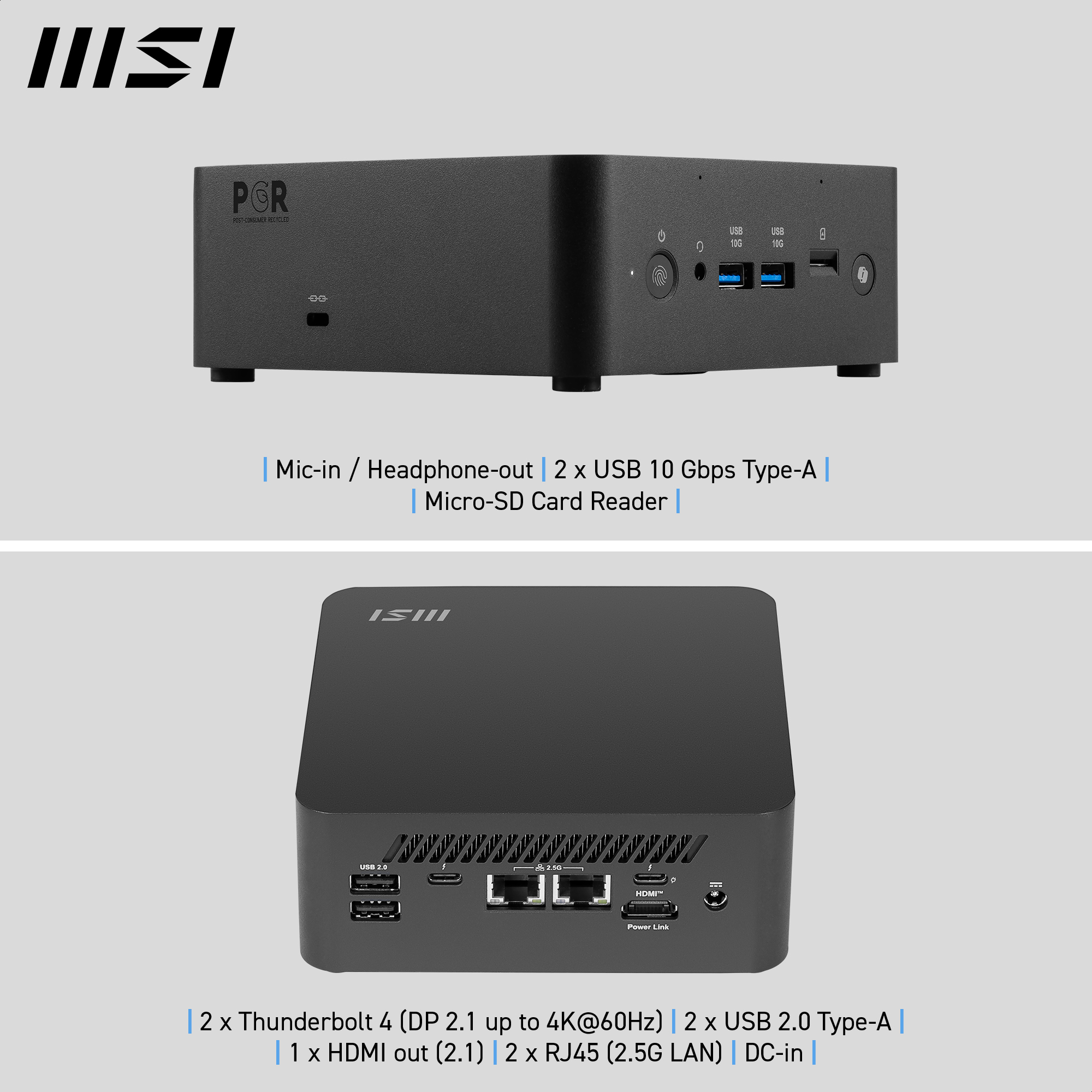

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| USB4 Gen 2x2 ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 0 |
| Number of USB ports with PowerShare support | 1 |
| PowerShare | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 3 ports quantity | 0 |
| Intel® Thunderbolt 4 | Yes |
| Intel® Thunderbolt 5 | No |
| Thunderbolt 4 ports quantity | 2 |
| Thunderbolt 5 ports quantity | 0 |
| DisplayPorts quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Line-out | No |
| Line-in | No |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| Mini DisplayPorts quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| eSATA ports quantity | 0 |
| S/PDIF out port | No |
| DC-in jack | No |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
| Fiber NIC port (Flex I/O) | No |
| Number of front USB ports | 2 |
| Number of front audio ports | 1 |
| Number of rear USB ports | 2 |
| Number of rear audio ports | 0 |
| Number of side USB ports | 0 |
| Total number of SATA connectors | 0 |
| Number of SATA III connectors | 0 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
| PCI Express x1 slots | 1 |
| PCI Express x1 (Gen 1.x) slots | 0 |
| PCI Express x1 (Gen 2.x) slots | 0 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 0 |
| PCI Express x4 slots | 0 |
| PCI Express x4 (Gen 1.x) slots | 0 |
| PCI Express x4 (Gen 2.x) slots | 0 |
| PCI Express x4 (Gen 3.x) slots | 0 |
| PCI Express x4 (Gen 4.x) slots | 0 |
| PCI Express x8 slots | 0 |
| PCI Express x8 (Gen 1.x) slots | 0 |
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x8 (Gen 4.x) slots | 0 |
| PCI Express x16 slots | 1 |
| PCI Express x16 (Gen 1.x) slots | 0 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 0 |
| PCI Express x16 (Gen 5.x) slots | 0 |
| Mini PCI Express slots | 0 |
| PCI slots | 0 |
Power
| Specification | Value |
|---|---|
| Power supply | 120 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Colour name | black |
| Placement supported | Horizontal/Vertical |

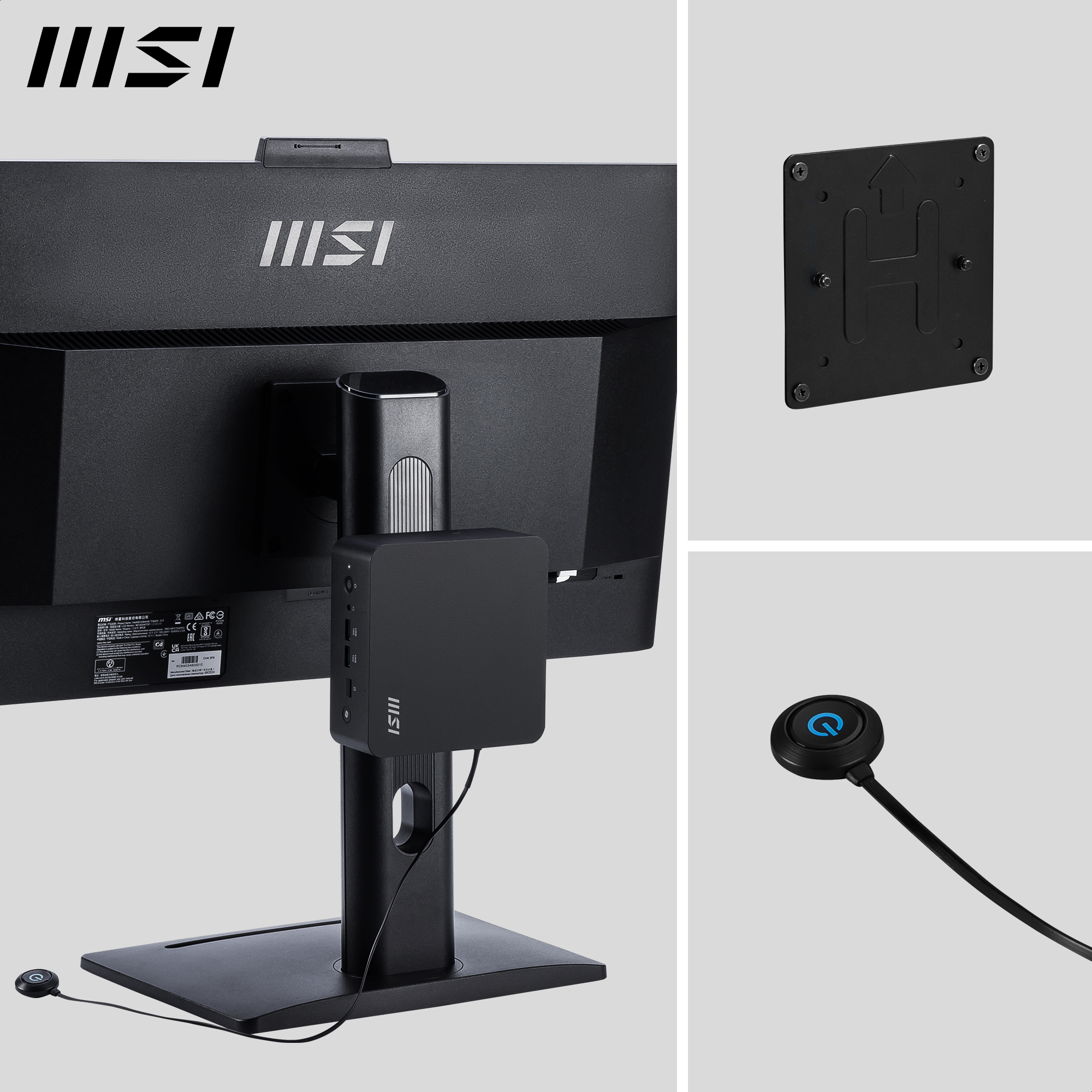

| VESA mounting | Yes |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 1 |
| Cable lock slot | No |
| Cable lock slot type | Kensington |
| Liquid cooling system | No |
| Copilot key | No |
| Product colour | Black |
| Housing material | Metal, Plastic |
| Introduction month | June |
| Introduction year | 2025 |
| RGB memory lighting | No |
| Viewing window | No |
| Country of origin | China |
| Refurbished | No |
| Certified refurbished | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Operating system language | English |
| Windows 11 free upgrade | No |
| Apple Intelligence | No |
| Drivers included | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Video decode engine | Yes |
| Video encode engine | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC256 |
| Audio system | High Definition Audio |
| Number of speakers | 2 |
| Built-in microphone | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |

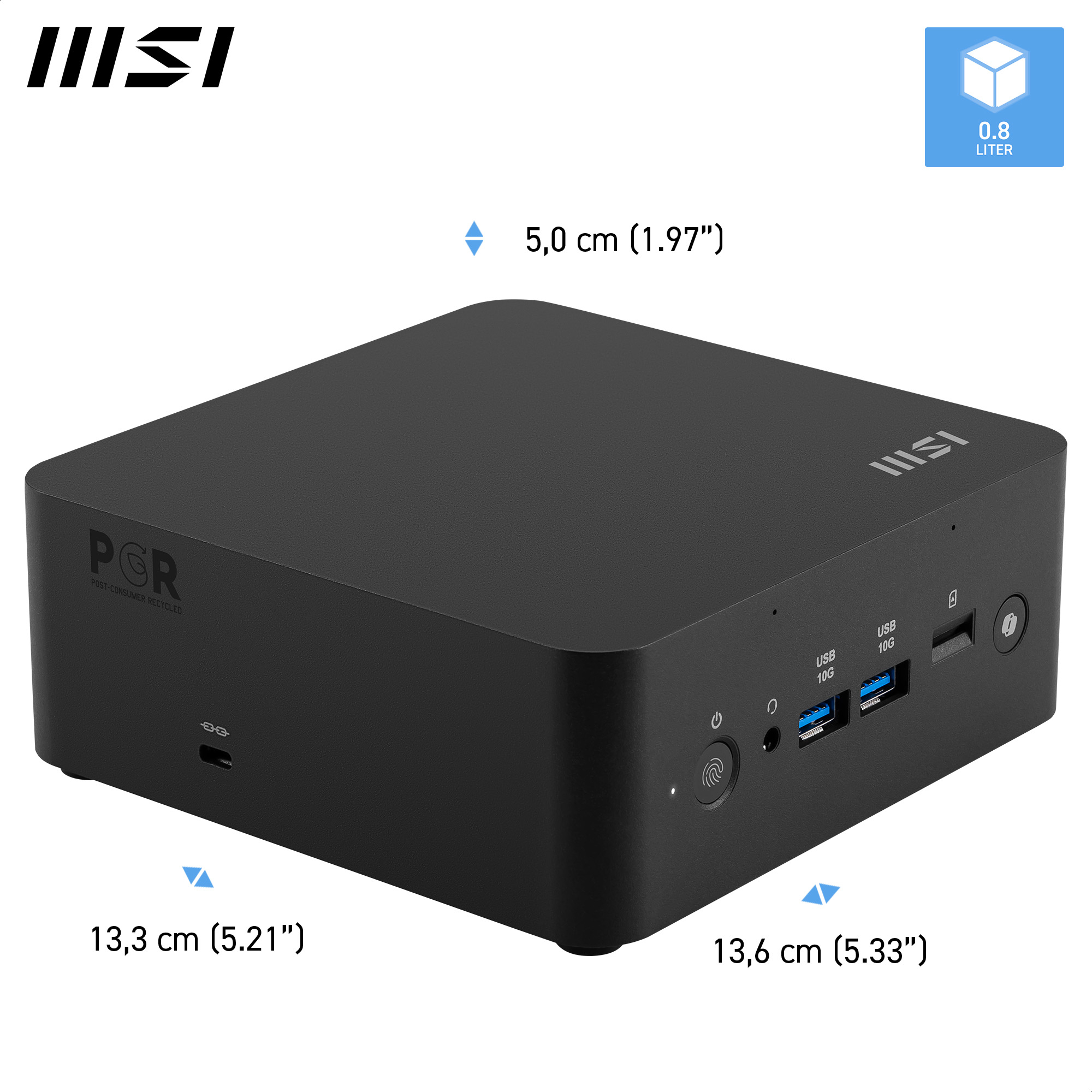

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 135.6 mm |
| Depth | 132.5 mm |
| Height | 50.1 mm |
| Weight | 630 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.38 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| Numeric keypad | No |
| Cables included | AC |
| VESA mount included | Yes |
| Screws included | Yes |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CB, Federal Communications Commission (FCC) |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Keyboard
| Specification | Value |
|---|---|
| Keyboard backlit | No |
Technical details
| Specification | Value |
|---|---|
| Not classified as hazardous under GHS | Yes |
| Statement of conformance & platform certificate included | Yes |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Locale | English |
| Warranty period | 3 year(s) |
