PRO DP180 14A i5 14400 FS 16GB 512GB W11P
Model PRO DP180 14A i5 14400 FS 16GB 512GB W11PPart no. PRO DP180 14A I5 14400 FS 16GB 500GB W11PEAN 4711377366175
204 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage512 GB
- GraphicsNot available
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- PRO DP180 14A i5 14400 FS 16GB 512GB W11P
- Part number
- PRO DP180 14A I5 14400 FS 16GB 500GB W11P
- EAN / UPC
- 4711377366175
- Also known as
- MSI Pro DP180 14A Intel Core 5 14400, Desktop PC, DP180 14A, SFF, Mini Computer, HTPC, (16GB RAM, 512GB Storage, Windows 11 ), Intel Graphics/DDR5/Dual HDMI/Dua
Specifications
204 specifications in 22 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor model | i5-14400 |
| Processor cores | 10 |
| Processor threads | 16 |
| Processor boost frequency | 4.7 GHz |
| Processor frequency | 2.5 GHz |
| Performance cores | 6 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Maximum turbo power | 148 W |
| Processor base power | 65 W |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Copilot+ PC | No |
| Neural processor unit (NPU) | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Buffered memory type | Clocked unregistered (unbuffered) |
| ECC | No |
| Memory channels | Dual-channel |
| Memory data transfer rate | 5600 MT/s |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 1 |
| Total HDDs capacity | 0 GB |
| Number of HDDs installed | 0 |
| SSD capacity | 512 GB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |

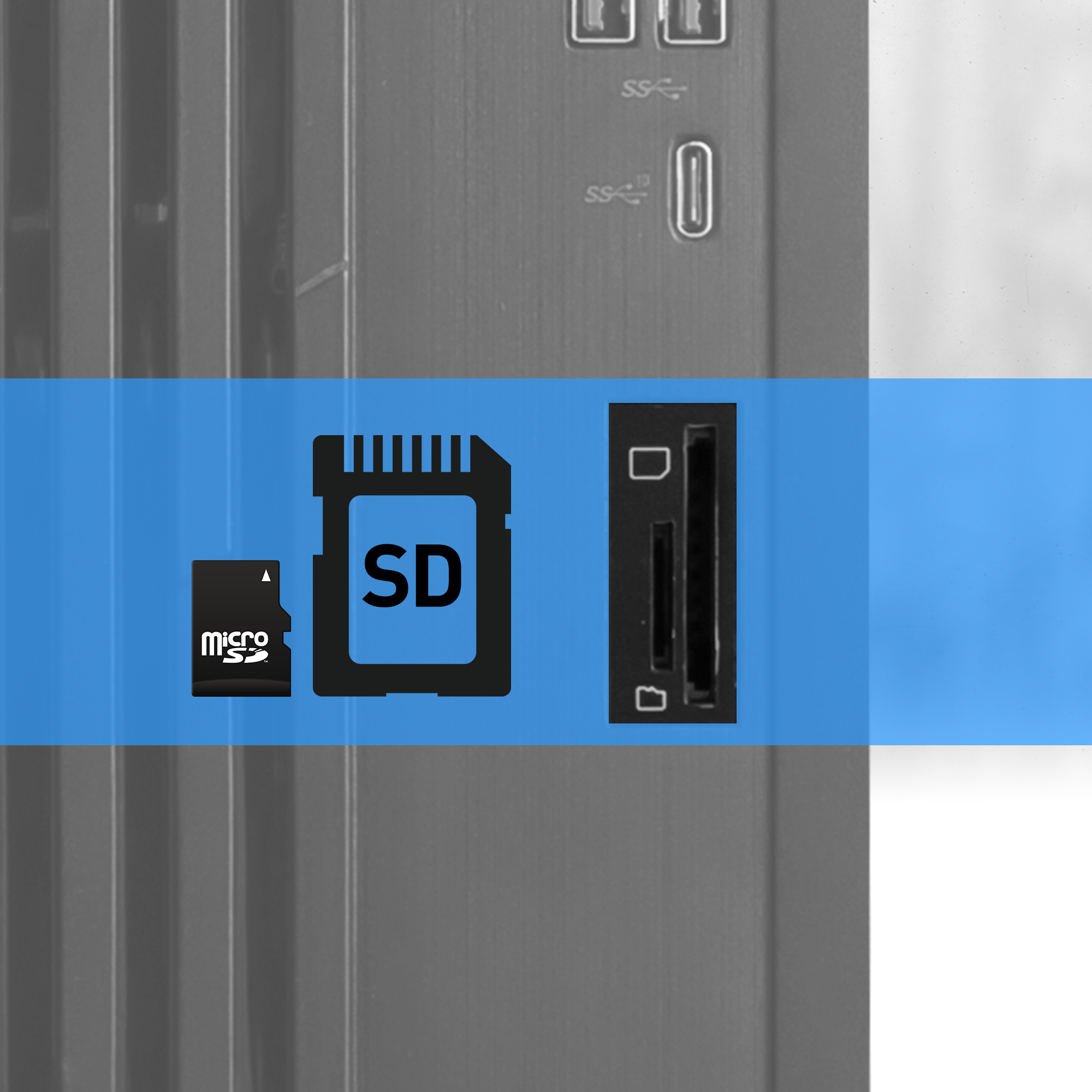

| Card reader integrated | No |
| Intel® Optane™ Memory module installed | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| Discrete graphics card memory | 0 GB |
| Number of discrete graphics cards | 0 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 730 |
| On-board graphics card cores | 24 |
| On-board graphics card 6K support | No |
| On-board graphics card 8K support | Yes |
| Number of external displays supported | 3 |
| Graphics card Open GL support | Yes |
| AMD FreeSync | No |
| CUDA | No |
| NVIDIA G-SYNC | No |
| NVIDIA GameWorks VR | No |
| Ray tracing acceleration | No |
| Graphics card DVI ports quantity | 0 |
| Graphics card DVI-D ports quantity | 0 |
| Graphics card DVI-I ports quantity | 0 |
| Graphics card DisplayPorts quantity | 1 |
| Graphics card HDMI ports quantity | 1 |
| Graphics card Mini DisplayPort ports quantity | 0 |
| Graphics card VGA (D-Sub) ports quantity | 0 |
| Graphics card USB Type-C ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Business |
| Powered by | MSI |
| Virtual Reality (VR) ready | No |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | micro ATX |
| Compatible processor series | Intel Core i5 14th Gen |
| Audio output channels | 7.1 channels |
| Built-in speaker(s) | No |

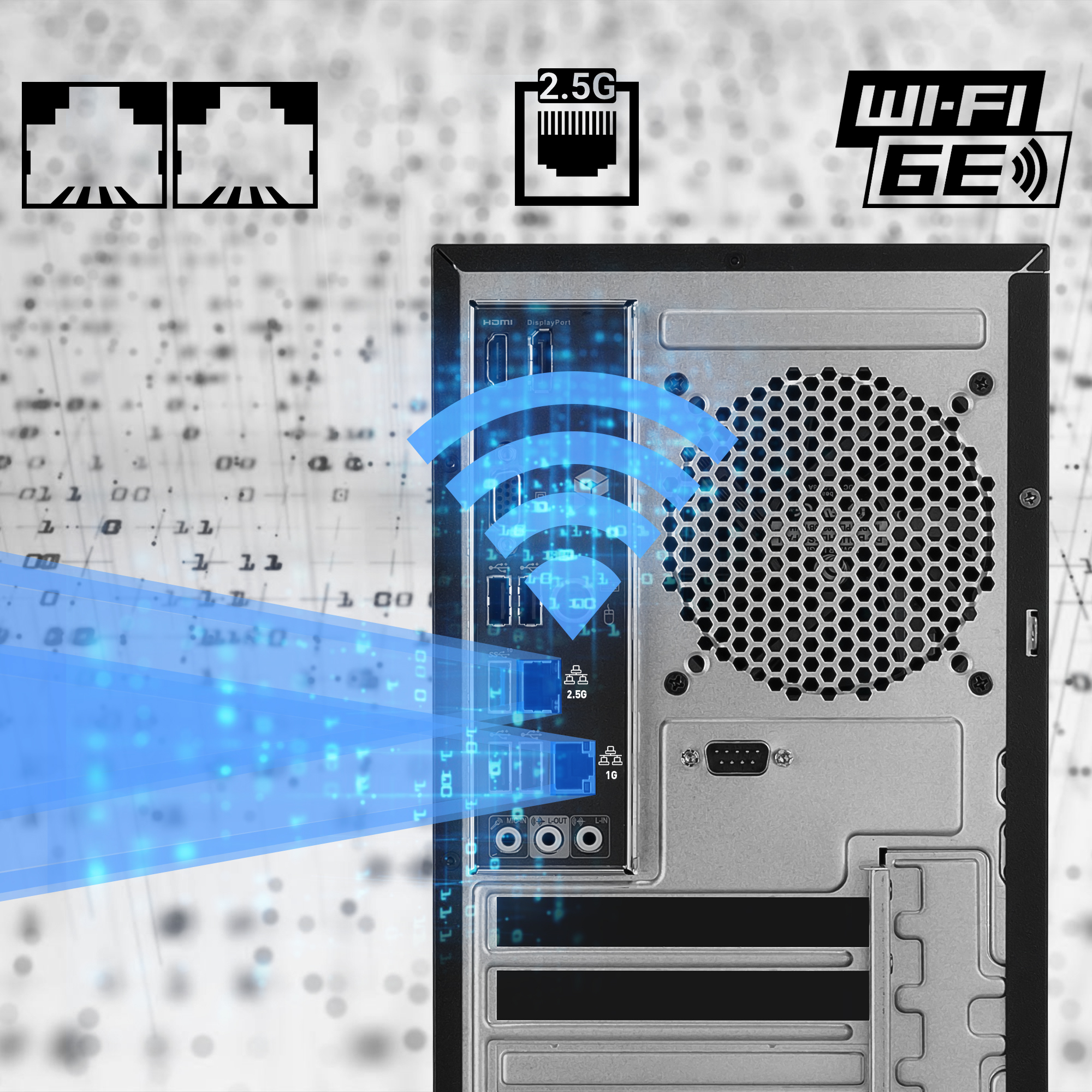

Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.3 |
| Wake-on-LAN ready | Yes |
| Miracast | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |

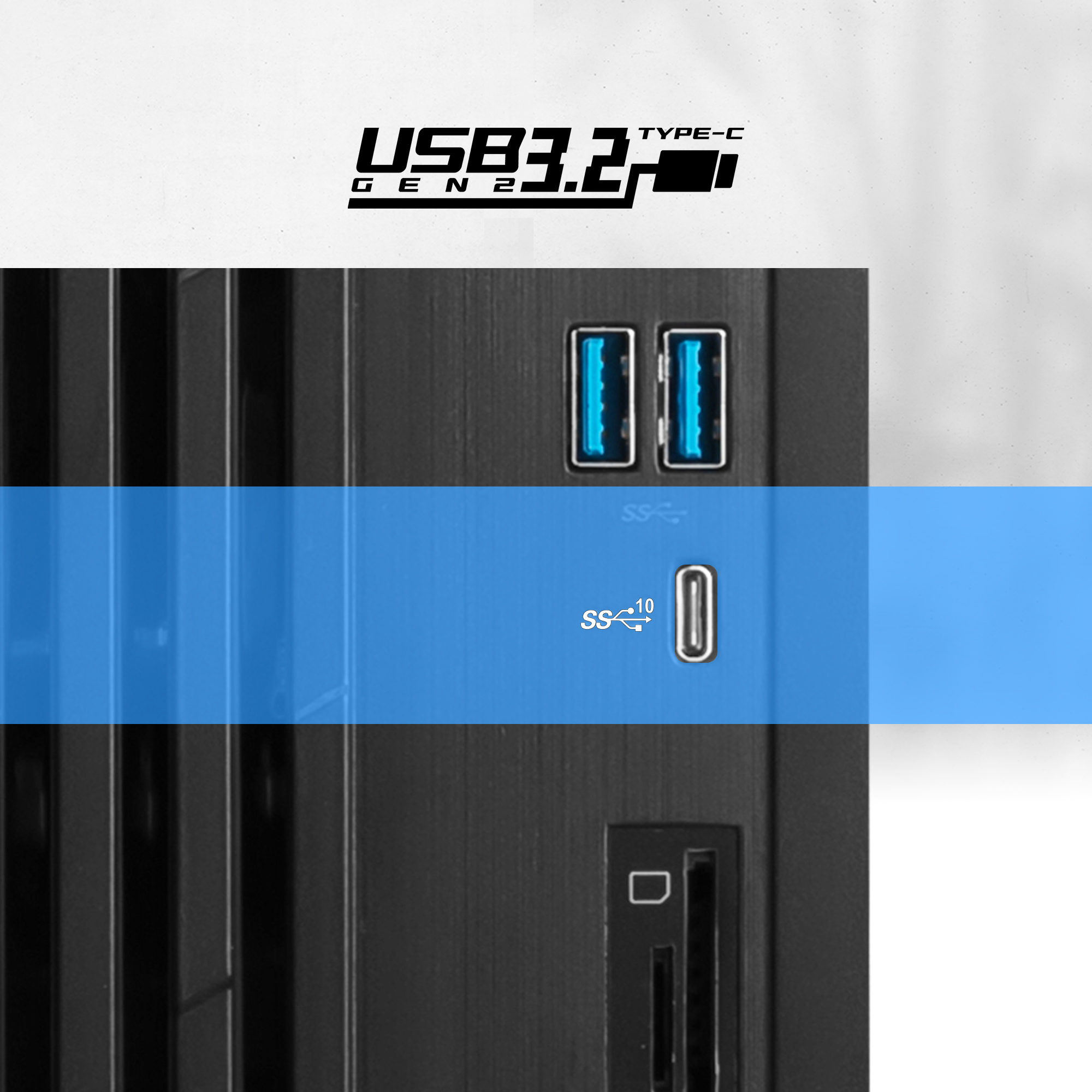

| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| USB4 Gen 2x2 ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 0 |
| Number of USB ports with PowerShare support | 0 |
| PowerShare | No |
| USB Type-C DisplayPort Alternate Mode | No |
| Thunderbolt 3 ports quantity | 0 |
| Intel® Thunderbolt 4 | No |
| Intel® Thunderbolt 5 | No |
| Thunderbolt 4 ports quantity | 0 |
| Thunderbolt 5 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | No |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| Mini DisplayPorts quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| eSATA ports quantity | 0 |
| S/PDIF out port | No |
| DC-in jack | No |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
| Fiber NIC port (Flex I/O) | No |
| Number of front USB ports | 3 |
| Number of front audio ports | 2 |
| Number of rear USB ports | 5 |
| Number of rear audio ports | 3 |
| Number of side USB ports | 0 |

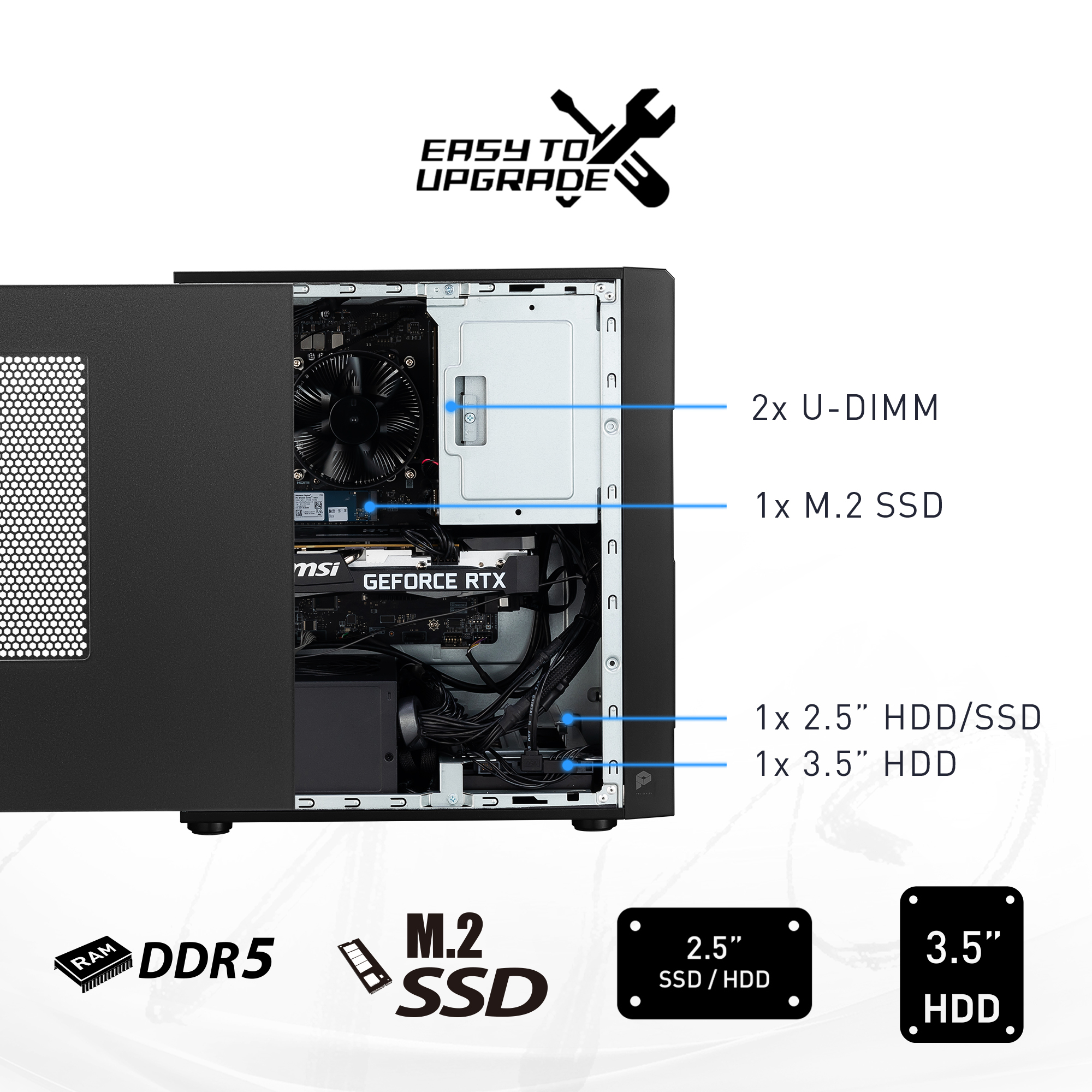

Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 0 |
Power
| Specification | Value |
|---|---|
| Power supply | 350 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Power consumption (standby) | 8 W |
| Power consumption (typical) | 35 W |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Colour name | Black |
| Placement supported | Vertical |
| VESA mounting | No |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Liquid cooling system | No |
| Copilot key | No |
| Product colour | Black |
| Housing material | Metal, Plastic |
| Introduction month | June |
| Introduction year | 2025 |
| RGB memory lighting | No |
| Viewing window | No |
| Country of origin | China |
| Refurbished | No |
| Certified refurbished | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Operating system language | English |
| Windows 11 free upgrade | No |
| Apple Intelligence | No |
| Drivers included | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC897 |
| Audio system | High Definition Audio |
| Number of speakers | 0 |
| Built-in microphone | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |

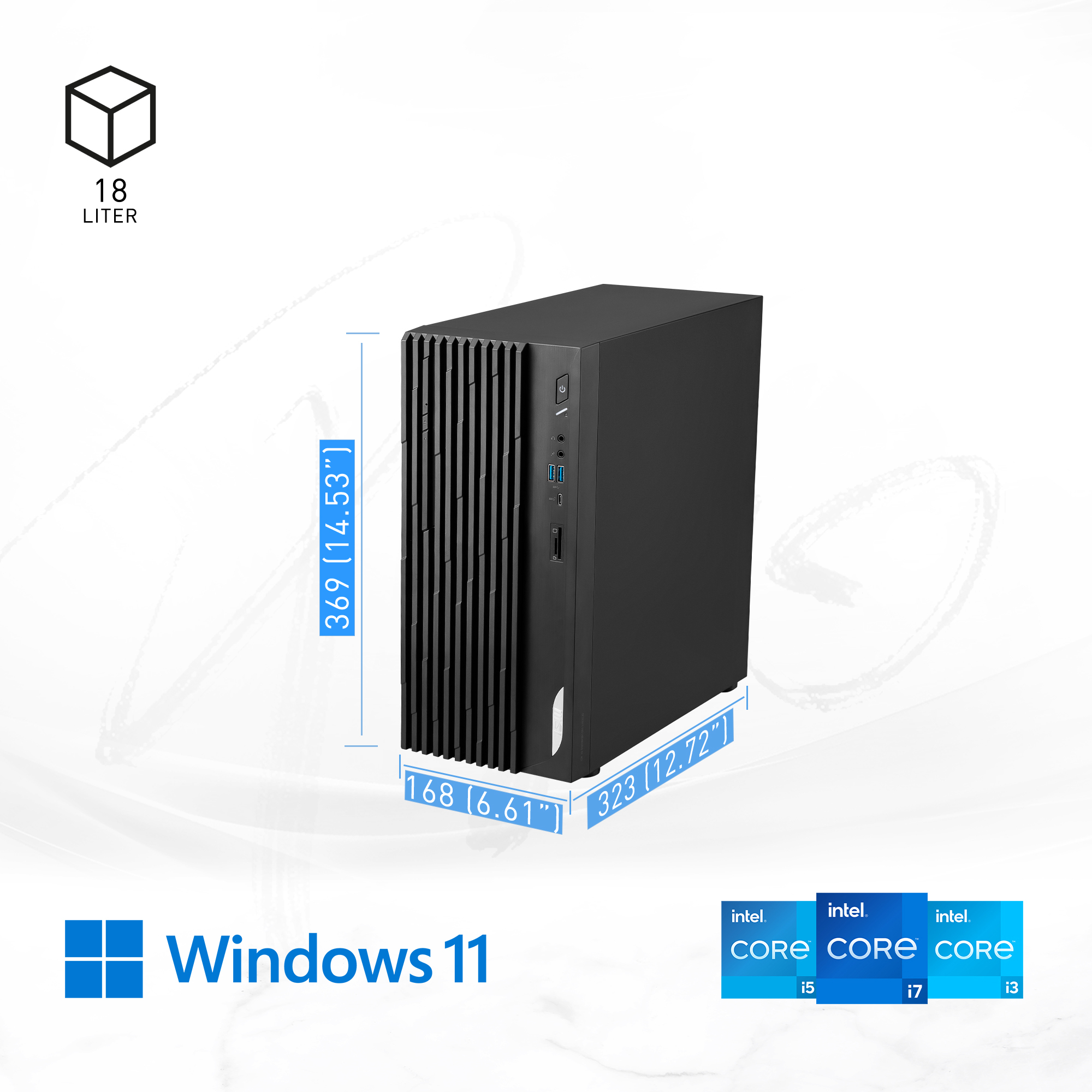

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 168 mm |
| Depth | 323 mm |
| Height | 369 mm |
| Weight | 7.59 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 565 mm |
| Package depth | 242 mm |
| Package height | 510 mm |
| Package weight | 9.03 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| Numeric keypad | No |
| Cables included | AC |
| Power cable length | 1.5 m |
| VESA mount included | No |
| Screws included | No |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Low halogen | No |
| PSTI certified | No |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Keyboard
| Specification | Value |
|---|---|
| Keyboard backlit | No |
Technical details
| Specification | Value |
|---|---|
| Statement of conformance & platform certificate included | Yes |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Locale | English |
| Warranty period | 3 year(s) |
