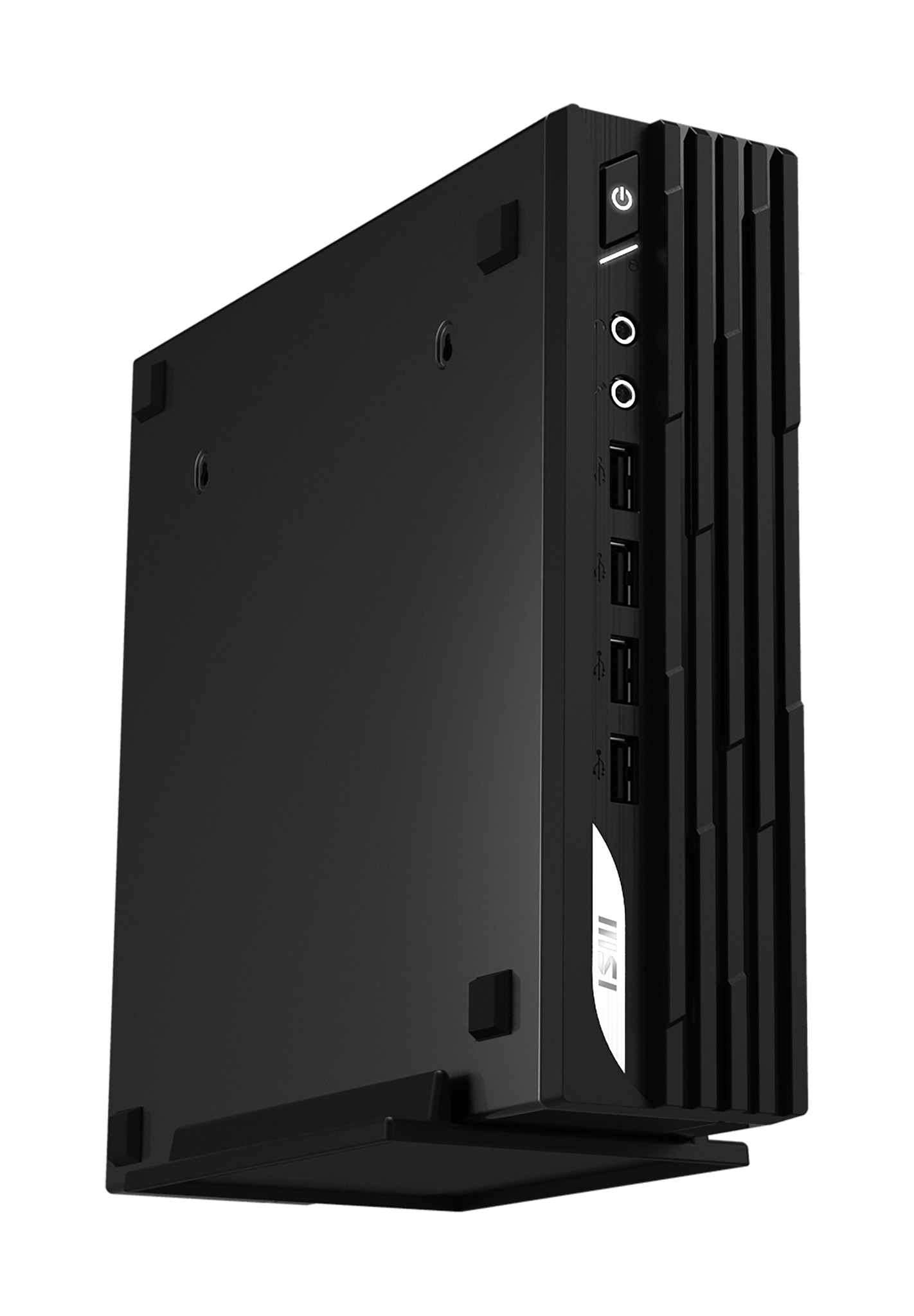

Pro DP21 13M-487EU
Model Pro DP21 13M-487EUPart no. PRO DP21 13M-487EUEAN 4711377041690
88 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage512 GB
- GraphicsNot available
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- Pro DP21 13M-487EU
- Part number
- PRO DP21 13M-487EU
- EAN / UPC
- 4711377041690
- Also known as
- MSI Pro DP21 13M-487EU Intel® Core™ i7 i7-13700 16 GB DDR4-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Specifications
88 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor model | i7-13700 |
| Processor cores | 16 |
| Processor threads | 24 |
| Processor boost frequency | 5.2 GHz |
| Performance cores | 8 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient-core Max Turbo Frequency | 4.1 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 30 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Maximum turbo power | 219 W |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Business |
| Motherboard chipset | Intel H610 |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 120 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Volume | 2.3 L |
| Placement supported | Horizontal/Vertical |
| VESA mounting | Yes |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC897 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 204 mm |
| Depth | 208 mm |
| Height | 54.8 mm |
| Weight | 1.27 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 271 mm |
| Package depth | 382 mm |
| Package height | 54.8 mm |
| Package weight | 2.75 kg |
Packaging content
| Specification | Value |
|---|---|
| VESA mount included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CB/CE, UL & CUL, VCCI, RCM |
