XPS 8940 Intel® Core™ i7 i7-10700
16 GB DDR4-SDRAM 1.51 TB HDD+SSD NVIDIA® GeForce RTX™ 2060 Windows 10 Home Tower PC Black
Model 8940Part no. DXPS8940MS_S42EEAN 5397184490709
181 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage1.51 TB
- GraphicsNVIDIA® GeForce RTX™ 2060
- SpeedWi-Fi 6 (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 1.51 TB
- Graphics
- NVIDIA® GeForce RTX™ 2060
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- Brand
- Dell
- Category
- PCs/Workstations
- Model
- 8940
- Part numbers
- DXPS8940MS_S42E, DXPS8940MS_S43E, CDX89411CO, CDX89408CO, CDX89407CO, PVYDC +34 more
- EAN / UPC
- 5397184490709, 5397184490716, 5397184473269, 884116363668 +11 more
- Also known as
- DELL XPS 8940 Intel® Core™ i7 i7-10700 16 GB DDR4-SDRAM 1.51 TB HDD+SSD NVIDIA® GeForce RTX™ 2060 Windows 10 Home Tower PC Black
Specifications
181 specifications in 21 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 10th gen Intel® Core™ i7 |
| Processor model | i7-10700 |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4.8 GHz |
| Processor frequency | 2.9 GHz |
| Processor cache | 16 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 65 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1200 (Socket H5) |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2933 MHz |
| Memory bandwidth supported by processor (max) | 45.8 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 2933 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.51 TB |
| Optical drive type | DVD-RW |
| Storage media | HDD+SSD |
| Number of storage drives installed | 2 |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 2060 |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x9BC5 |
| On-board graphics card OpenGL version | 4.5 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel H470 |
| Password protection | Yes |
| Audio output channels | 5.1 channels |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN controller model | Killer Wireless-AX 1650i |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |

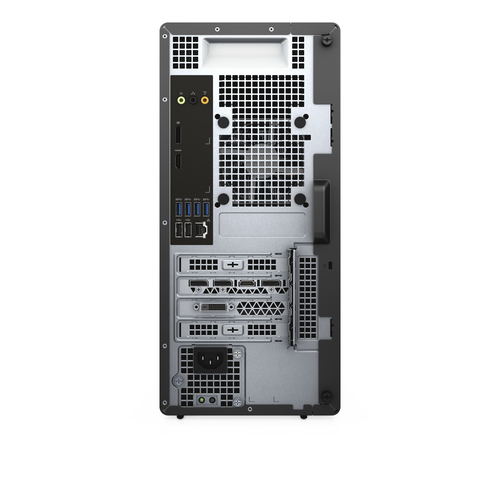

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Line-out | Yes |
| Microphone in | No |
| DVI port | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
| Power supply input voltage | 90 - 264 V |
| Power supply input frequency | 47 - 63 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Colour name | Black |
| Placement supported | Vertical |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Bundled software | Financial Tracker & Retail Information; Cyberlink Media Player with PowerDVD 19 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 199316 |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2015C |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3861 |
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.26 G |
| Non-operating vibration | 1.37 G |
| Operating shock | 40 G |
| Non-operating shock | 105 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 169 mm |
| Depth | 308 mm |
| Height | 367 mm |
| Weight | 8.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 422 mm |
| Package depth | 506 mm |
| Package height | 346 mm |
| Package weight | 9.4 kg |
| Package material | Corrugated cardboard, Low-density polyethylene (LDPE) |
Packaging content
| Specification | Value |
|---|---|
| Mouse included on selected markets only | Yes |
| Keyboard included on selected markets only | Yes |
| Manual | Yes |
| Power cord included | Yes |
Recycling data
| Specification | Value |
|---|---|
| Paper molded pulp content per package | 0 g |
| Bamboo molded pulp content per package | 0 g |
| Wheat straw molded pulp content per package | 0 g |
| Grey board content per package | 0 g |
| Corrugated cardboard content per package | 1.32 kg |
| Corrugated cardboard content per shipping (inner) case | 910 g |
| Corrugated cardboard content per box for accessories | 410 g |
| Corrugated cardboard content per sleeve for accessories | 0 g |
| Polyethylene terephthalate (PET) content per package | 0 g |
| High-density polyethylene (HDPE) content per package | 0 g |
| Low-density polyethylene (LDPE) content per package | 200 g |
| Polypropylene (PP) content per package | 0 g |
| Polystyrene (PS) content per package | 0 g |
| Other materials content per package | 0 g |
Sustainability
| Specification | Value |
|---|---|
| EPEAT rating | 86.84% |
| Sustainability certificates | ENERGY STAR |
Logistics data
| Specification | Value |
|---|---|
| Products per intermodal container (20ft) | 200 pc(s) |
| Products per intermodal container (40ft, HC) | 504 pc(s) |
| Pallet gross width | 100 cm |
| Pallet gross length | 120 cm |
| Pallet gross weight | 120.8 kg |
| Pallet volume weight | 235.6 kg |
| Maximum number of stacking cartons | 6 pc(s) |
| Products per pallet layer | 4 pc(s) |
| Layers per pallet | 3 pc(s) |
| Products per pallet | 12 pc(s) |
