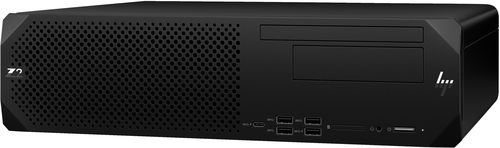

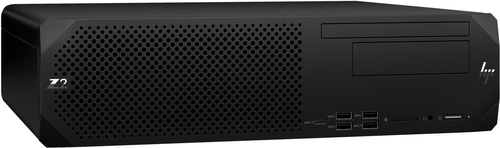

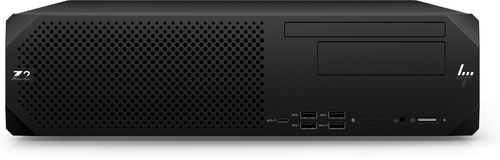

Z2 Small Form Factor G9
Model Z2 Small Form Factor G9Part no. A1XD1LAEAN 198415346872
78 specifications
- ProcessorIntel® Core™ i7
- Memory32 GB
- Storage1 TB
- GraphicsNot available
- TypeWorkstation
- OSWindows 11 Pro
Overview
- Processor
- Intel® Core™ i7
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- Not available
- Type
- Workstation
- OS
- Windows 11 Pro
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Z2 Small Form Factor G9
- Part numbers
- A1XD1LA, A1XC6LA, A1XC0LT, A1XC2LT, A4KT2UC, A1NU5UT#ABA +4 more
- EAN / UPC
- 198415346872, 197029377807, 196068991869
- Also known as
- HP Z2 Small Form Factor G9 Intel® Core™ i7 i7-14700 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro SFF Workstation AI Workstation Black
Specifications
78 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700 |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.6 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1700 |
| Maximum turbo power | 219 W |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory clock speed | 4800 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Market positioning | Performance |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 450 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Number of 2.5" bays | 1 |
| Product colour | Black |
| Introduction year | 2026 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
Display
| Specification | Value |
|---|---|
| Display included | No |
Brand-specific features
| Specification | Value |
|---|---|
| HP Support Assistant | Yes |
| HP Artificial Intelligence | AI Workstation |
| HP segment | Business |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3252 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 384 mm |
| Depth | 308 mm |
| Height | 100 mm |
| Weight | 5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 384 mm |
| Package height | 308 mm |
| Package weight | 5.9 kg |
