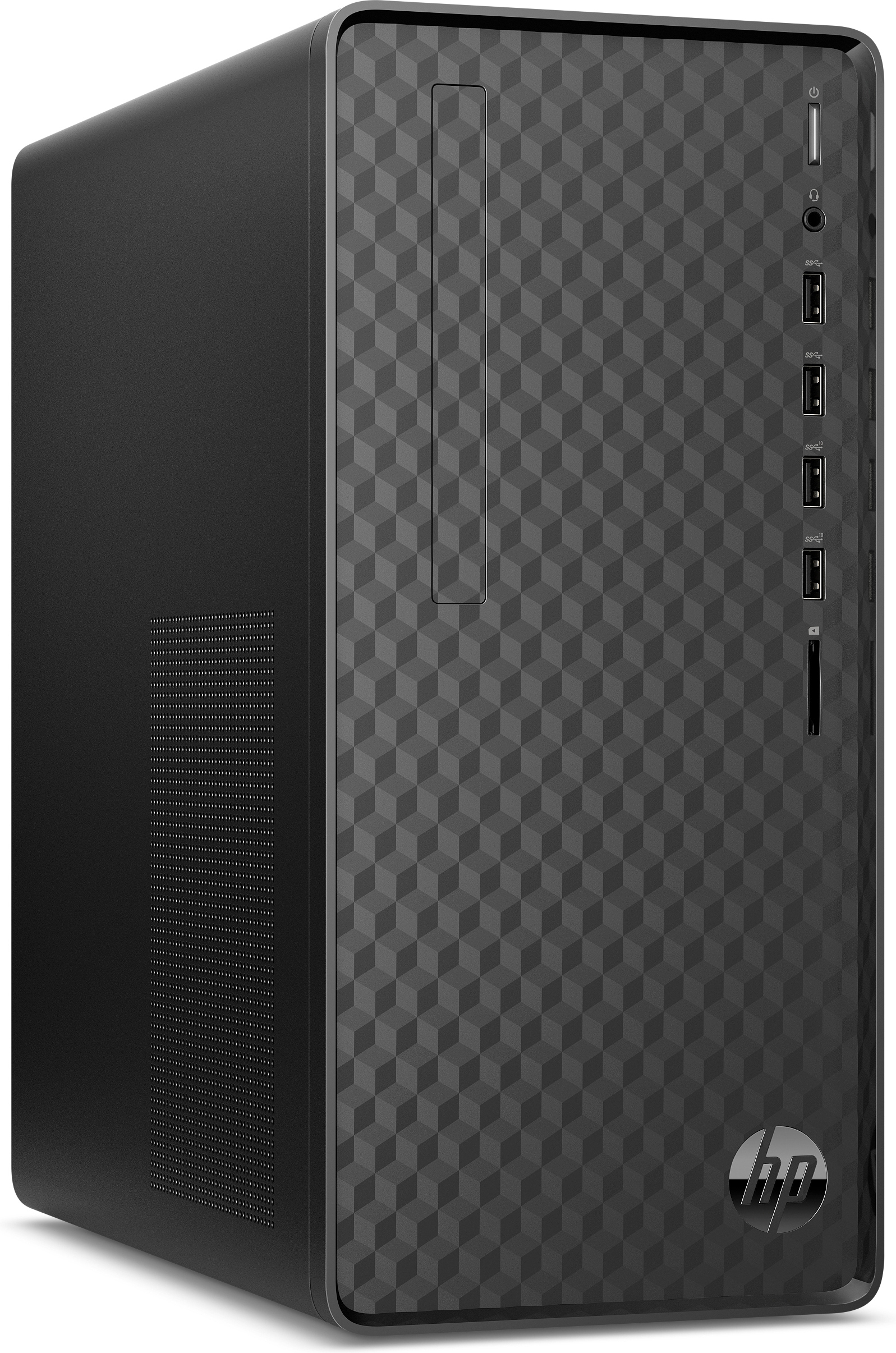

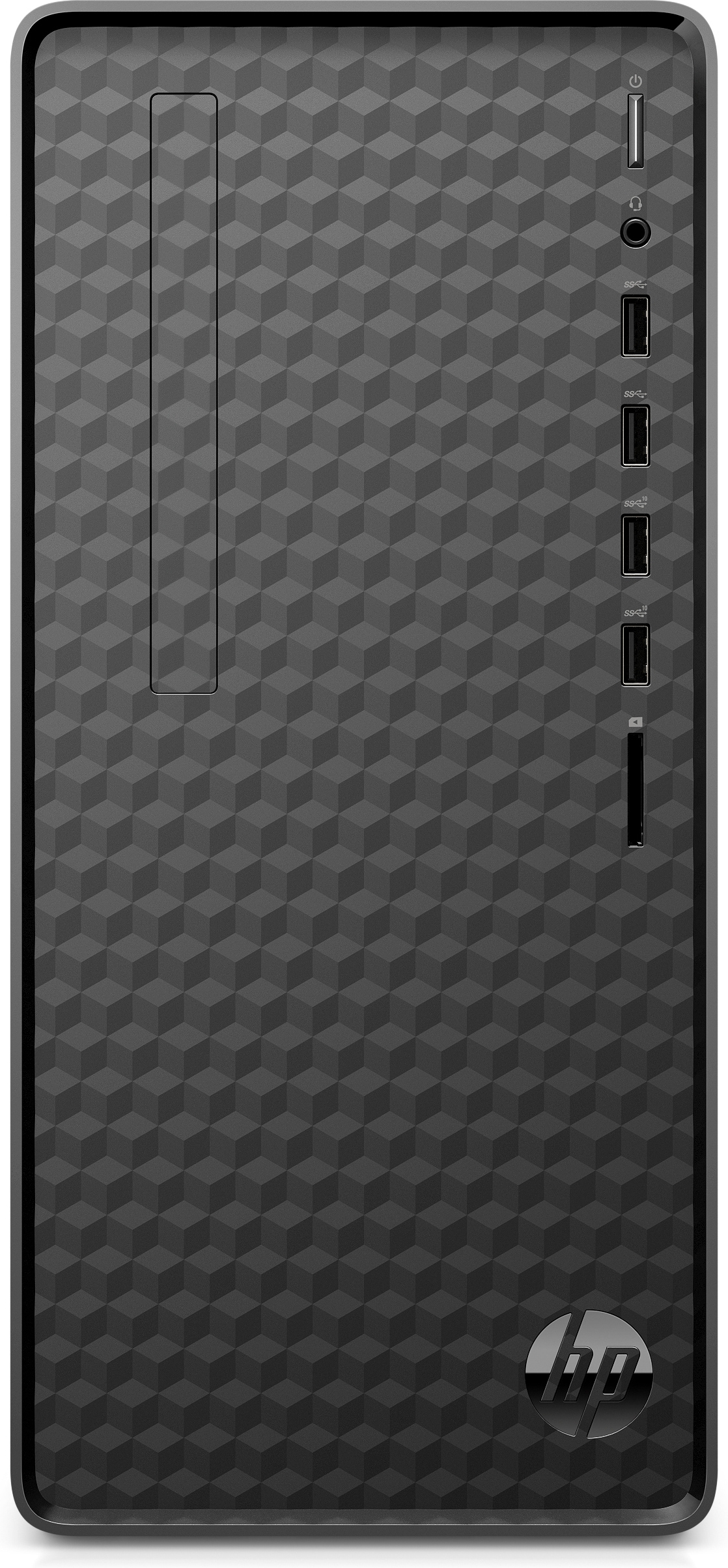

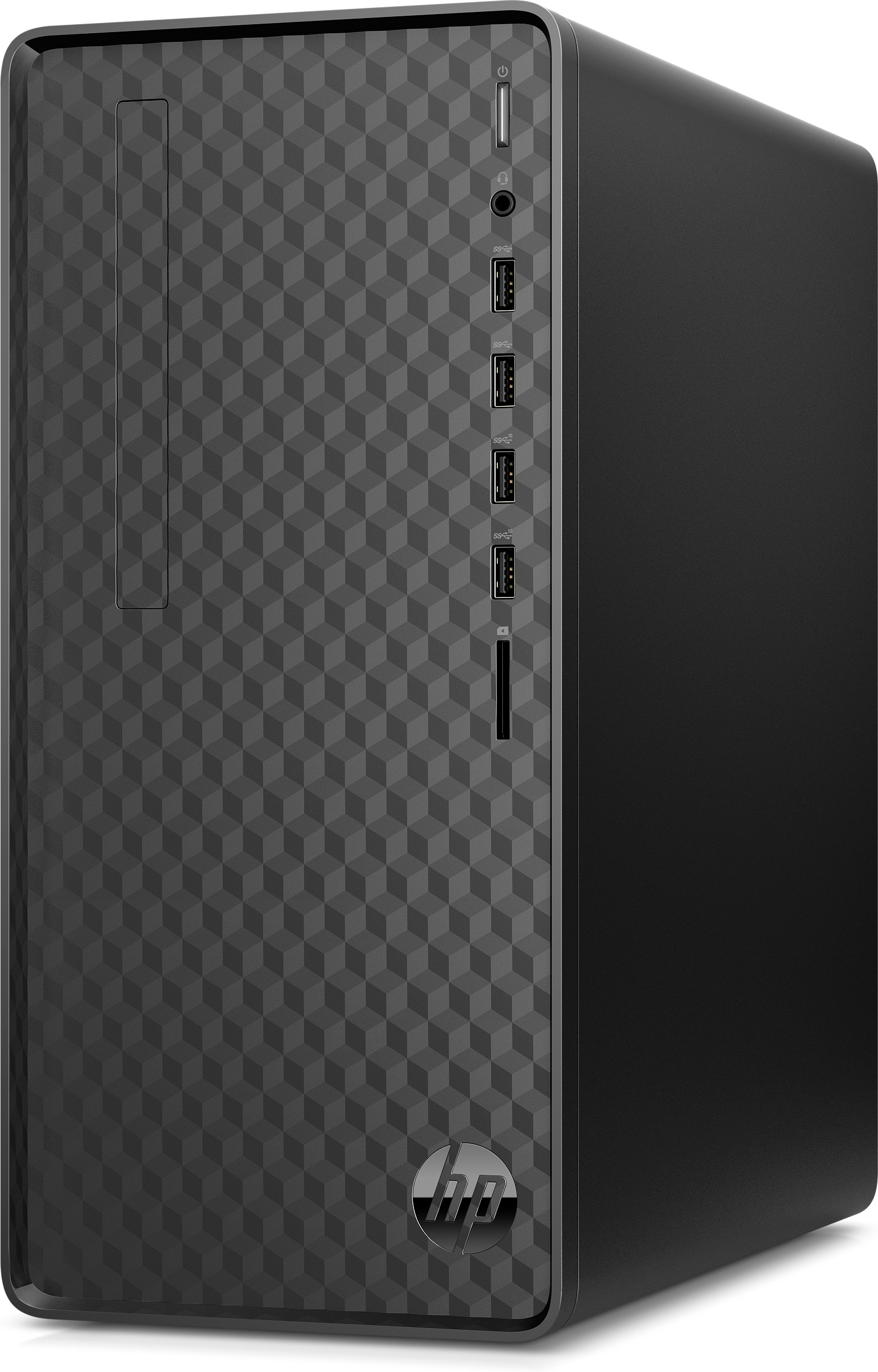

M01-F1016na Intel® Core™ i5 i5-10400F
8 GB DDR4-SDRAM 1.12 TB HDD+SSD NVIDIA® GeForce® GT 1030 Windows 10 Home Mini Tower PC Black
Model M01-F1016naPart no. 1P0F7EAEAN 195122453664
135 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage1.12 TB
- GraphicsNVIDIA® GeForce® GT 1030
- SpeedWi-Fi 5 (802.11ac)
- TypePC
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 1.12 TB
- Graphics
- NVIDIA® GeForce® GT 1030
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- PC
- Brand
- HP
- Category
- PCs/Workstations
- Model
- M01-F1016na
- Part number
- 1P0F7EA
- EAN / UPC
- 195122453664
- Also known as
- HP M01-F1016na Intel® Core™ i5 i5-10400F 8 GB DDR4-SDRAM 1.12 TB HDD+SSD NVIDIA® GeForce® GT 1030 Windows 10 Home Mini Tower PC Black
Specifications
135 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor model | i5-10400F |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.3 GHz |
| Processor frequency | 2.9 GHz |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 65 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1200 (Socket H5) |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x DIMM |
| Memory clock speed | 2666 MHz |
| ECC | No |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.12 TB |
| Optical drive type | No |
| Storage media | HDD+SSD |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| NVMe | Yes |
| SSD interface | PCI Express, NVMe |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA® GeForce® GT 1030 |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Everyday |
| Motherboard chipset | Intel B460 |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer | Realtek |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 1x1 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | No |
| DVI port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 180 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Placement supported | Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Drivers included | Yes |
| Pre-installed software | Netflix |
| Trial software | McAfee LiveSafe; Microsoft Office 365 |
| Bundled software | Dropbox |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 199278 |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2015C |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| HP segment | Home |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155.4 mm |
| Depth | 303 mm |
| Height | 337.4 mm |
| Weight | 4.71 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 499 mm |
| Package depth | 400 mm |
| Package height | 287 mm |
| Package weight | 8.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Keyboard
| Specification | Value |
|---|---|
| Keyboard backlit | Yes |
| Keyboard type | USB |
