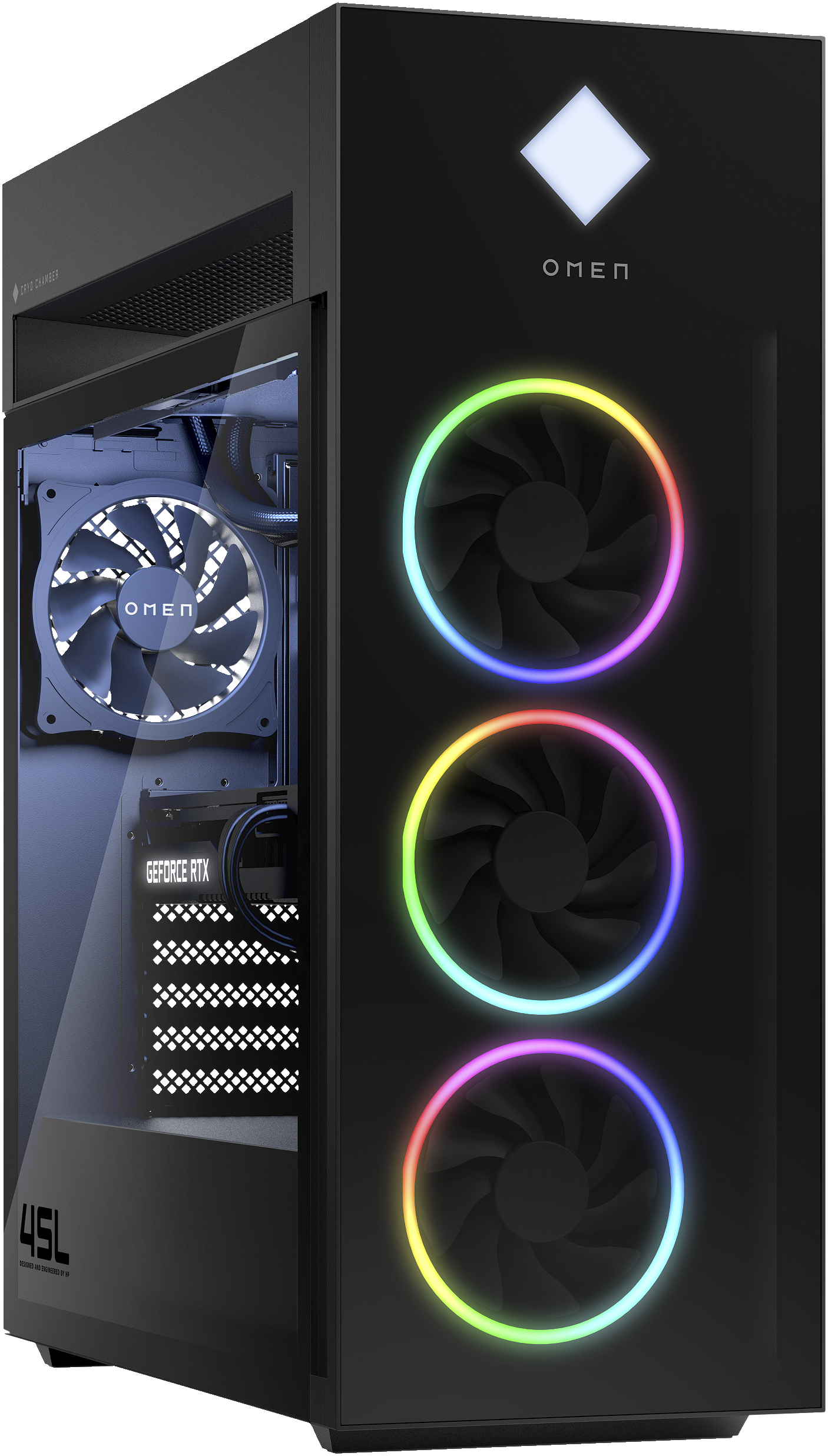

OMEN by HP 45L GT22-0023na AMD Ryzen™ 7 5800X 16 GB DDR4-SDRAM 1 TB SSD NVIDIA GeForce RTX 3080 Windows 11 Home PC Liquid cooling system Black
Model GT22-0023naPart no. 6T9N7EAEAN 196786462467
104 specifications
- ProcessorAMD Ryzen™ 7
- Memory16 GB
- Storage1 TB
- GraphicsNVIDIA GeForce RTX 3080
- SpeedWi-Fi 6 (802.11ax)
- TypePC
Overview
- Processor
- AMD Ryzen™ 7
- Memory
- 16 GB
- Storage
- 1 TB
- Graphics
- NVIDIA GeForce RTX 3080
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- Brand
- HP
- Category
- PCs/Workstations
- Model
- GT22-0023na
- Part number
- 6T9N7EA
- EAN / UPC
- 196786462467
- Also known as
- OMEN by HP 45L GT22-0023na AMD Ryzen™ 7 5800X 16 GB DDR4-SDRAM 1 TB SSD NVIDIA GeForce RTX 3080 Windows 11 Home PC Liquid cooling system Black
Specifications
104 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 5000 Series |
| Processor model | 5800X |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor boost frequency | 4.7 GHz |
| Processor frequency | 3.8 GHz |
| Processor cache | 32 MB |
| Processor cache type | L3 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 3733 MHz |
| ECC | Yes |
| Non-ECC | Yes |
| Internal memory manufacturer | HyperX |
| Number of free internal memory expansion slots | 2 |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | PCI Express, NVMe |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 3080 |
| Discrete graphics card memory | 10 GB |
| Discrete graphics memory type | GDDR6X |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard chipset | AMD B550 |
| Motherboard form factor | micro ATX |
| Password protection | Yes |
| Password protection type | BIOS, Power on, User |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Realtek |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Realtek RTL8852BE |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 800 W |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Colour name | Black, glass side panel, dark chrome logo |
| Placement supported | Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Liquid cooling system | Yes |
| Product colour | Black |
| RGB memory lighting | Yes |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Pre-installed software | ExpressVPN (30 day free trial); LastPass Premium (30 day free trial), 1 month trial for new Microsoft 365 customers, McAfee LiveSafe™; Xbox Game Pass 1-month free trial |
| Trial software | 25 GB Dropbox storage for 12 months |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| HP Support Assistant | Yes |
| HP Security tools | Chassis side cover lock |
| HP Software provided | HP Audio Switch; HP Connection Optimizer; HP Support Assistant; HP QuickDrop; OMEN Gaming Hub; HP Enhanced Lighting |
| HP segment | Home |
| HP GTIN (EAN/UPC) | 196786462467 |
Audio
| Specification | Value |
|---|---|
| Audio system | DTS:X Ultra |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 204 mm |
| Depth | 470 mm |
| Height | 555 mm |
| Weight | 22.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 592 mm |
| Package depth | 328 mm |
| Package height | 672 mm |
| Package weight | 25.2 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
| Sustainable technologies and materials | Water based paint |
| Sustainability compliance | Yes |
