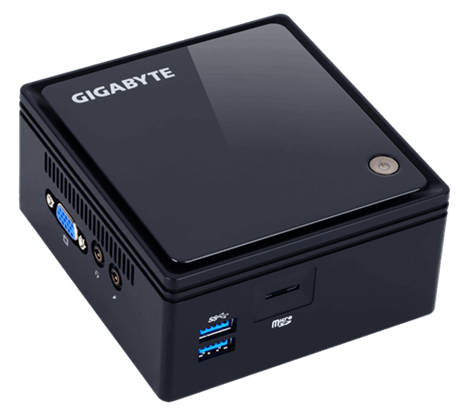

BRIX GB-BACE-3000-FT-BW PC/workstation Intel® Celeron® N3000

2 GB DDR3L-SDRAM 32 GB eMMC Windows 10 Home Mini PC Black

Model GB-BACE-3000-FT-BW

128 specifications

ProcessorIntel® Celeron®
Memory2 GB
Storage32 GB
GraphicsNot available
SpeedWi-Fi 5 (802.11ac)
TypeMini PC

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 2 GB
Storage: 32 GB
Graphics: Not available
Speed: Wi-Fi 5 (802.11ac)
Type: Mini PC

Brand: GIGABYTE
Category: PCs/Workstations
Model: GB-BACE-3000-FT-BW
Part number: GB-BACE-3000-FT-BW
Also known as: GIGABYTE BRIX GB-BACE-3000-FT-BW PC/workstation Intel® Celeron® N3000 2 GB DDR3L-SDRAM 32 GB eMMC Windows 10 Home Mini PC Black

Specifications

128 specifications in 15 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N3000
Processor cores	2
Processor threads	2
Processor boost frequency	2.08 GHz
Processor frequency	1.04 GHz
Processor cache	2 MB
Processor cache type	L2
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Celeron N3000 series
Processor codename	Braswell
Thermal Design Power (TDP)	4 W
Scenario Design Power (SDP)	3 W
Tjunction	90 °C
Maximum number of PCI Express lanes	4
PCI Express configurations	1x4, 4x1
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1170
Stepping	C0
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1600 MHz
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	32 GB
Optical drive type	No
Storage media	eMMC
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics
Maximum on-board graphics card memory	8 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	320 MHz
On-board graphics card burst frequency	600 MHz
Number of execution units	12

Performance

Specification	Value
Product type	Mini PC

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

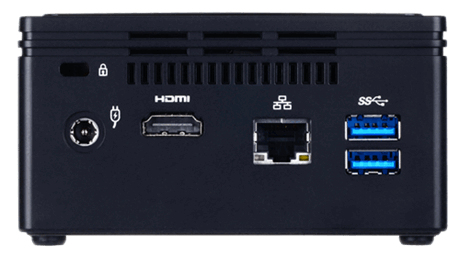

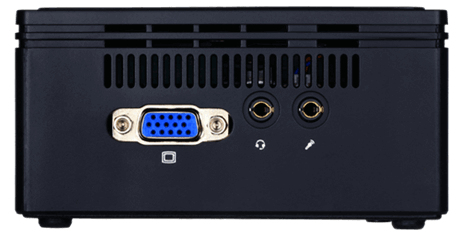

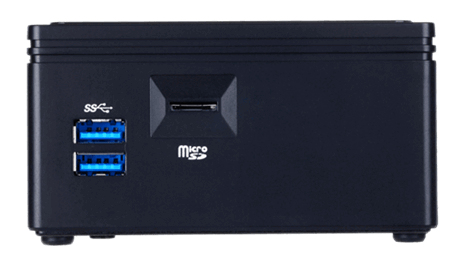

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
DC-in jack	Yes

Power

Specification	Value
Power supply input voltage	100 - 240 V

Design

Specification	Value
Chassis type	Mini PC
Volume	0.7 L
Panel mounting interface	75 x 75,100 x 100 mm
Placement supported	Horizontal
VESA mounting	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology version	0.00
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	87259
Processor code	SR29J
Processor package size	25 x 27 mm
Thermal Monitoring Technologies	Yes
UART	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes
Integrated 4G WiMAX	No
