Product comparison · 2 pcs/workstations

GIGABYTE BRIX GB-BACE-3000-FT-BW PC/workstation Intel® Celeron® N3000 vs GIGABYTE BRIX GB-EKi3A-7100 Intel® Core™ i3 i3-7100U DDR4-SDRAM

Add a product
  • 107specifications compared
  • 51differ
  • 56identical
  • 53known for one product only

Key differences

  • Processor family
    • Intel® Celeron®
    • Intel® Core™ i3
  • Processor model
    • N3000
    • i3-7100U
  • Processor threads
    • 2
    • 4
  • Processor frequency
    • 1.04 GHz
    • 2.4 GHz
  • Processor cache
    • 2 MB
    • 3 MB
  • Processor cache type
    • L2
    • Smart Cache
  • Processor codename
    • Braswell
    • Kaby Lake
  • Thermal Design Power (TDP)
    • 4 W
    • 15 W

Side by side

Differences highlightedShow differences only
160 specifications
A

GIGABYTE

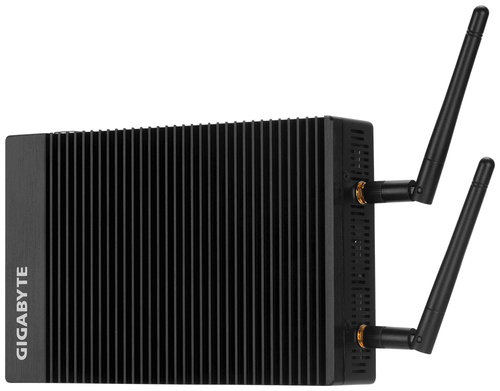

BRIX GB-BACE-3000-FT-BW PC/workstation Intel® Celeron® N3000

Model GB-BACE-3000-FT-BW

View product
B

GIGABYTE

BRIX GB-EKi3A-7100 Intel® Core™ i3 i3-7100U DDR4-SDRAM

Model GB-EKi3A-7100

View product
Processor17 differ
Processor manufacturerIntelIntel
Processor familyDiffersIntel® Celeron®Intel® Core™ i3
Processor generationKnown for one7th gen Intel® Core™ i3
Processor modelDiffersN3000i3-7100U
Processor cores22
Processor threadsDiffers24
Processor frequencyDiffers1.04 GHz2.4 GHz
Processor cacheDiffers2 MB3 MB
Processor cache typeDiffersL2Smart Cache
Bus typeKnown for oneOPI
System bus rateKnown for one4 GT/s
Processor lithography14 nm14 nm
Processor operating modes64-bit64-bit
Processor codenameDiffersBraswellKaby Lake
Thermal Design Power (TDP)Differs4 W15 W
Configurable TDP-downKnown for one7.5 W
Configurable TDP-down frequencyKnown for one0.8 GHz
TjunctionDiffers90 °C100 °C
Maximum number of PCI Express lanesDiffers412
PCI Express configurationsDiffers1x4, 4x11x2+2x1, 1x4, 2x2, 4x1
PCI Express slots versionDiffers2.03.0
Number of processors installed11
Processor socketDiffersBGA 1170BGA 1356
SteppingDiffersC0H0
Maximum internal memory supported by processorDiffers8 GB32 GB
Memory types supported by processorDiffersDDR3L-SDRAMDDR3L, DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processorDiffers1600 MHz1600,1866,2133 MHz
Memory bandwidth supported by processor (max)Known for one34.1 GB/s
ECC supported by processorNoNo
Processor boost frequencyKnown for one2.08 GHz
Processor seriesKnown for oneIntel Celeron N3000 series
Scenario Design Power (SDP)Known for one3 W
Memory2 differ
Maximum internal memoryKnown for one32 GB
Internal memory typeDiffersDDR3L-SDRAMDDR4-SDRAM
Memory slotsKnown for one2x SO-DIMM
Memory clock speedDiffers1600 MHz2133 MHz
Memory channelsDual-channelDual-channel
Internal memoryKnown for one2 GB
Storage4 differ
Total storage capacityDiffers32 GB0 GB
Optical drive typeDiffersNoDVD±RW
Storage mediaDifferseMMCSSD
Number of storage drives installedKnown for one0
Number of storage drives supportedKnown for one1
SSD interfaceKnown for oneM.2
Card reader integratedDiffersYesNo
Compatible memory cardsKnown for oneMicroSD (TransFlash)
Graphics3 differ
Discrete graphics cardNoNo
On-board graphics cardYesYes
Discrete graphics card modelNot availableNot available
On-board graphics card modelDiffersIntel® HD GraphicsIntel® HD Graphics 620
Maximum on-board graphics card memoryDiffers8 GB32 GB
Number of displays supported (on-board graphics)33
On-board graphics card base frequencyDiffers320 MHz300 MHz
On-board graphics card dynamic frequency (max)Known for one1000 MHz
On-board graphics card DirectX versionKnown for one12.0
On-board graphics card IDKnown for one0x5916
On-board graphics card OpenGL versionKnown for one4.4
On-board graphics card burst frequencyKnown for one600 MHz
Number of execution unitsKnown for one12
Performanceidentical
Product typeMini PCMini PC
Network1 differ
Ethernet LANYesYes
Ethernet LAN data rates10,100,1000 Mbit/s10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)10/100/1000Base-T(X)
Wi-FiYesYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)Wi-Fi 5 (802.11ac)
Wi-Fi standardsDiffers802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)Wi-Fi 5 (802.11ac)
BluetoothKnown for oneYes
Bluetooth versionKnown for one4.2
Number of antenna connectorsKnown for one2
Ports & interfaces6 differ
USB 2.0 ports quantity00
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantityDiffers42
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantityDiffers01
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantityDiffers01
Thunderbolt 3 ports quantity00
DisplayPorts quantityKnown for one0
HDMI ports quantity11
HDMI versionKnown for one2.0
Ethernet LAN (RJ-45) ports11
Combo headphone/mic portKnown for oneYes
Headphone outputsDiffers10
Microphone inDiffersYesNo
VGA (D-Sub) ports quantityDiffers10
DVI portNoNo
Mini DisplayPorts quantityKnown for one1
DC-in jackYesYes
RS‐232/422 portKnown for oneYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantityKnown for one0
Power1 differ
Power supplyKnown for one65 W
Power supply input voltageDiffers100 - 240 V19 V
Design1 differ
Chassis typeMini PCMini PC
VolumeDiffers0.7 L0.76 L
Panel mounting interface75 x 75,100 x 100 mm75 x 75,100 x 100 mm
VESA mountingYesYes
Cable lock slotYesYes
Cable lock slot typeKensingtonKensington
Product colourBlackBlack
Placement supportedKnown for oneHorizontal
Displayidentical
Display includedNoNo
Processor special features12 differ
CPU configuration (max)11
Embedded options availableDiffersNoYes
Enhanced Intel SpeedStep TechnologyYesYes
Execute Disable BitYesYes
Graphics & IMC lithographyKnown for one14 nm
Idle StatesYesYes
Intel 64YesYes
Intel Clear Video TechnologyYesYes
Intel Enhanced Halt StateYesYes
Intel Flex Memory AccessKnown for oneYes
Intel Identity Protection Technology version1.001.00
Intel Secure Key Technology version1.001.00
Intel Smart Response Technology versionDiffers0.001.00
Intel Software Guard Extensions (Intel SGX)Known for oneYes
Intel Stable Image Platform Program (SIPP)NoNo
Intel Stable Image Platform Program (SIPP) version0.000.00
Intel TSX-NIKnown for oneNo
Intel TSX-NI versionKnown for one0.00
Intel Trusted Execution TechnologyNoNo
Intel VT-x with Extended Page Tables (EPT)YesYes
Intel Virtualization Technology (VT-x)YesYes
Intel Virtualization Technology for Directed I/O (VT-d)DiffersNoYes
Intel® AES New Instructions (Intel® AES-NI)YesYes
Intel® Clear Video HD Technology (Intel® CVT HD)YesYes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)YesYes
Intel® InTru™ 3D TechnologyDiffersNoYes
Intel® Insider™DiffersNoYes
Intel® OS GuardDiffersNoYes
Intel® Secure KeyYesYes
Intel® Small Business Advantage (Intel® SBA)DiffersNoYes
Intel® Wireless Display (Intel® WiDi)YesYes
Processor ARK IDDiffers8725995442
Processor codeDiffersSR29JSR2ZW
Processor package sizeDiffers25 x 27 mm42 x 24 mm
Supported instruction setsKnown for oneAVX 2.0, SSE4.2
Thermal Monitoring TechnologiesYesYes
Intel® Smart Response TechnologyDiffersNoYes
Intel® Turbo Boost TechnologyNoNo
Intel® Hyper Threading Technology (Intel® HT Technology)DiffersNoYes
Intel® Quick Sync Video TechnologyYesYes
Intel® My WiFi Technology (Intel® MWT)Known for oneYes
Intel® Identity Protection Technology (Intel® IPT)YesYes
Conflict-Free processorYesYes
Intel Rapid Storage TechnologyKnown for oneNo
Intel Secure BootKnown for oneYes
Intel Secure Boot Technology versionKnown for one1.00
Intel Small Business Advantage (SBA) versionKnown for one0.00
Intel Smart Connect Technology versionKnown for one0.00
Intel® High Definition Audio (Intel® HD Audio)Known for oneYes
UARTKnown for oneYes
Intel Smart Connect TechnologyKnown for oneNo
Intel® Anti-Theft Technology (Intel® AT)Known for oneNo
Integrated 4G WiMAXKnown for oneNo
Audioidentical
Audio chipRealtek ALC255Realtek ALC255
Operational conditions1 differ
Operating temperature (T-T)Differs0 - 35 °C0 - 40 °C
Storage temperature (T-T)-20 - 60 °C-20 - 60 °C
Weight & dimensions3 differ
WidthDiffers114.4 mm180 mm
DepthDiffers107.6 mm117 mm
HeightDiffers56.1 mm36 mm
WeightKnown for one978 g
Softwareidentical
Operating system installedKnown for oneWindows 10 Home
Operating system architectureKnown for one64-bit

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
