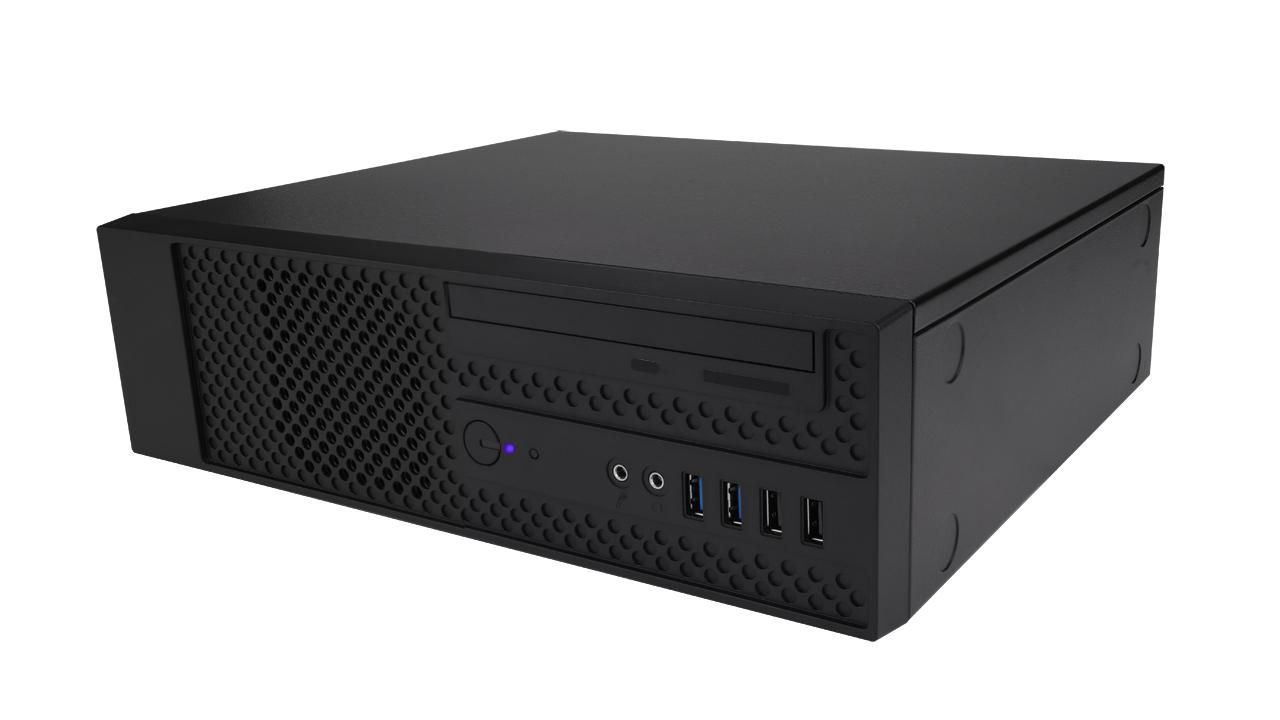

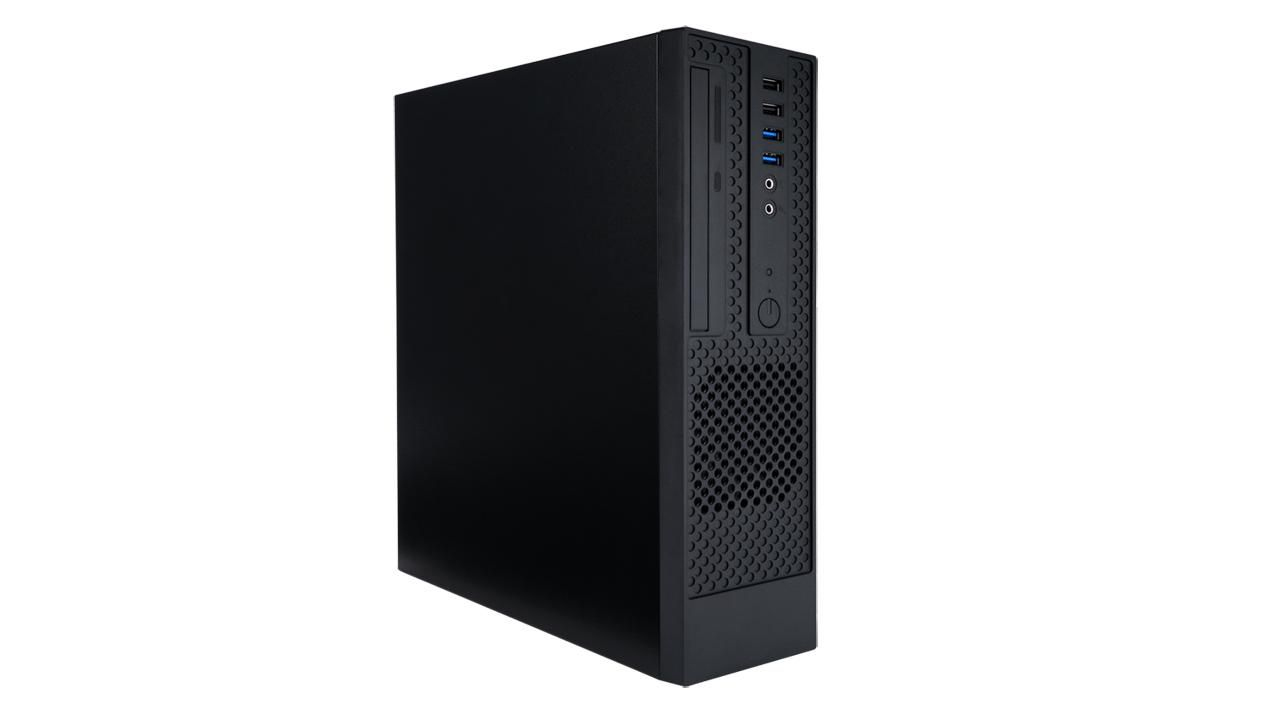

WD-IU5-8TB PC/workstation 225
16 GB DDR5-SDRAM 8.5 TB Windows 11 Pro Black
Model WD-IU5-8TBEAN 5715328227866
73 specifications
- Processor225
- Memory16 GB
- Storage8.5 TB
- TypeWorkstation
- OSWindows 11 Pro
- Weight5 kg
Overview
- Processor
- 225
- Memory
- 16 GB
- Storage
- 8.5 TB
- Type
- Workstation
- OS
- Windows 11 Pro
- Weight
- 5 kg
- Brand
- Ernitec
- Category
- PCs/Workstations
- Model
- WD-IU5-8TB
- Part number
- WD-IU5-8TB
- EAN / UPC
- 5715328227866
- Also known as
- Ernitec WD-IU5-8TB PC/workstation 225 16 GB DDR5-SDRAM 8.5 TB Windows 11 Pro Black
Specifications
73 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor model | 225 |
| Processor cores | 10 |
| Processor threads | 10 |
| Processor frequency | 4.9 GHz |
| Performance cores | 6 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.9 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Performance-core base frequency | 3.3 GHz |
| Efficient-core base frequency | 2.7 GHz |
| Processor cache | 30 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1851 (Socket V1) |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory clock speed | 5600 MHz |
| ECC | No |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 8.5 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 8 TB |
| HDD interface | SATA III |
| HDD size | 3.5" |
| Total SSDs capacity | 500 GB |
| Number of SSDs installed | 1 |
| SSD interface | SATA III |
| SSD form factor | 2.5" |
Graphics
| Specification | Value |
|---|---|
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics |
| On-board graphics card 4K support | Yes |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel H810 |
| Motherboard form factor | micro ATX |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Number of front USB ports | 2 |
| Number of rear USB ports | 6 |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Design
| Specification | Value |
|---|---|
| Number of 2.5" bays | 1 |
| Product colour | Black |
| Form factor | Mini Tower / Desktop |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system language | Multilingual |
| Compatible operating systems | Windows 11 |
Display
| Specification | Value |
|---|---|
| Number of displays supported | 2 |
Processor special features
| Specification | Value |
|---|---|
| Processor ARK ID | 241070 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 430 mm |
| Height | 480 mm |
| Weight | 5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 310 mm |
| Package depth | 540 mm |
| Package height | 530 mm |
| Package weight | 6 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
