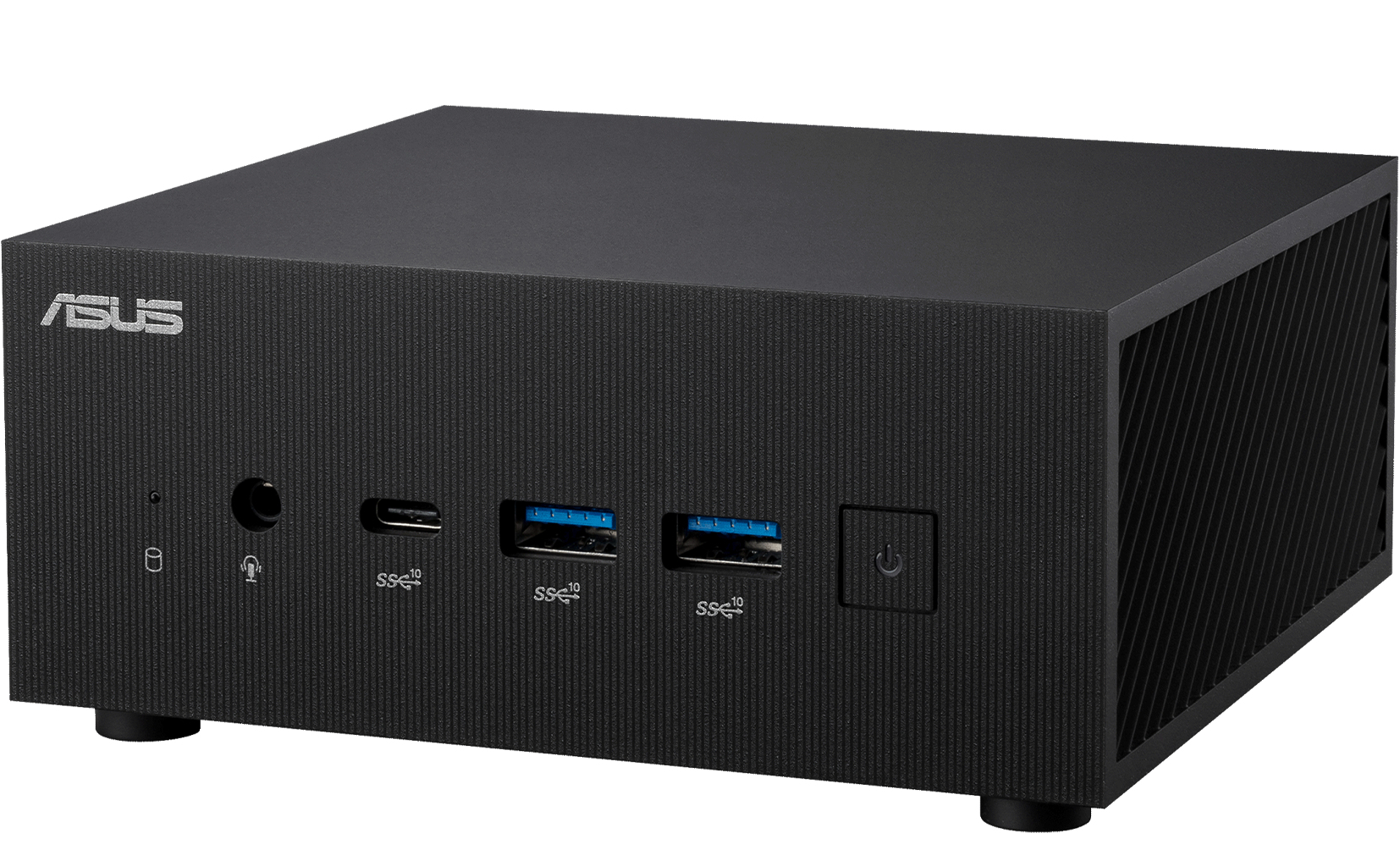

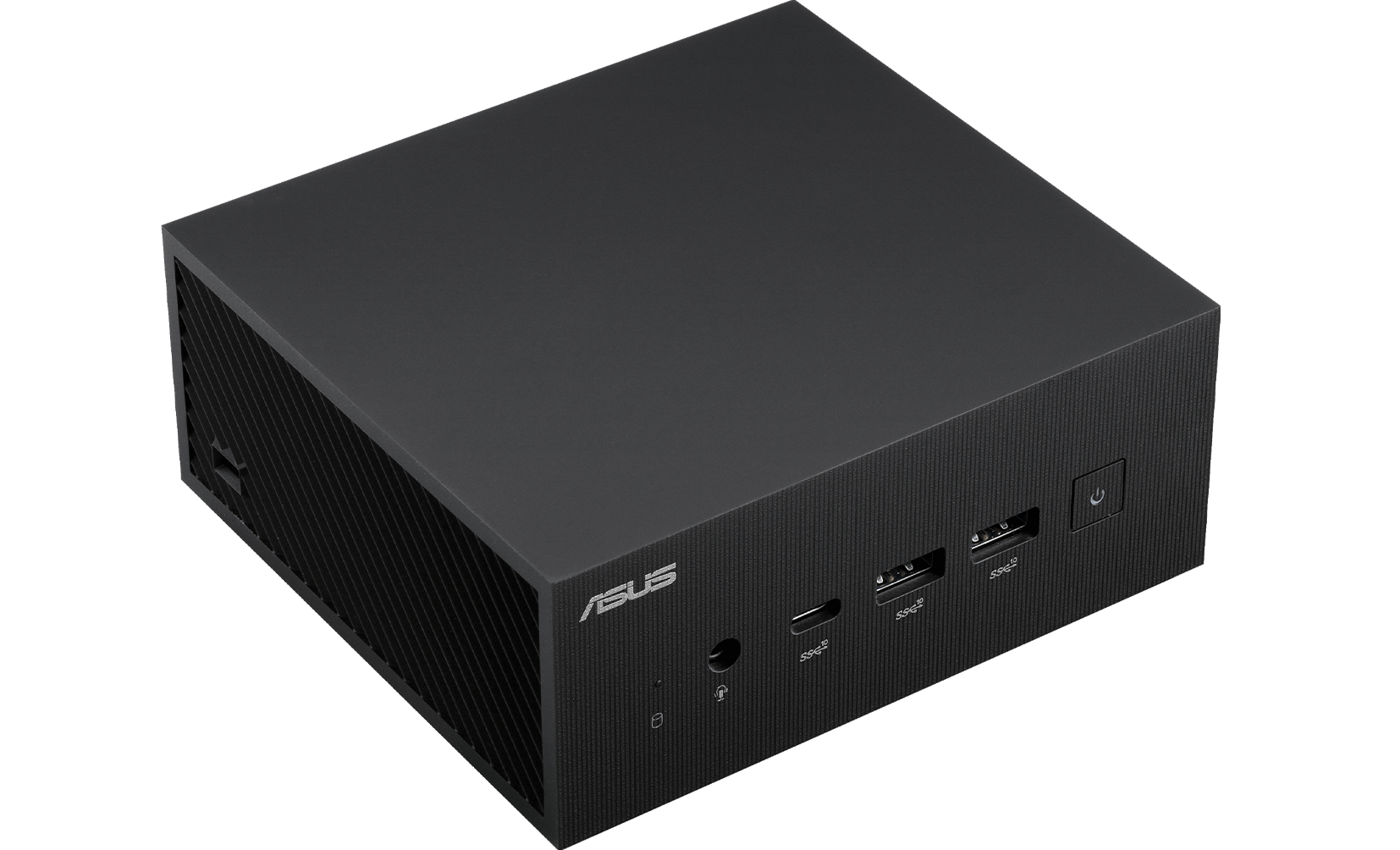

ExpertCenter PN64-S3249AD Intel® Core™ i3 i3-1220P
8 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black
Model PN64-S3249ADPart no. 90MS02G1-M007T0EAN 4711387137918
76 specifications
- ProcessorIntel® Core™ i3
- Memory8 GB
- Storage256 GB
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i3
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- PN64-S3249AD
- Part number
- 90MS02G1-M007T0
- EAN / UPC
- 4711387137918
- Also known as
- ASUS ExpertCenter PN64-S3249AD Intel® Core™ i3 i3-1220P 8 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black
Specifications
76 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 12th gen Intel® Core™ i3 |
| Processor model | i3-1220P |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 4.4 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 64 W |
| Processor base power | 28 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 4800 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 120 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Colour name | ECO Black |
| Volume | 0.6 L |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3251-CG |
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 130 mm |
| Height | 58 mm |
| Weight | 900 g |
Packaging content
| Specification | Value |
|---|---|
| VESA mount included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
