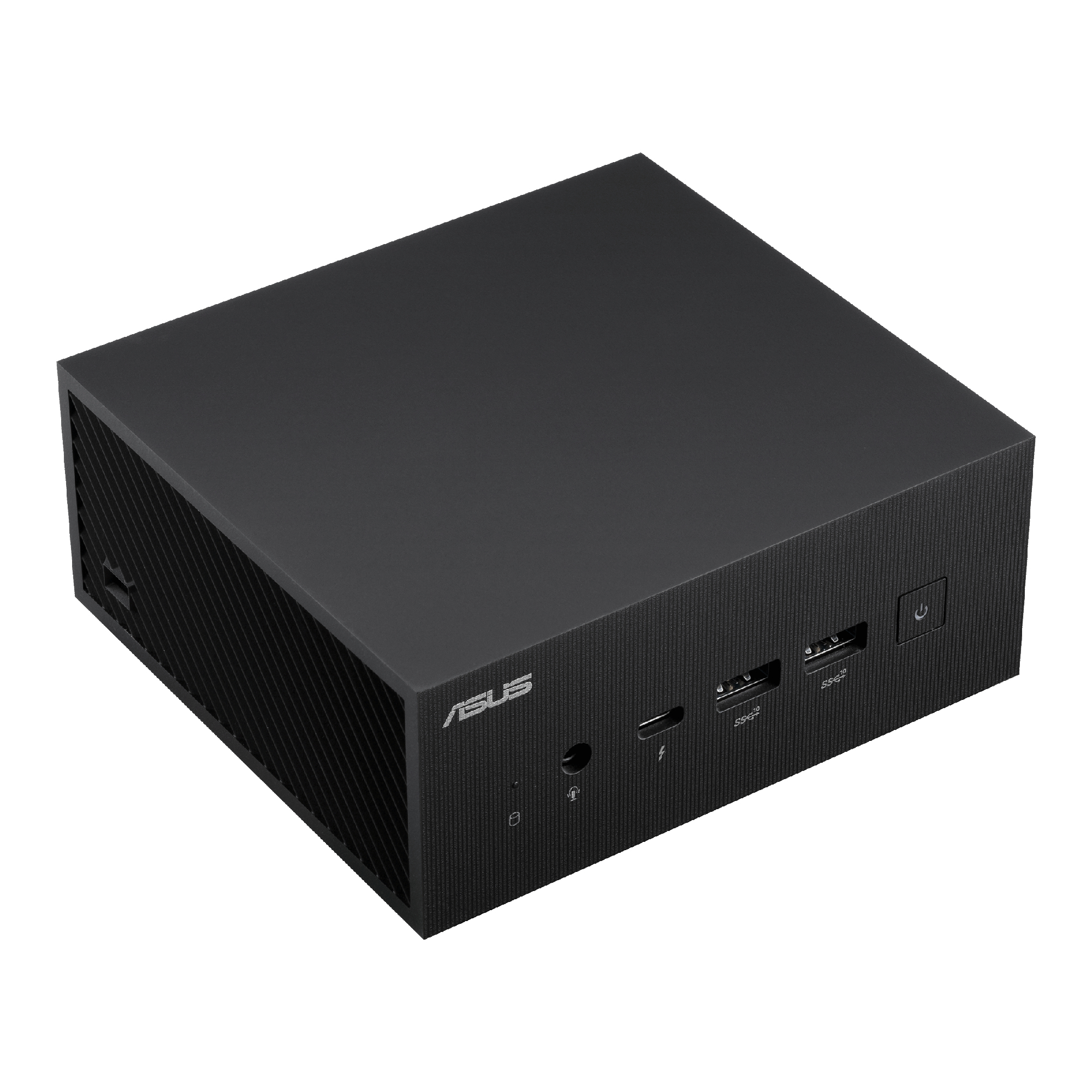

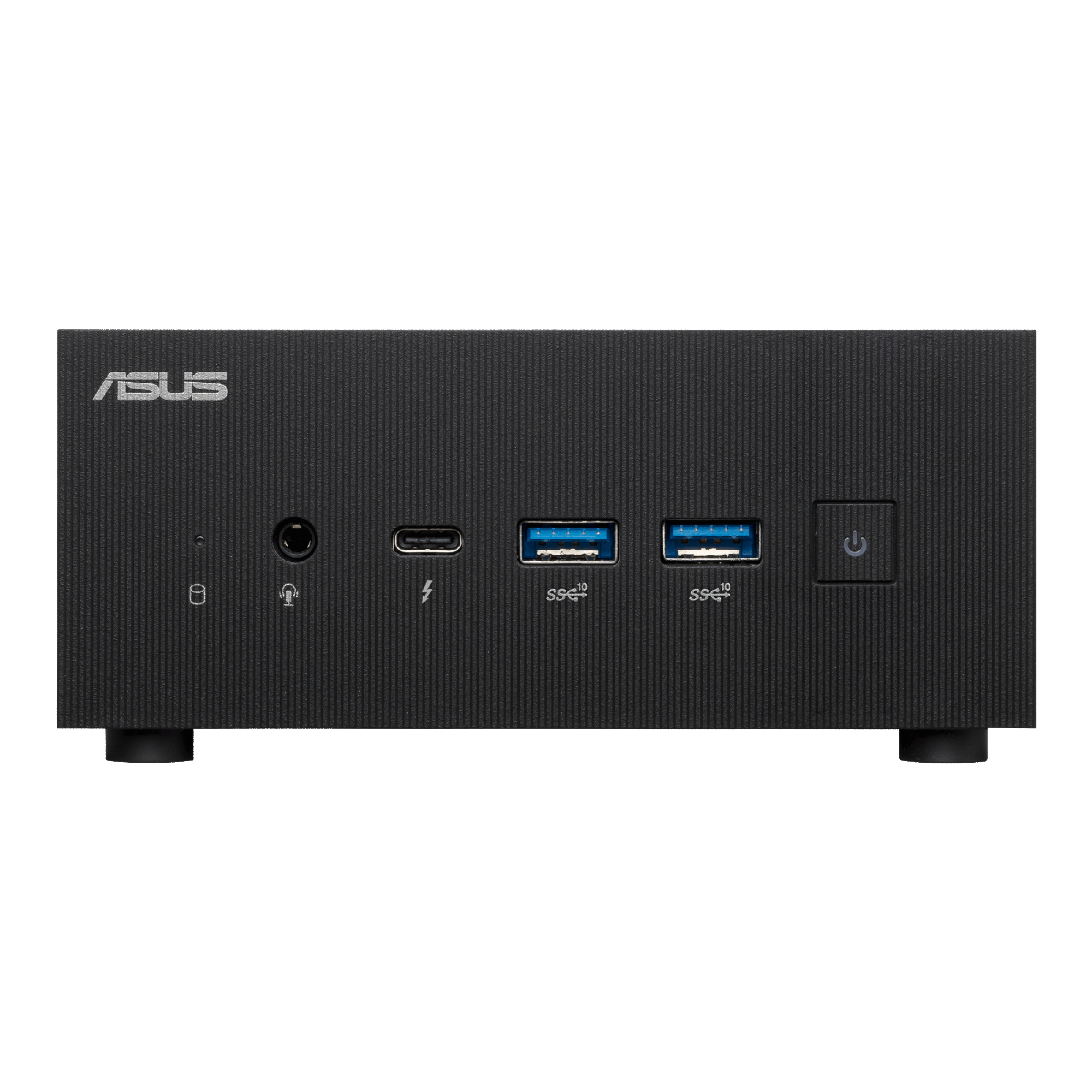

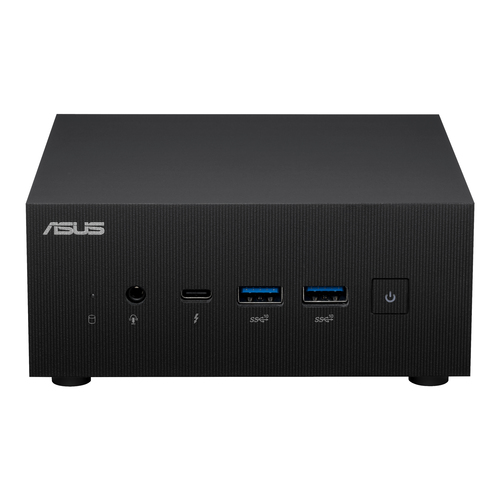

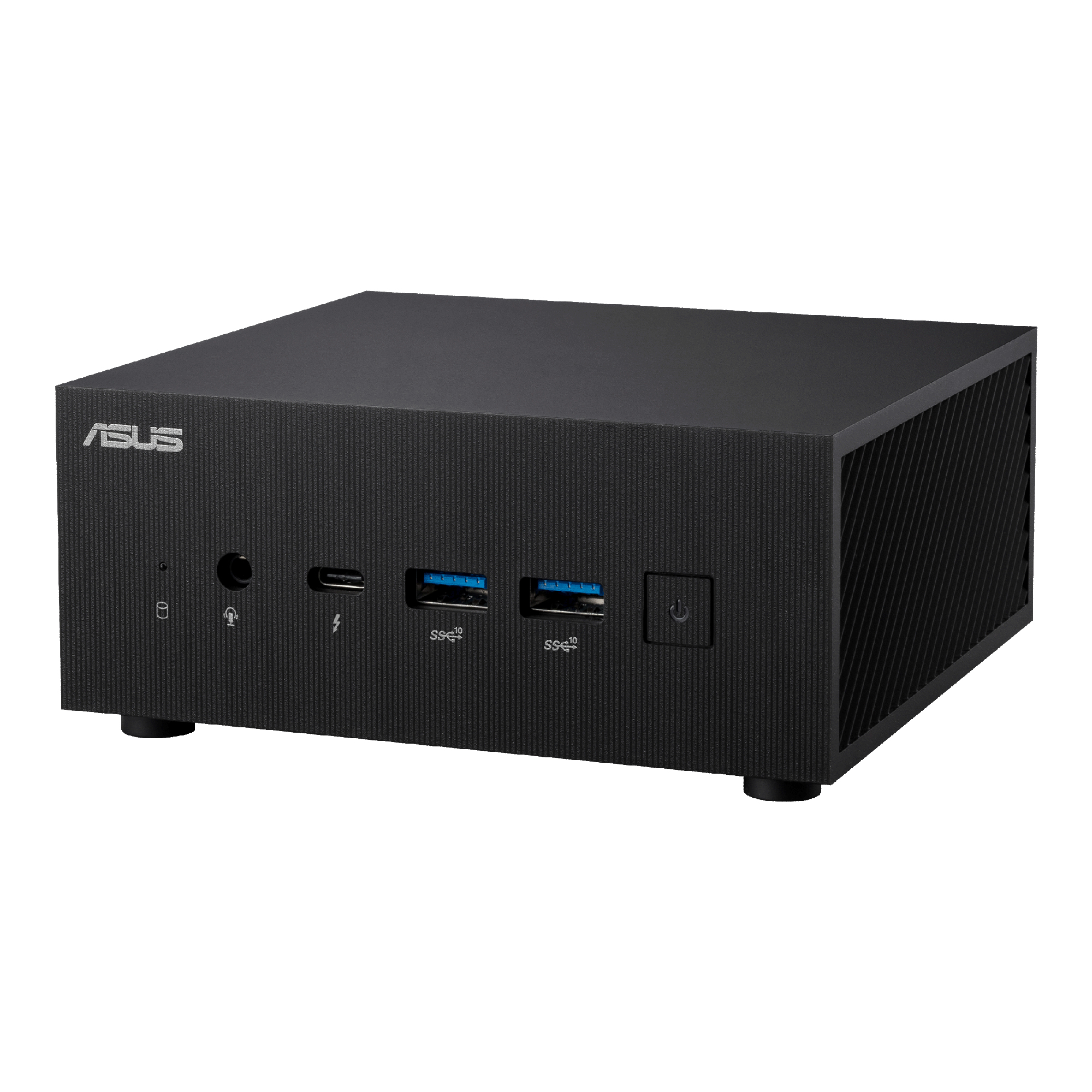

ExpertCenter PN64-E1-S5032AV Intel® Core™ i5 i5-13500H
8 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro Education Mini PC Black
Model PN64-E1-S5032AVPart no. 90MS02M1-M00100EAN 4711387163887
72 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage256 GB
- GraphicsNot available
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- PN64-E1-S5032AV
- Part number
- 90MS02M1-M00100
- EAN / UPC
- 4711387163887
- Also known as
- ASUS ExpertCenter PN64-E1-S5032AV Intel® Core™ i5 i5-13500H 8 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro Education Mini PC Black
Specifications
72 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor model | i5-13500H |
| Processor cores | 12 |
| Processor boost frequency | 4.7 GHz |
| Processor cache | 18 MB |
| Configurable TDP-down | 35 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 4800 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel I226-V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |

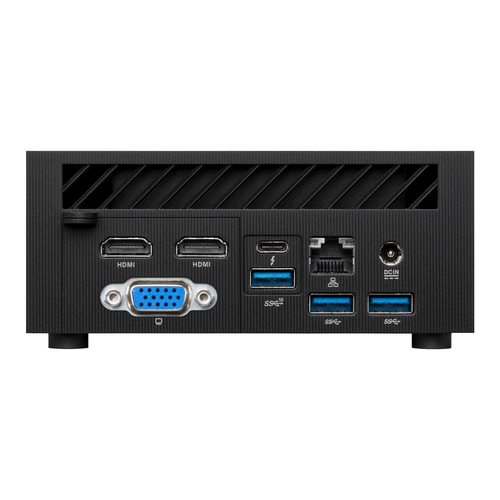

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 120 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Colour name | Eco Black |
| Volume | 0.6 L |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro Education |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 130 mm |
| Height | 56 mm |
| Weight | 900 g |
