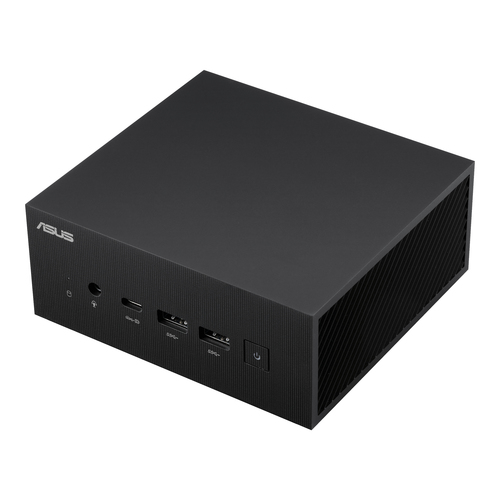

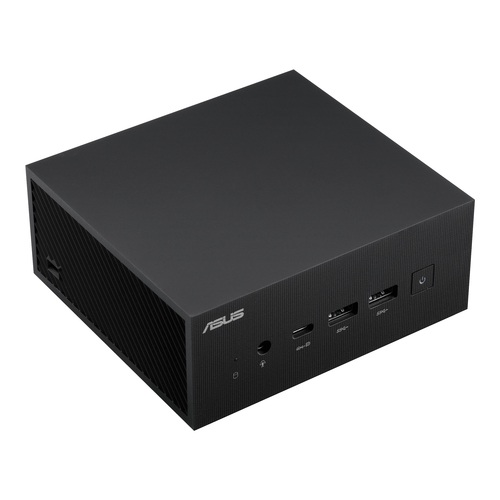

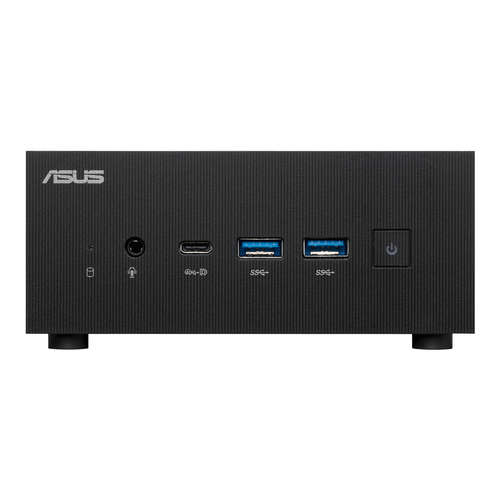

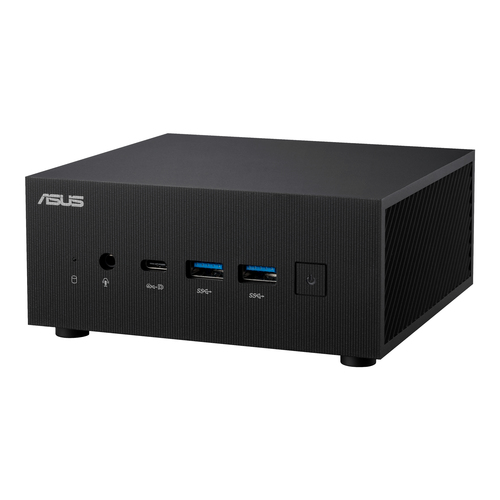

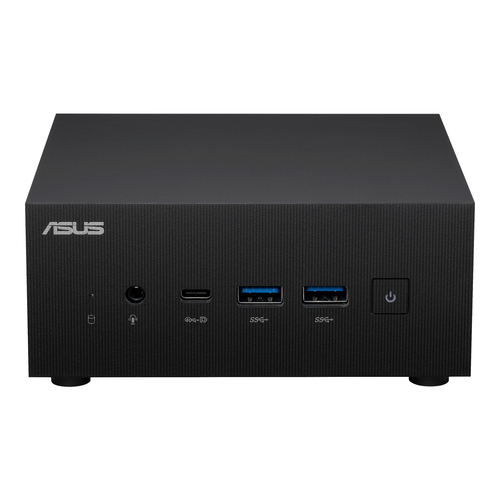

ExpertCenter PN53-S7065MD AMD Ryzen™ 7 7735H
16 GB DDR5-SDRAM 512 GB SSD Mini PC Black
Model PN53-S7065MDPart no. 90MS02H1-M00210EAN 197105197961
74 specifications
- ProcessorAMD Ryzen™ 7
- Memory16 GB
- Storage512 GB
- GraphicsNot available
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC
Overview
- Processor
- AMD Ryzen™ 7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- PN53-S7065MD
- Part number
- 90MS02H1-M00210
- EAN / UPC
- 197105197961, 4711387197967
- Also known as
- ASUS ExpertCenter PN53-S7065MD AMD Ryzen™ 7 7735H 16 GB DDR5-SDRAM 512 GB SSD Mini PC Black
Specifications
74 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 7000 Series |
| Processor model | 7735H |
| Processor cores | 8 |
| Processor boost frequency | 4.75 GHz |
| Processor frequency | 3.2 GHz |
| Processor cache | 20 MB |
| Processor cache type | L2 & L3 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 4800 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card model | AMD Radeon 680M |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |

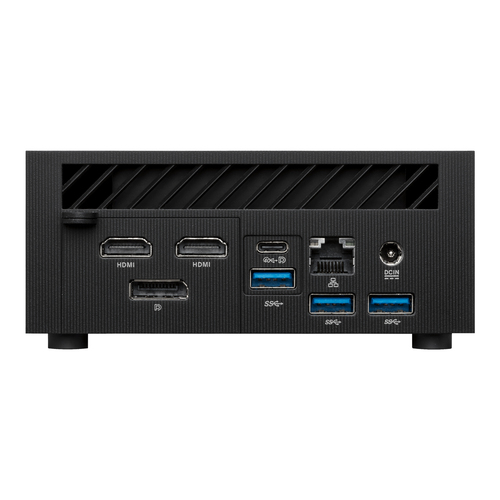

| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 150 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Colour name | Black |
| Volume | 0.6 L |
| Placement supported | Horizontal |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3251-CG |
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 130 mm |
| Height | 58 mm |
| Weight | 900 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 286 mm |
| Package depth | 175 mm |
| Package height | 68 mm |
| Package weight | 1.84 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
