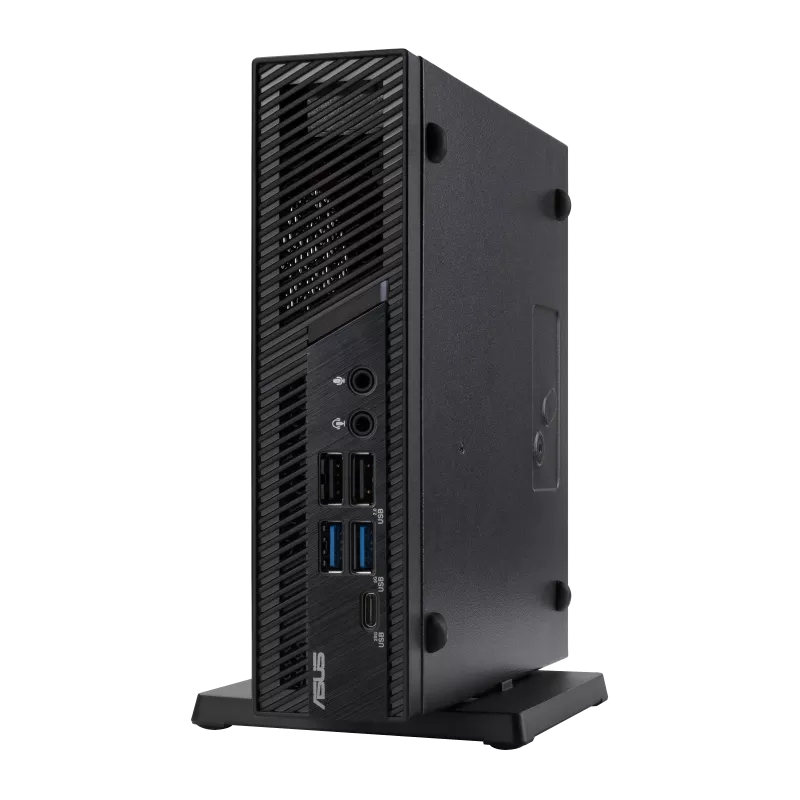

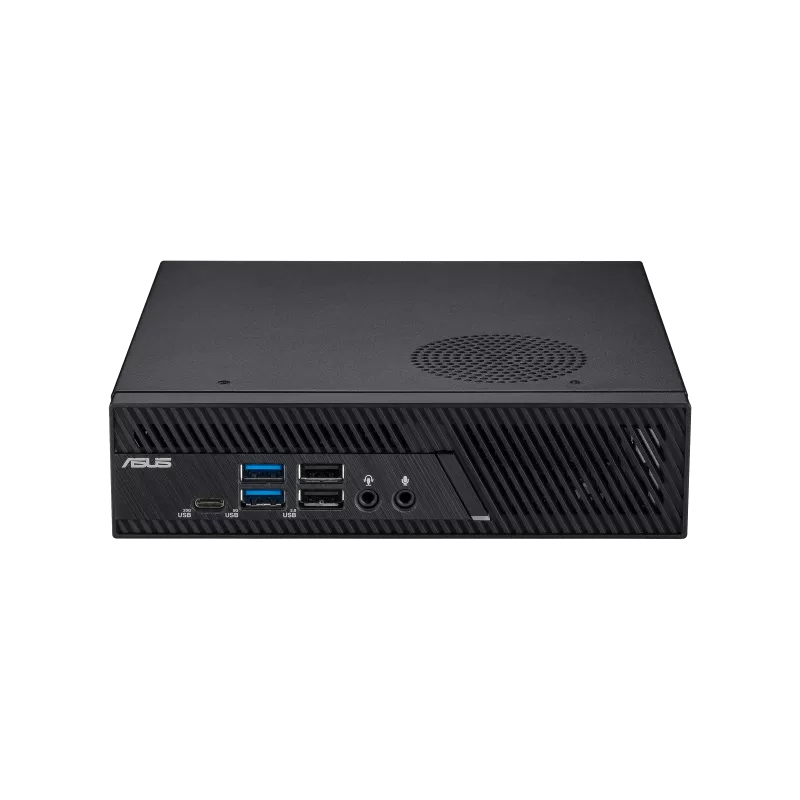

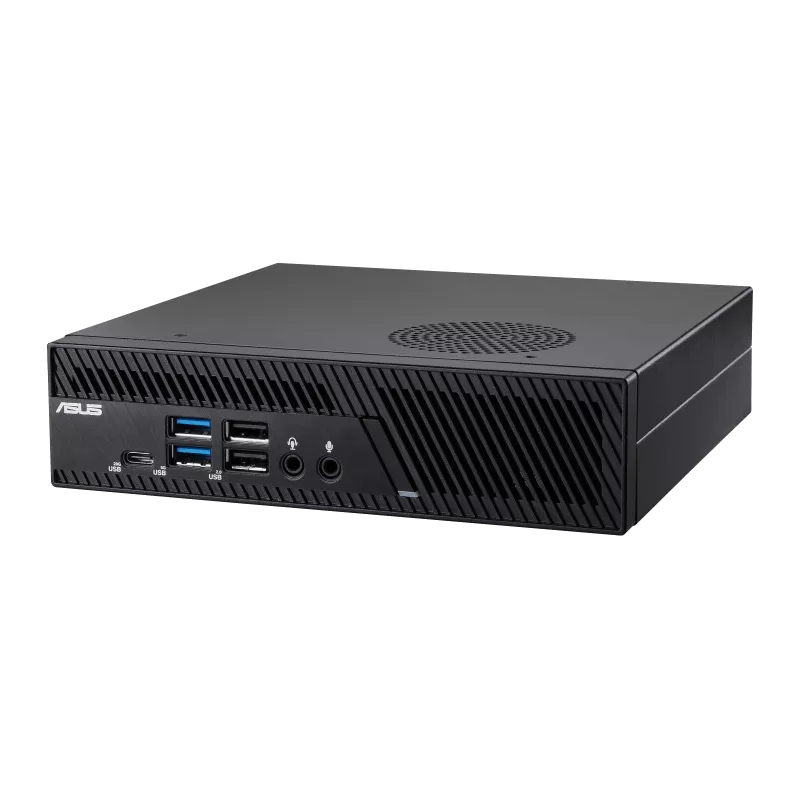

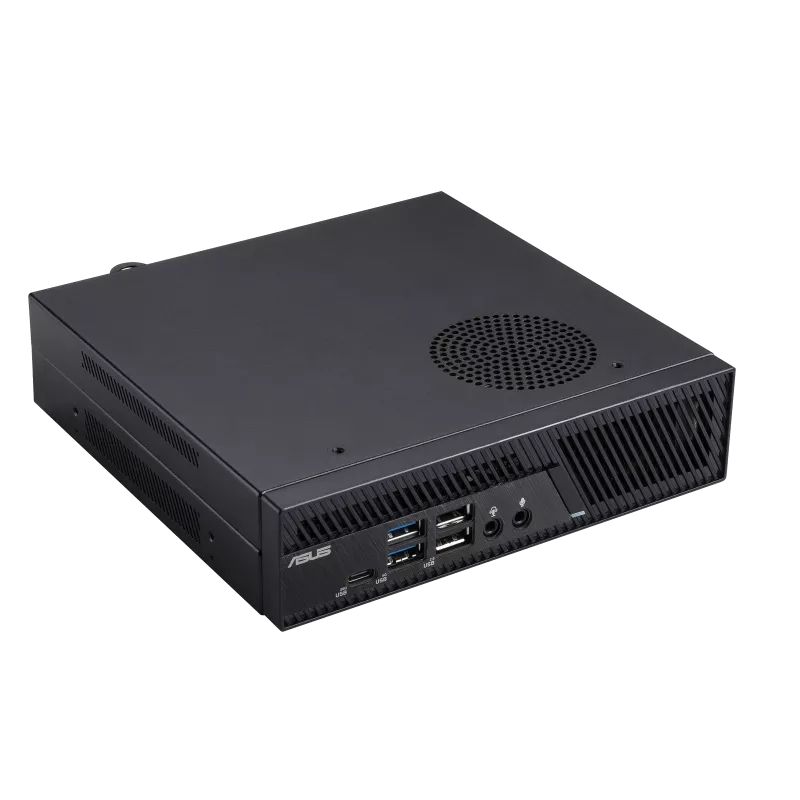

PB63-SYS582PX1TH Intel® Core™ i5 i5-13500
8 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black
Model PB63-SYS582PX1THPart no. 90MS02R1-M000J0EAN 197105313712
71 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage256 GB
- GraphicsNot available
- TypeMini PC
- OSWindows 11 Pro
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Type
- Mini PC
- OS
- Windows 11 Pro
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- PB63-SYS582PX1TH
- Part number
- 90MS02R1-M000J0
- EAN / UPC
- 197105313712
- Also known as
- ASUS PB63-SYS582PX1TH Intel® Core™ i5 i5-13500 8 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black
Specifications
71 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor model | i5-13500 |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor boost frequency | 4.8 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 154 W |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 150 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Colour name | Black |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 175 mm |
| Height | 44.2 mm |
| Weight | 1.18 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
