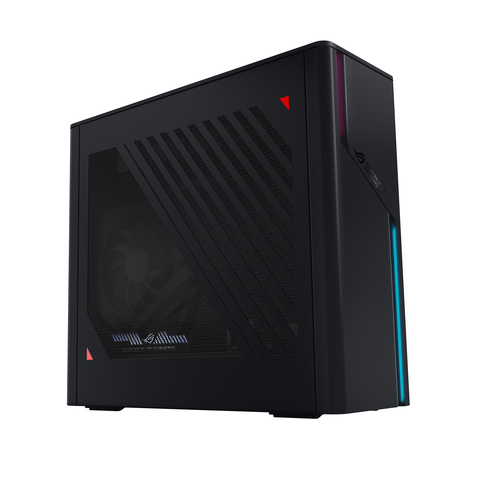

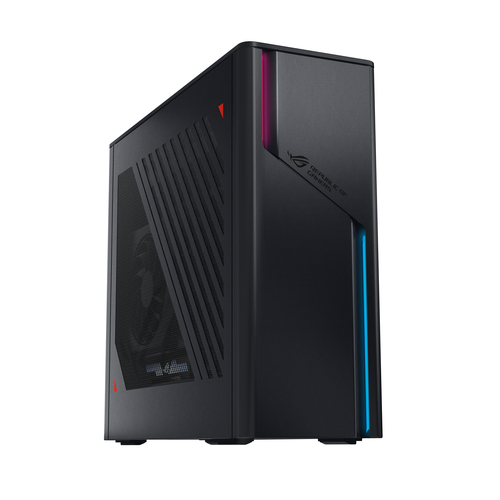

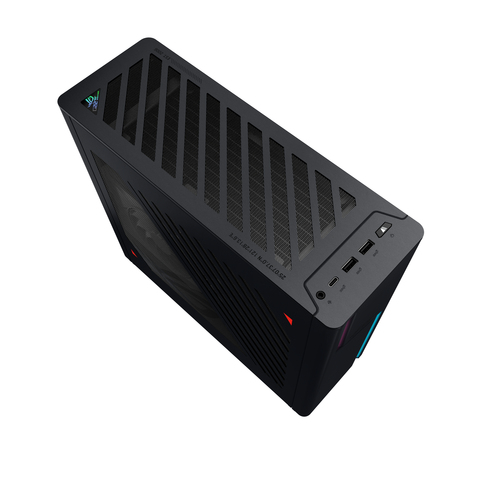

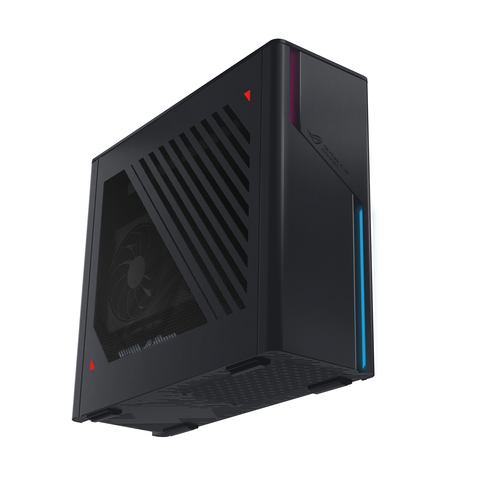

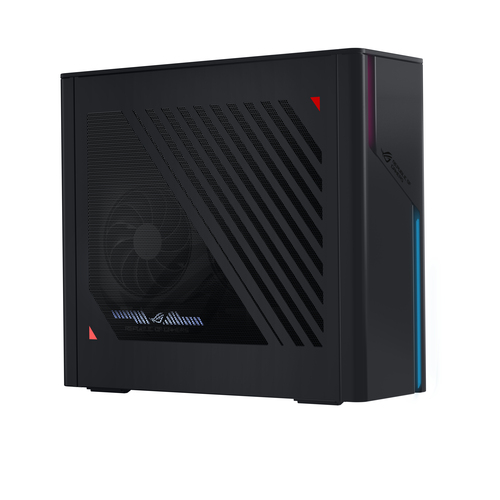

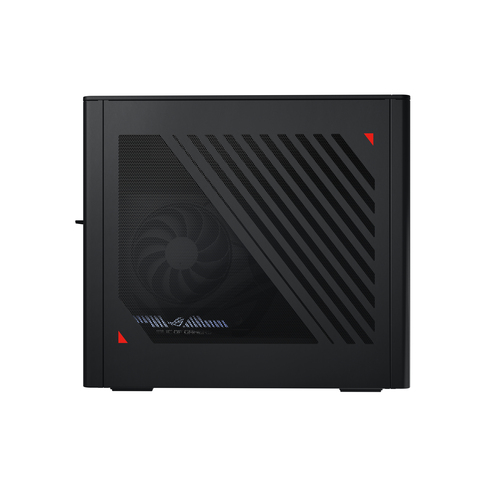

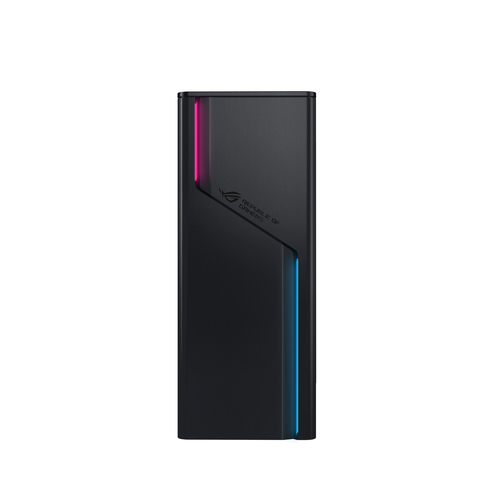

ROG G22CH -1470KF021W Intel® Core™ i7 i7-14700KF
16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4060 Windows 11 Home SFF PC Grey
Model G22CH-1470KF021WPart no. 90PF03T2-M00Y00EAN 4711387468708
76 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage1 TB
- GraphicsNVIDIA GeForce RTX 4060
- SpeedWi-Fi 6E (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 1 TB
- Graphics
- NVIDIA GeForce RTX 4060
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- G22CH-1470KF021W
- Part number
- 90PF03T2-M00Y00
- EAN / UPC
- 4711387468708
- Also known as
- ASUS ROG G22CH -1470KF021W Intel® Core™ i7 i7-14700KF 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4060 Windows 11 Home SFF PC Grey
Specifications
76 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700KF |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.6 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.5 GHz |
| Efficient-core Max Turbo Frequency | 4.3 GHz |
| Performance-core base frequency | 3.4 GHz |
| Efficient-core base frequency | 2.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 253 W |
| Processor base power | 125 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card model | Not available |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |

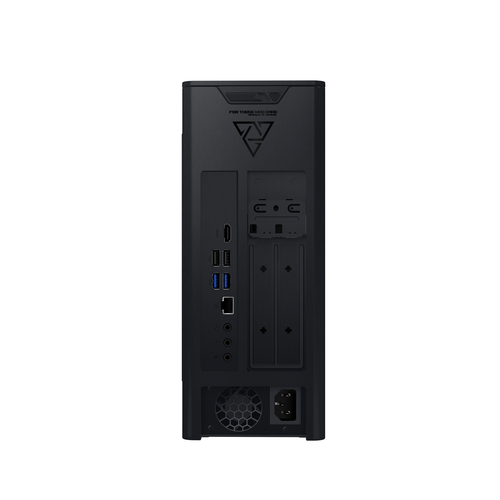

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0a |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 600 W |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Colour name | Extreme Dark Gray |
| Product colour | Grey |
| Viewing window | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required. |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 323 mm |
| Height | 286.9 mm |
| Weight | 8.4 kg |
