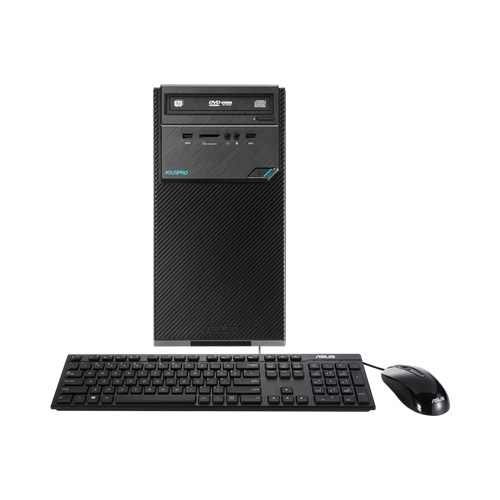

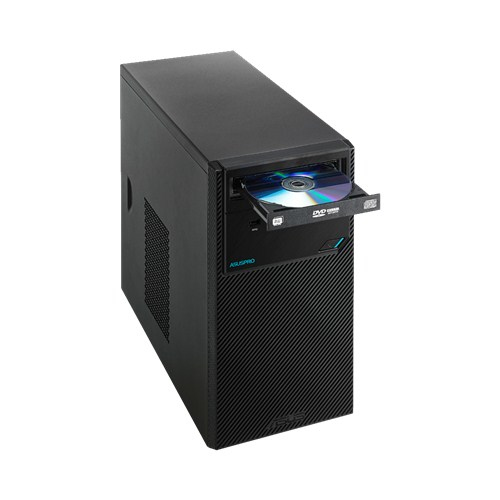

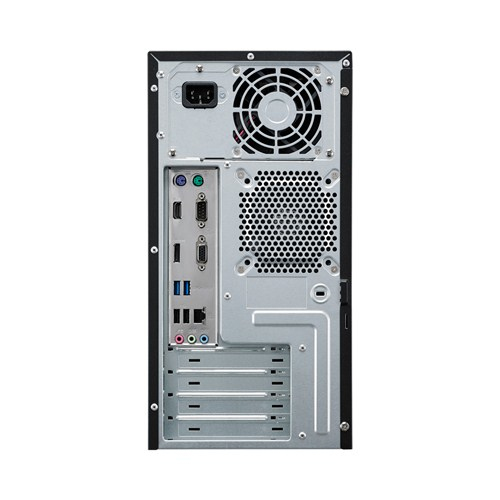

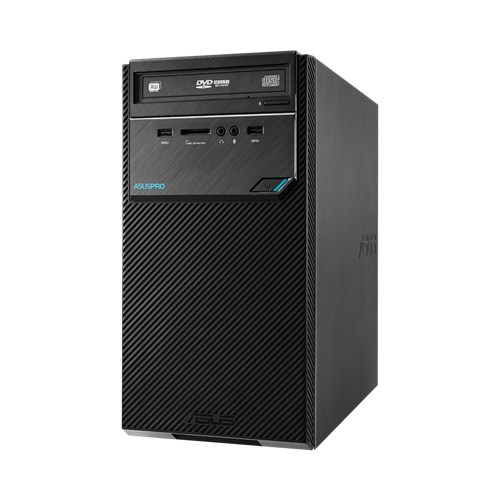

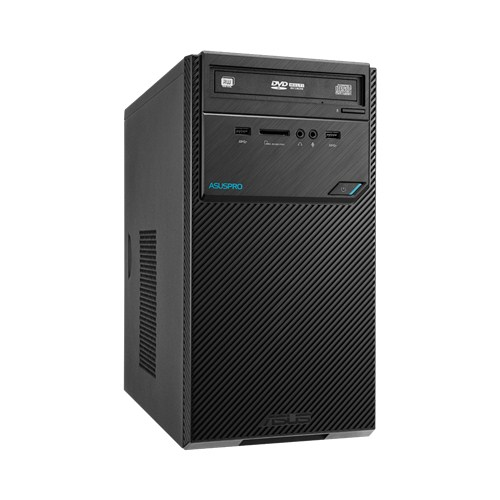

D320MT-I7B18013 PC Intel® Core™ i7 i7-7700
8 GB DDR4-SDRAM 1 TB HDD FreeDOS Desktop Black
Model D320MT-I7B18013
109 specifications
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i7
- Memory8 GB
- Storage1 TB
- GraphicsNot available
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i7
- Memory
- 8 GB
- Storage
- 1 TB
- Graphics
- Not available
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- D320MT-I7B18013
- Part number
- D320MT-I7B18013
- Also known as
- ASUS D320MT-I7B18013 PC Intel® Core™ i7 i7-7700 8 GB DDR4-SDRAM 1 TB HDD FreeDOS Desktop Black
Specifications
109 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor model | i7-7700 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 3.6 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI3 |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake |
| Thermal Design Power (TDP) | 65 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| PCI Express slots version | 3.0 |
| Processor socket | LGA 1151 (Socket H4) |
| Stepping | B0 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
| Memory voltage supported by processor | 1.35 V |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | DVD±RW |
| Storage media | HDD |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 630 |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x5912 |
| On-board graphics card OpenGL version | 4.4 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 0 |
| Microphone in | No |
| VGA (D-Sub) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 200 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | FreeDOS |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 97128 |
| Processor code | SR338 |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2015C |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Conflict-Free processor | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 398 mm |
| Depth | 181 mm |
| Height | 362 mm |
| Weight | 11 kg |
