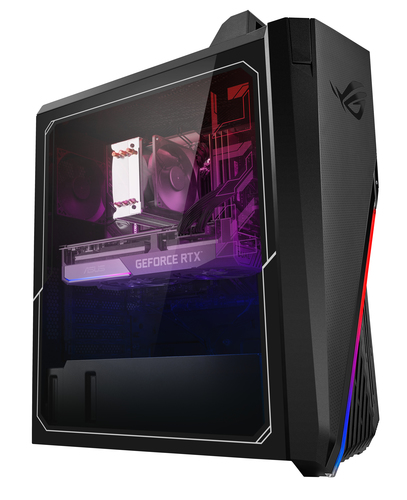

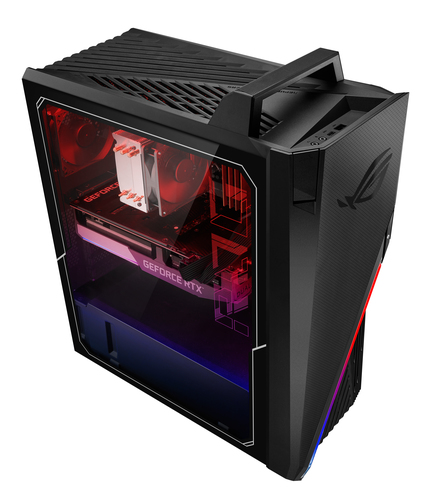

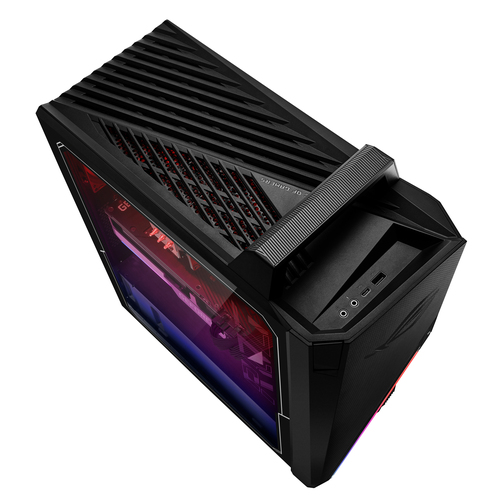

ROG G15DK-R5600X070T AMD Ryzen™ 5-5600X Processor
16GB , 2000GB HDD, 512GB SSD, NVIDIA GeForce RTX 3060
Model 90PF02Q1-M03050EAN 4711081158844
81 specifications
- ProcessorAMD Ryzen™ 5
- Memory16 GB
- Storage2.51 TB
- GraphicsNVIDIA GeForce RTX 3070
- SpeedWi-Fi 5 (802.11ac)
- TypePC
Overview
- Processor
- AMD Ryzen™ 5
- Memory
- 16 GB
- Storage
- 2.51 TB
- Graphics
- NVIDIA GeForce RTX 3070
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- 90PF02Q1-M03050
- Part number
- 90PF02Q1-M03050
- EAN / UPC
- 4711081158844
- Also known as
- ASUS ROG G15DK-R5600X070T AMD Ryzen™ 5-5600X Processor, 16GB , 2000GB HDD, 512GB SSD, NVIDIA GeForce RTX 3060
Specifications
81 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 |
| Processor generation | AMD Ryzen 5000 Series |
| Processor model | 5600X |
| Processor cores | 8 |
| Processor boost frequency | 4.6 GHz |
| Processor frequency | 3.7 GHz |
| Processor cache | 32 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2.51 TB |
| Optical drive type | No |
| Storage media | HDD+SSD |
| Total HDDs capacity | 2 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 3070 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card model | Not available |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 2 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard chipset | AMD B550 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| PS/2 ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 700 W |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Chassis type | Midi Tower |
| Colour name | Black |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 421 mm |
| Height | 498 mm |
| Weight | 11 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 260 mm |
| Package depth | 560 mm |
| Package height | 550 mm |
| Package weight | 14 kg |
