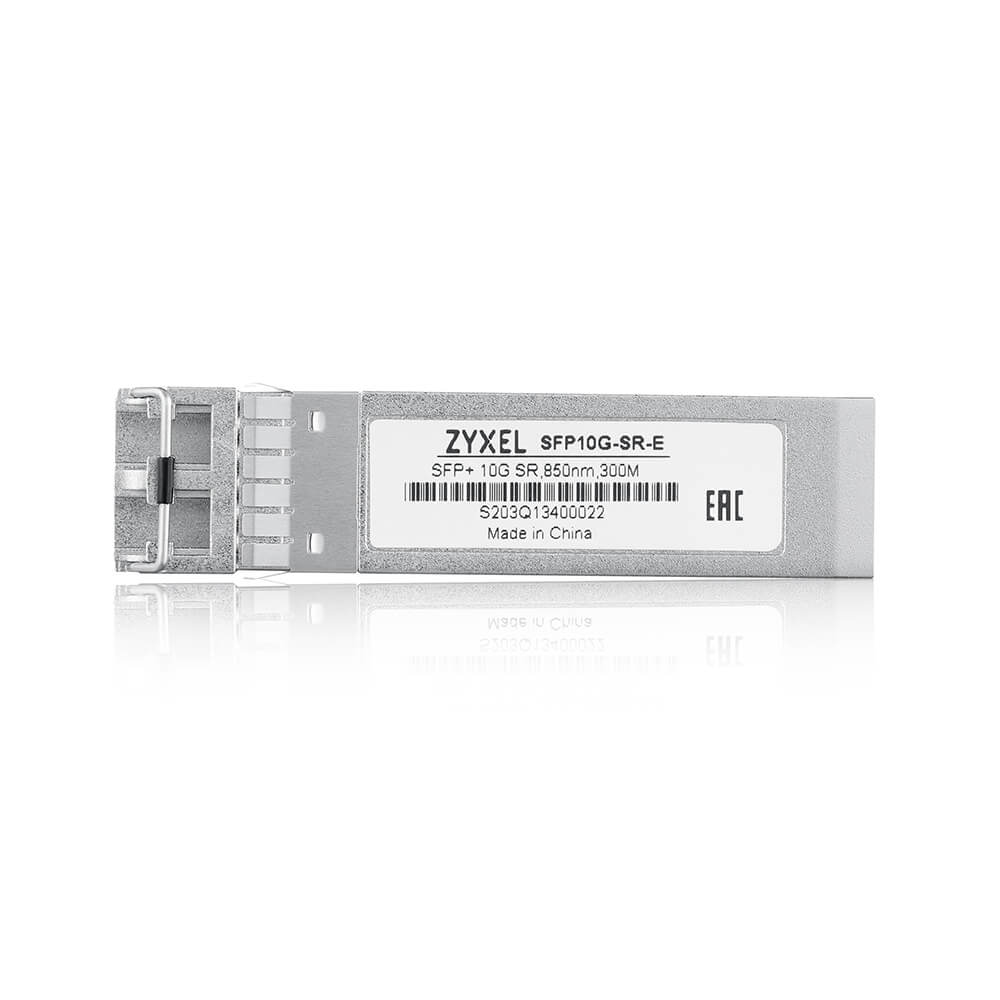

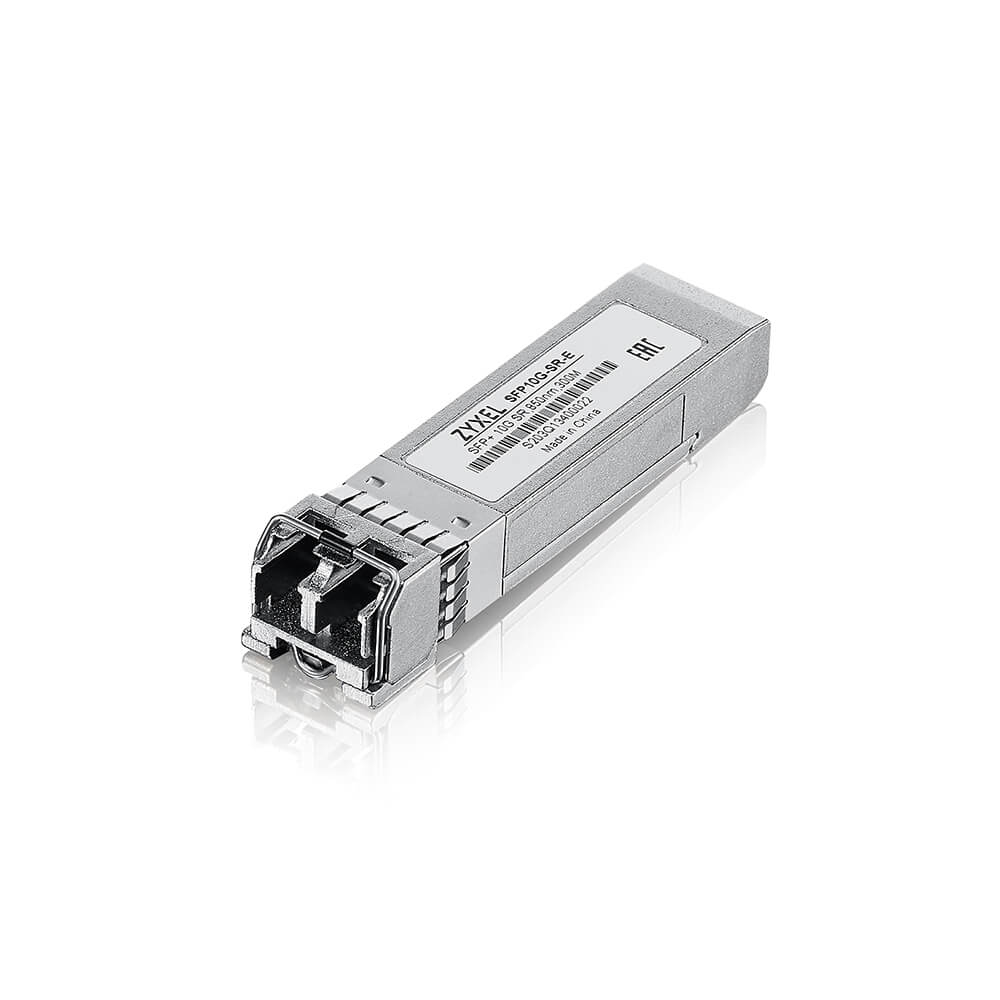

SFP10G-SR-E network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm
Model SFP10G-SR-EPart no. SFP10G-SR-E-ZZBD01FEAN 4718937619238
21 specifications
- Speed10000 Mbit/s
- Weight20 g
- ColourSteel
- SFP transceiver typeFiber optic
- Input voltage3.14-3.46 V
- Width14.8 mm
Overview
- Speed
- 10000 Mbit/s
- Weight
- 20 g
- Colour
- Steel
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.14-3.46 V
- Width
- 14.8 mm
- Brand
- Zyxel
- Category
- Network Transceiver Module
- Model
- SFP10G-SR-E
- Part number
- SFP10G-SR-E-ZZBD01F
- EAN / UPC
- 4718937619238
- Also known as
- Zyxel SFP10G-SR-E network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm
Specifications
21 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Tx power (min) | -1 dBmW |
| Tx power (max) | -8.2 dBmW |
| Rx power (min) | 0 dBmW |
| Rx power (max) | -11.1 dBmW |
Features
| Specification | Value |
|---|---|
| Product colour | Steel |
| Brand compatibility | Zyxel |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.14-3.46 V |
| Maximum current | 0.3 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14.8 mm |
| Depth | 56.5 mm |
| Height | 11.8 mm |
| Weight | 20 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
| Country of origin | China |
