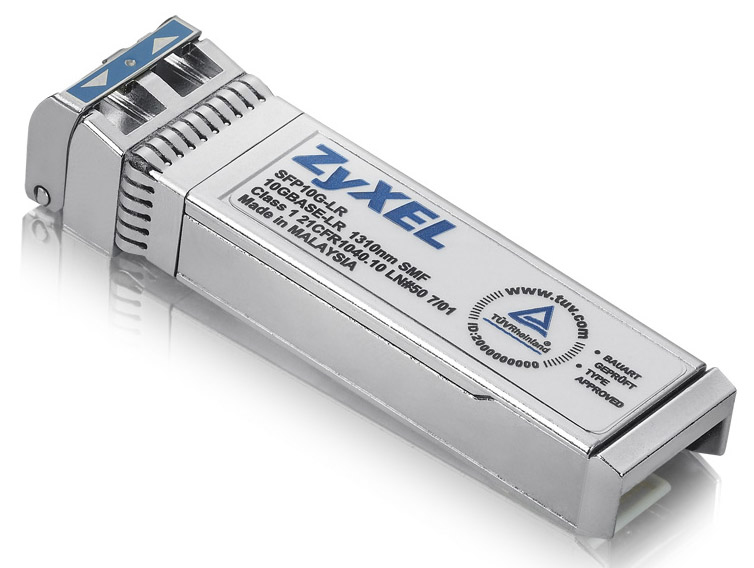

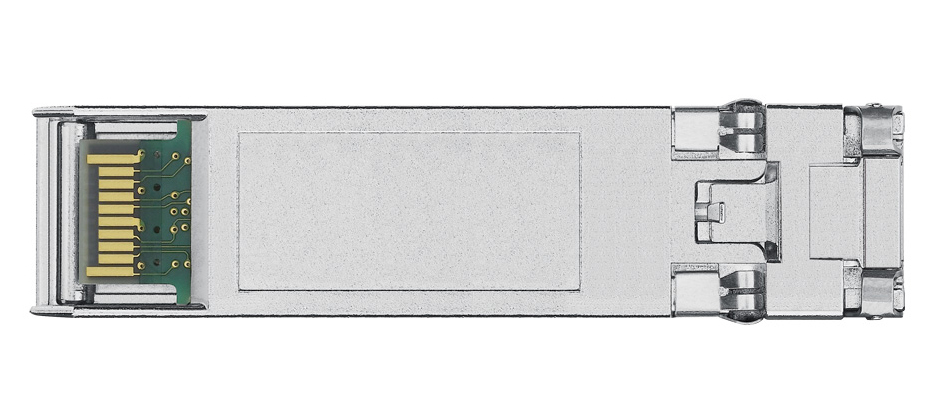

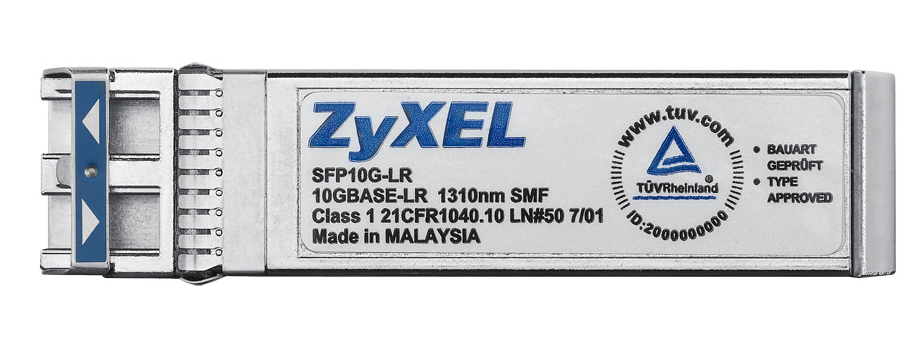

SFP10G-LR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Model SFP10G-LRPart no. SFP10G-LR-ZZ0101FEAN 4052305858073
15 specifications
- Speed10000 Mbit/s
- Weight20 g
- SFP transceiver typeFiber optic
- Hot-Plug supportYes
- Width14.8 mm
Overview
- Speed
- 10000 Mbit/s
- Weight
- 20 g
- SFP transceiver type
- Fiber optic
- Hot-Plug support
- Yes
- Width
- 14.8 mm
- Brand
- Zyxel
- Category
- Network Transceiver Module
- Model
- SFP10G-LR
- Part number
- SFP10G-LR-ZZ0101F
- EAN / UPC
- 4052305858073, 4718937567652, 5054629483497, 5715063736951
- Also known as
- Zyxel SFP10G-LR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Specifications
15 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | SFP+ |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber ports quantity | 2 |
Features
| Specification | Value |
|---|---|
| Hot-Plug support | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14.8 mm |
| Depth | 56.5 mm |
| Height | 11.8 mm |
| Weight | 20 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
