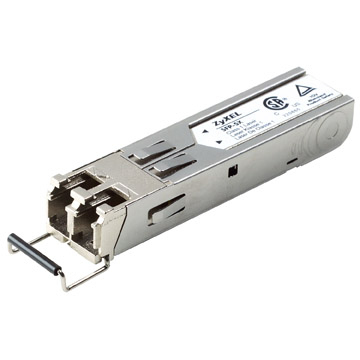

Zyxel SFP-SX network transceiver module 1000 Mbit/s 850 nm

Zyxel SFP-SX network transceiver module 1000 Mbit/s 850 nm

Model SFP-SXPart no. SFPSX-DEAN 7605591169414

19 specifications
  • Speed1000 Mbit/s
  • Plug and PlayYes
  • Input voltage3.15 V
  • Operating temperature (T-T)0 - 70 °C
  • Width56 mm
See all specifications

Overview

Speed
1000 Mbit/s
Plug and Play
Yes
Input voltage
3.15 V
Operating temperature (T-T)
0 - 70 °C
Width
56 mm
Brand
Zyxel
Model
SFP-SX
Part number
SFPSX-D
EAN / UPC
7605591169414
Also known as
Zyxel SFP-SX network transceiver module 1000 Mbit/s 850 nm

Specifications

19 specifications in 6 groups

Performance

Maximum data transfer rate1000 Mbit/s
Interface typeSFP
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
Maximum transfer distance550 m
Wavelength850 nm
Rx power (max)-17 dBmW
Auto MDI/MDI-XYes

Features

Plug and PlayYes

Power

Input voltage3.15 V
Maximum voltage3.45 V

Certificates

SafetyClass 1 Laser, 21 CFR 1040.10, 1040.11, CSA, TUV

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Width56 mm
Depth13.4 mm
Height12.5 mm
