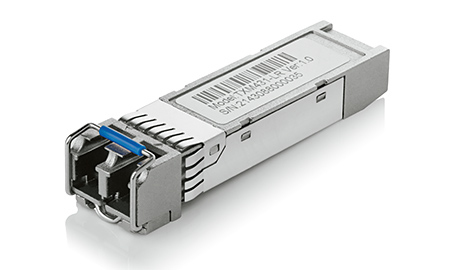

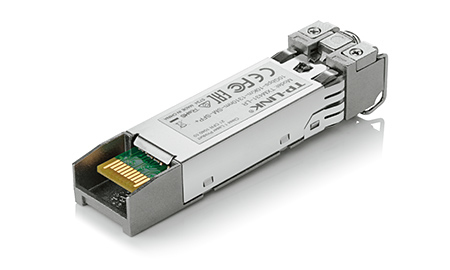

TP-Link TXM431-LR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm

TP-Link TXM431-LR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm

Model TXM431-LREAN 8459730218872

29 specifications
  • Speed10000 Mbit/s
  • ColourMetallic
  • SFP transceiver typeFiber optic
  • Input voltage3.3 V
  • Operating temperature (T-T)0 - 70 °C
  • Width55.4 mm
See all specifications

Overview

Speed
10000 Mbit/s
Colour
Metallic
SFP transceiver type
Fiber optic
Input voltage
3.3 V
Operating temperature (T-T)
0 - 70 °C
Width
55.4 mm
Brand
TP-Link
Model
TXM431-LR
Part numbers
TXM431-LR, TXM431-LR V1
EAN / UPC
8459730218872, 845973021887, 6935364021887, 6935364022082 +1 more
Also known as
TP-Link TXM431-LR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm

Specifications

29 specifications in 7 groups

Performance

SFP transceiver typeFiber optic
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Single-mode fiber (SMF) supportedYes
Fiber optic connectorLC (UPC)
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance10000 m
Wavelength1310 nm
Tx power (min)-8.2 dBmW
Tx power (max)0.5 dBmW
Rx power (min)-14.4 dBmW
Rx power (max)0.5 dBmW
Networking standardsIEEE 802.3ae
Duplex systemFull

Features

Product colourMetallic
Hot-Plug supportYes

Power

Input voltage3.3 V

Certificates

CertificationFCC, CE

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 80 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width55.4 mm
Depth14.6 mm
Height12.9 mm

Packaging data

Package width122.5 mm
Package depth81.5 mm
Package height38.5 mm
Package weight60 g
