10GBase-SR SFP+ LC Transceiver
Model TL-SM5110-SREAN 840030702402
25 specifications
- Speed10000 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Input voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
- Width14.5 mm
Overview
- Speed
- 10000 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 14.5 mm
- Brand
- TP-Link
- Category
- Network Transceiver Module
- Model
- TL-SM5110-SR
- Part number
- TL-SM5110-SR
- EAN / UPC
- 840030702402, 6935364006297, 6935364006303
- Also known as
- TP-Link 10GBase-SR SFP+ LC Transceiver
Specifications
25 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |

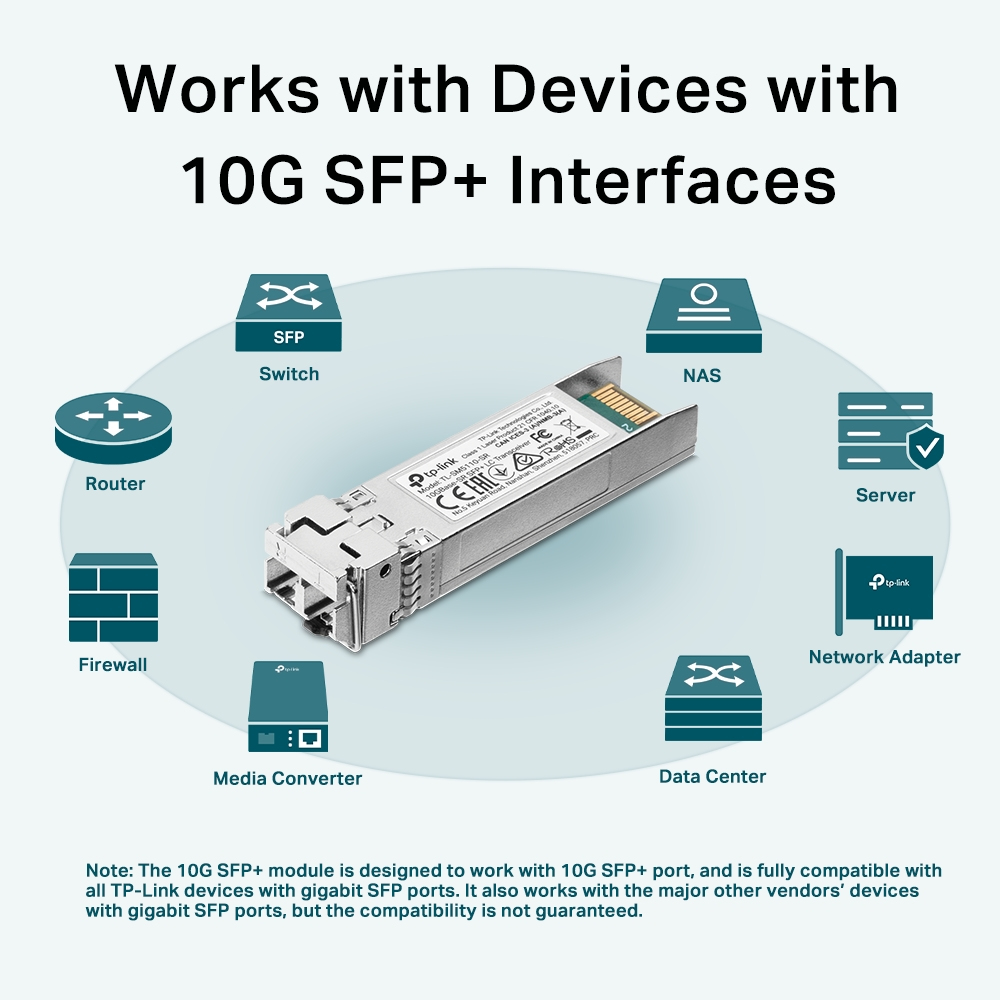

| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |

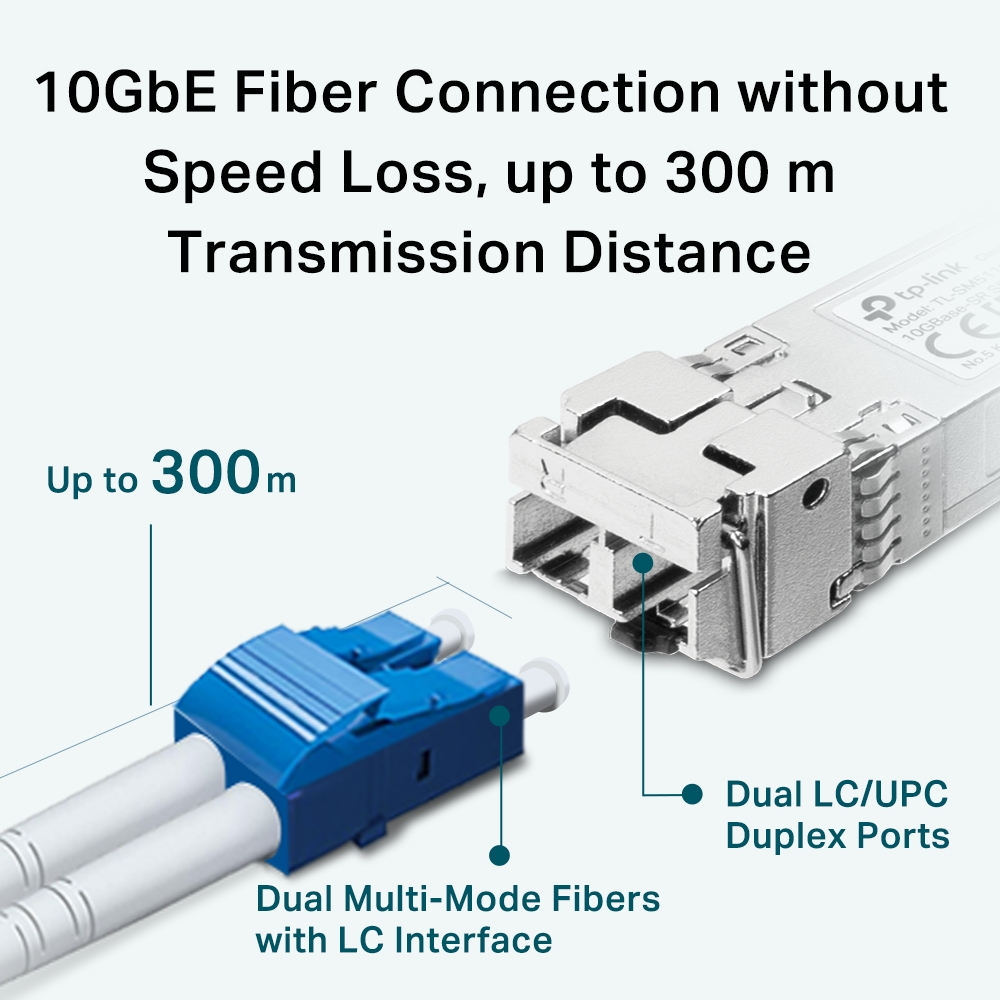

| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14.5 mm |
| Depth | 61.3 mm |
| Height | 12.2 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 81.5 mm |
| Package depth | 122.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
