Omada 10Gbase-LR SFP+ LC Transceiver
Model TL-SM5110-LRPart no. SM5110-LREAN 4897098682807
32 specifications
- Speed10000 Mbit/s
- SFP transceiver typeFiber optic
- Hot-Plug supportYes
- Input voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
- Width56.7 mm
Overview
- Speed
- 10000 Mbit/s
- SFP transceiver type
- Fiber optic
- Hot-Plug support
- Yes
- Input voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 56.7 mm
- Brand
- TP-Link
- Category
- Network Transceiver Module
- Model
- TL-SM5110-LR
- Part number
- SM5110-LR
- EAN / UPC
- 4897098682807, 840030702808, 4897098682739, 5704174995630 +1 more
- Also known as
- TP-Link Omada 10Gbase-LR SFP+ LC Transceiver
Specifications
32 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |

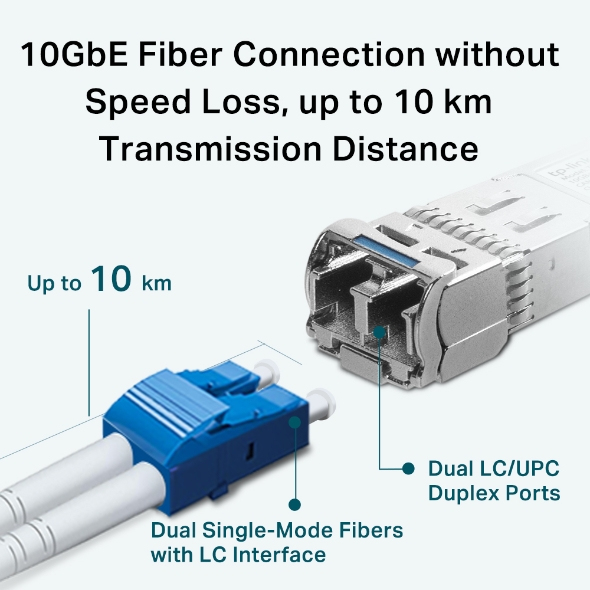

| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3ae |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Brand compatibility | TP-Link |

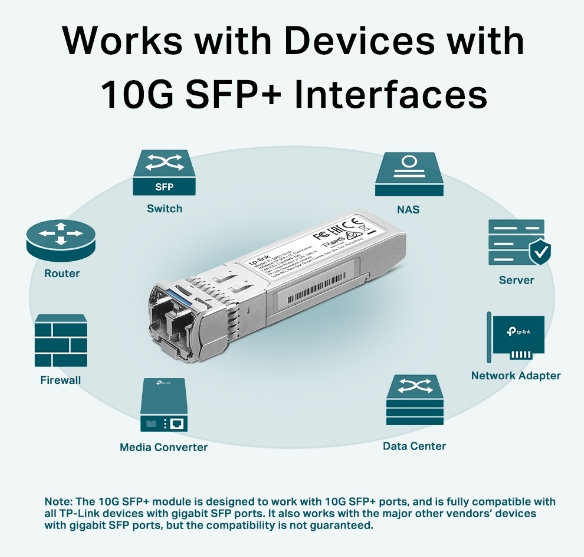

| Compatible products | Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more. |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|

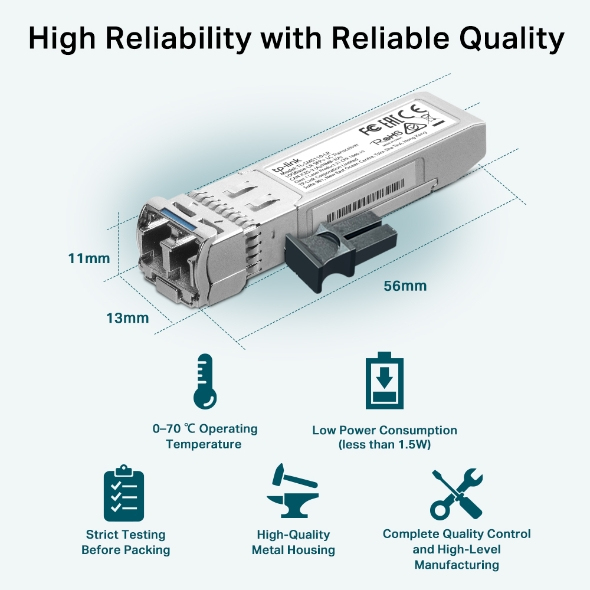

| Width | 56.7 mm |
| Depth | 13.9 mm |
| Height | 10.3 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 81.5 mm |
| Package depth | 122.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
