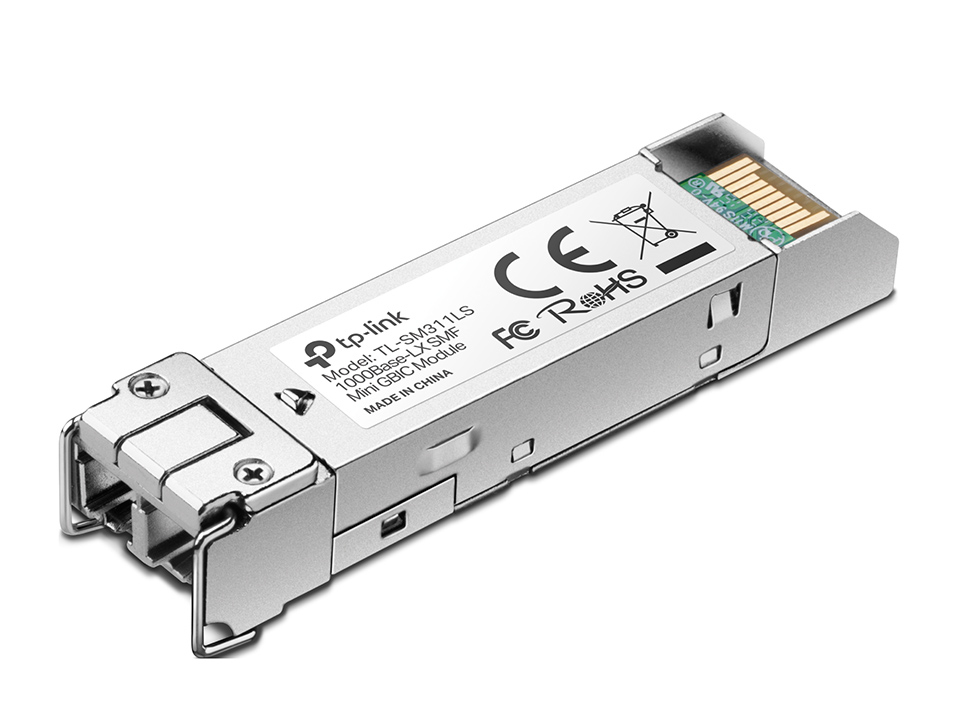

TL-SM311LS V3
Model TL-SM311LS V3
23 specifications
- Speed1250 Mbit/s
- ColourMetallic
- SFP transceiver typeFiber optic
- Input voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 1250 Mbit/s
- Colour
- Metallic
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- TP-Link
- Category
- Network Transceiver Module
- Model
- TL-SM311LS V3
- Part number
- TL-SM311LS V3
- Also known as
- TP-Link TL-SM311LS V3 network transceiver module Fiber optic 1250 Mbit/s 1310 nm
Specifications
23 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3z |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Brand compatibility | TP-Link |
| Compatible products | T3700 series, T2700 series, T2600 series, T2500 series, T1700 series, T1600 series, T1500 series, 2/3/5 series switches and MC220L |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 81.5 mm |
| Package depth | 122.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
