Omada SFP 1000BASE-SX LC MiniGBIC Mm
Model TL-SM311LMEAN 5053959235295
30 specifications
- Speed1250 Mbit/s
- ColourMetallic
- SFP transceiver typeFiber optic
- Input voltage3.3 V
- Minimum operating temperature0 °C
- Width55.4 mm
Overview
- Speed
- 1250 Mbit/s
- Colour
- Metallic
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Minimum operating temperature
- 0 °C
- Width
- 55.4 mm
- Brand
- TP-Link
- Category
- Network Transceiver Module
- Model
- TL-SM311LM
- Part number
- TL-SM311LM
- EAN / UPC
- 5053959235295, 021111376143, 115971107426, 168141555190 +12 more
- Also known as
- TP-Link Omada SFP 1000BASE-SX LC MiniGBIC Mm
Specifications
30 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | mini-GBIC/SFP |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |

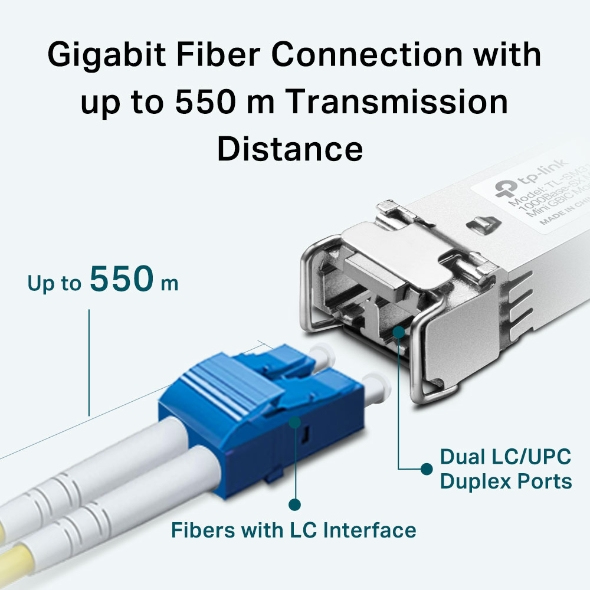

| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3z |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, CE |
Operational conditions
| Specification | Value |
|---|---|

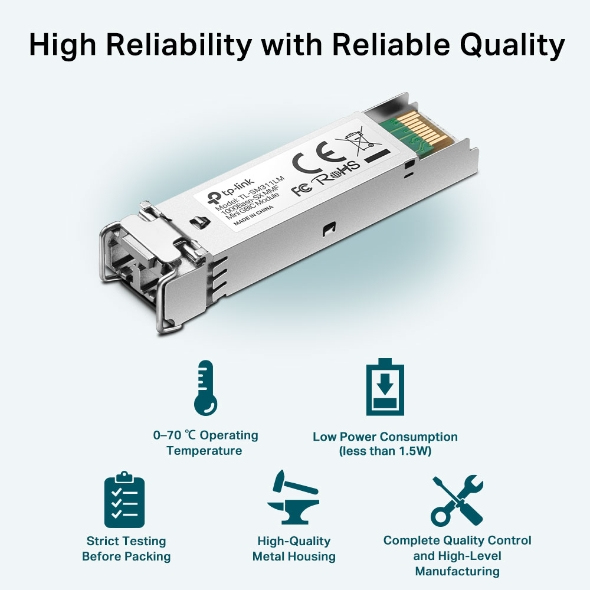

| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55.4 mm |
| Depth | 13.7 mm |
| Height | 12.9 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| User guide | Yes |
| Package width | 38 mm |
| Package depth | 207 mm |
| Package height | 38 mm |
| Package weight | 110 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
