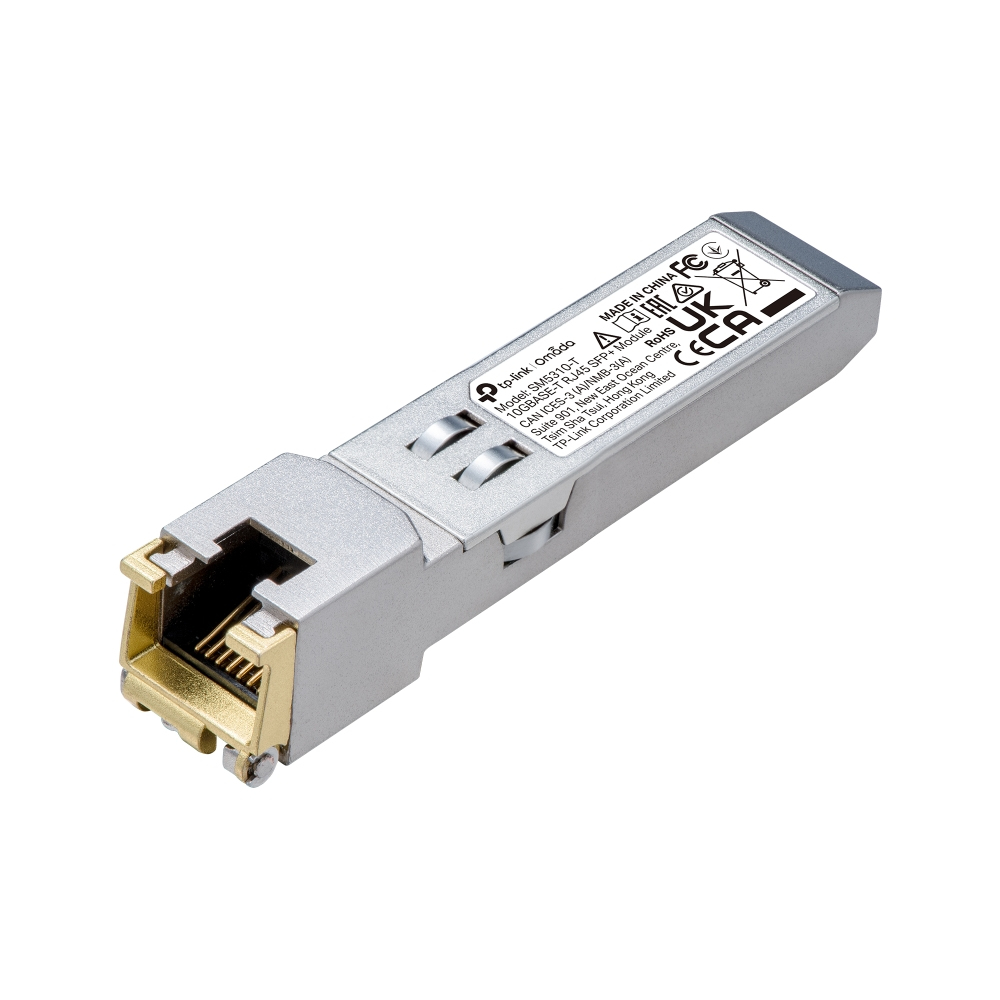

Omada 10GBASE-T RJ45 SFP+ Module
Model SM5310-TEAN 5715063675281
28 specifications
- Speed10300 Mbit/s
- TypeSFP+
- ColourSilver
- SFP transceiver typeCopper
- Input voltage3.3 V
- Minimum operating temperature0 °C
Overview
- Speed
- 10300 Mbit/s
- Type
- SFP+
- Colour
- Silver
- SFP transceiver type
- Copper
- Input voltage
- 3.3 V
- Minimum operating temperature
- 0 °C
- Brand
- TP-Link
- Category
- Network Transceiver Module
- Model
- SM5310-T
- Part numbers
- SM5310-T, SM5310-T(UN)
- EAN / UPC
- 5715063675281
- Also known as
- TP-Link Omada 10GBASE-T RJ45 SFP+ Module
Specifications
28 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 10300 Mbit/s |
| Interface type | RJ-45 |
| Maximum transfer distance | 100 m |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz |
| Copper ethernet cabling technology | 10GBASE |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Metal |
| Form factor | SFP+ |
| Hot-Plug support | Yes |
| Easy to install | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 67.4 mm |
| Depth | 13.8 mm |
| Height | 13.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 81.5 mm |
| Package depth | 122.5 mm |
| Package height | 38.5 mm |
| Package weight | 2.87 kg |
