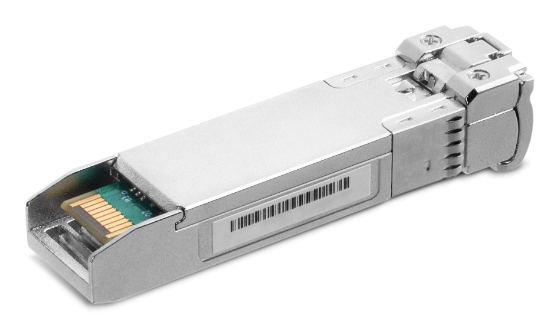

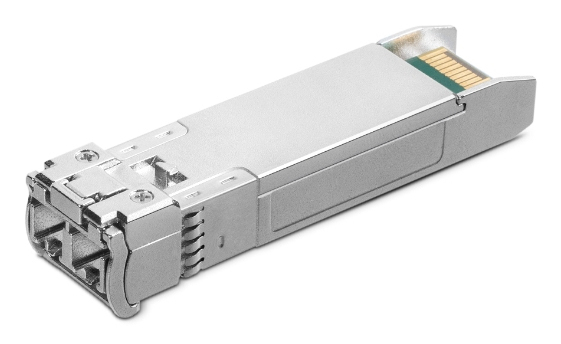

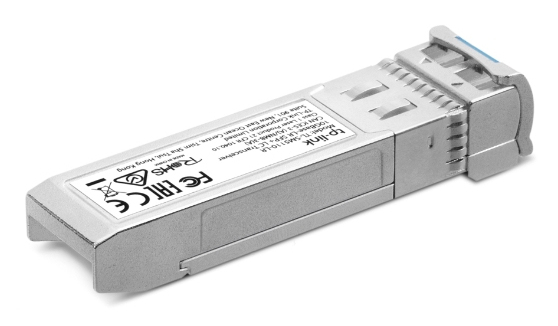

SM5110-LR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Model SM5110-LRPart no. SM5110-LR(8-PACK)EAN 8885020622140
20 specifications
- Speed10000 Mbit/s
- SFP transceiver typeFiber optic
- Hot-swapYes
- Input voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
- Width56.7 mm
Overview
- Speed
- 10000 Mbit/s
- SFP transceiver type
- Fiber optic
- Hot-swap
- Yes
- Input voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 56.7 mm
- Brand
- TP-Link
- Category
- Network Transceiver Module
- Model
- SM5110-LR
- Part numbers
- SM5110-LR(8-PACK), SM5110-LR(UN)
- EAN / UPC
- 8885020622140
- Also known as
- TP-Link SM5110-LR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Specifications
20 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Hot-swap | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56.7 mm |
| Depth | 13.9 mm |
| Height | 10.3 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 8 pc(s) |
