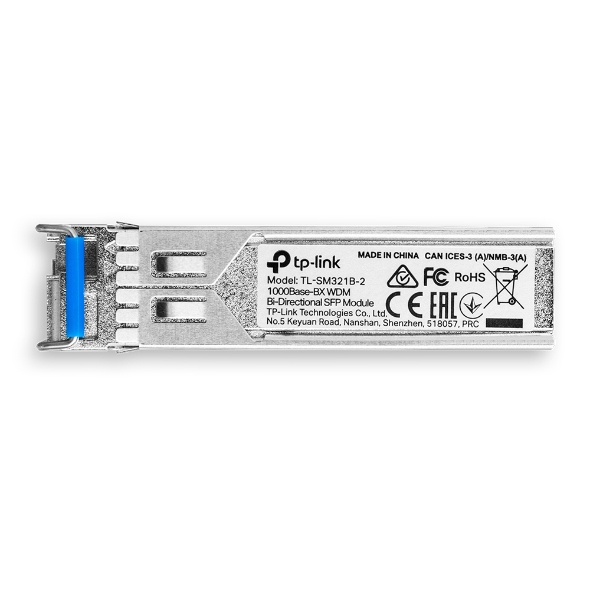

TP-Link SM321B-2(UN) network transceiver module Fiber optic 1250 Mbit/s SFP

SM321B-2(UN) network transceiver module Fiber optic 1250 Mbit/s SFP

Model SM321B-2(UN)

30 specifications

Speed1250 Mbit/s
ColourMetallic
SFP transceiver typeFiber optic
Operating temperature (T-T)0 - 70 °C
Width55.4 mm

See all specifications

Overview

Speed: 1250 Mbit/s
Colour: Metallic
SFP transceiver type: Fiber optic
Operating temperature (T-T): 0 - 70 °C
Width: 55.4 mm

Brand: TP-Link
Category: Network Transceiver Module
Model: SM321B-2(UN)
Part number: SM321B-2(UN)
Also known as: TP-Link SM321B-2(UN) network transceiver module Fiber optic 1250 Mbit/s SFP

Specifications

30 specifications in 8 groups

Performance

Specification	Value
SFP transceiver type	Fiber optic
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	No
Fiber optic connector	LC
Fiber cable diameters supported (core/cladding)	9/125 µm
SFP transceiver standard	BX
Maximum transfer distance	1000 m
Tx wavelength (max)	1310 nm
Rx wavelength (max)	1550 nm
Networking standards	IEEE 802.3z
Wavelength-division multiplexing (WDM)	Yes

Features

Specification	Value
Product colour	Metallic

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	FCC, CE

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	55.4 mm
Depth	14.6 mm
Height	12.9 mm

Packaging content

Specification	Value
Quantity per pack	1 pc(s)

Packaging data

Specification	Value
User guide	Yes
Package width	81.5 mm
Package depth	122.5 mm
Package height	38.5 mm
Package weight	60 g

Logistics data

Specification	Value
Harmonized System (HS) code	85369010
