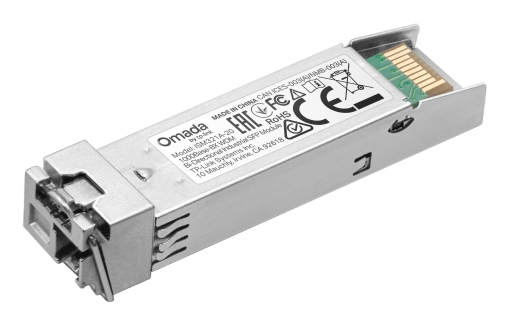

ISM321A-20 network transceiver module Fiber optic 1250 Mbit/s SFP
Model ISM321A-20EAN 840460600897
21 specifications
- Speed1250 Mbit/s
- ColourGrey
- SFP transceiver typeFiber optic
- Input voltage3.3 V
- Minimum operating temperature-40 °C
- Width56.4 mm
Overview
- Speed
- 1250 Mbit/s
- Colour
- Grey
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Minimum operating temperature
- -40 °C
- Width
- 56.4 mm
- Brand
- TP-Link
- Category
- Network Transceiver Module
- Model
- ISM321A-20
- Part number
- ISM321A-20
- EAN / UPC
- 840460600897
- Also known as
- TP-Link ISM321A-20 network transceiver module Fiber optic 1250 Mbit/s SFP
Specifications
21 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 20000 m |
| Ethernet interface type | 1.25 Gigabit Ethernet |
| Networking standards | IEEE 802.3z |
Features
| Specification | Value |
|---|---|
| Product colour | Grey |
| Hot-swap | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56.4 mm |
| Depth | 13.4 mm |
| Height | 11 mm |
