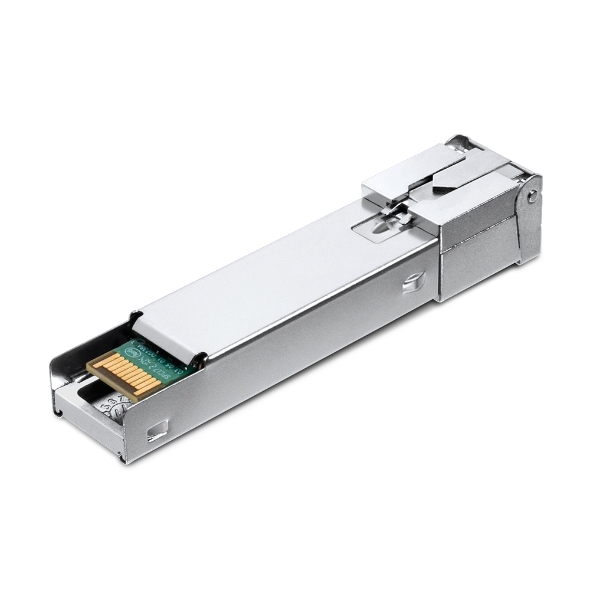

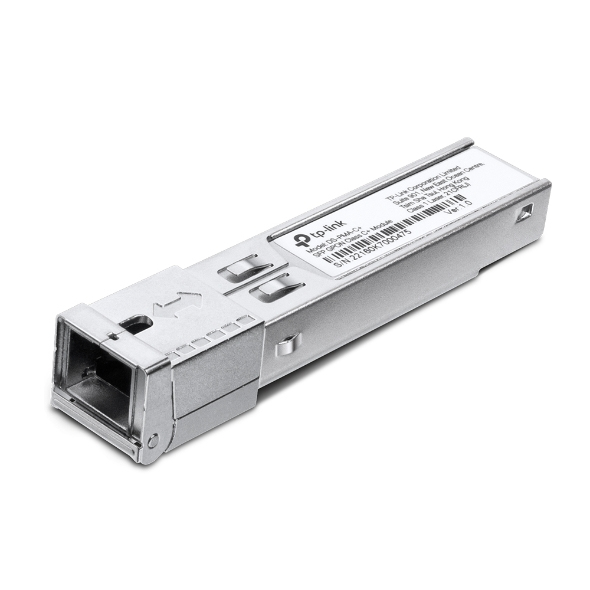

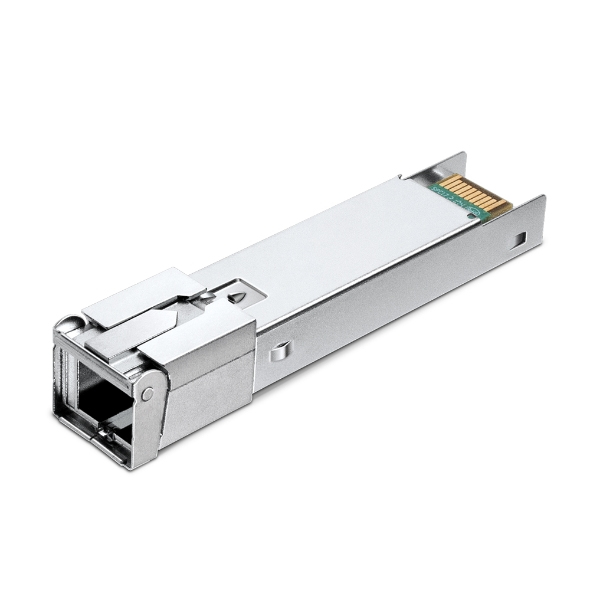

DS-PMA-C+(UN) network transceiver module Fiber optic 2488.32 Mbit/s SFP 1490 nm
Model DS-PMA-C+(UN)
16 specifications
- Speed2488.32 Mbit/s
- ColourStainless steel
- SFP transceiver typeFiber optic
- Input voltage3.3 V
Overview
- Speed
- 2488.32 Mbit/s
- Colour
- Stainless steel
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Brand
- TP-Link
- Category
- Network Transceiver Module
- Model
- DS-PMA-C+(UN)
- Part number
- DS-PMA-C+(UN)
- Also known as
- TP-Link DS-PMA-C+(UN) network transceiver module Fiber optic 2488.32 Mbit/s SFP 1490 nm
Specifications
16 specifications in 3 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 2488.32 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 20000 m |
| Wavelength | 1490 nm |
| Tx wavelength (max) | 1490 nm |
| Rx wavelength (max) | 1310 nm |
| Tx power (min) | 3 dBmW |
| Tx power (max) | 7 dBmW |
| Rx power (min) | -30 dBmW |
| Rx power (max) | -12 dBmW |
Features
| Specification | Value |
|---|---|
| Product colour | Stainless steel |
| Hot-swap | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
