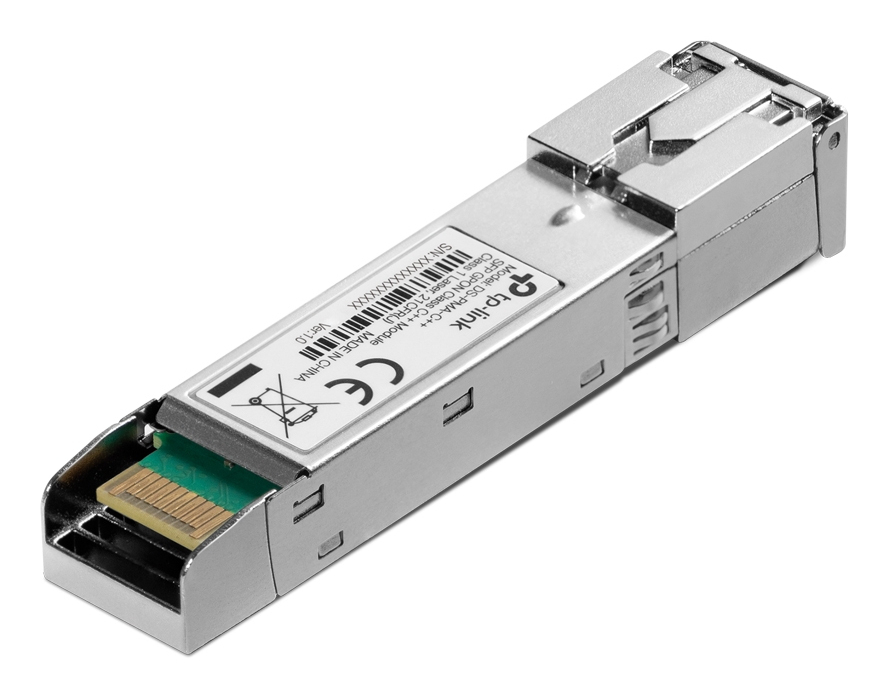

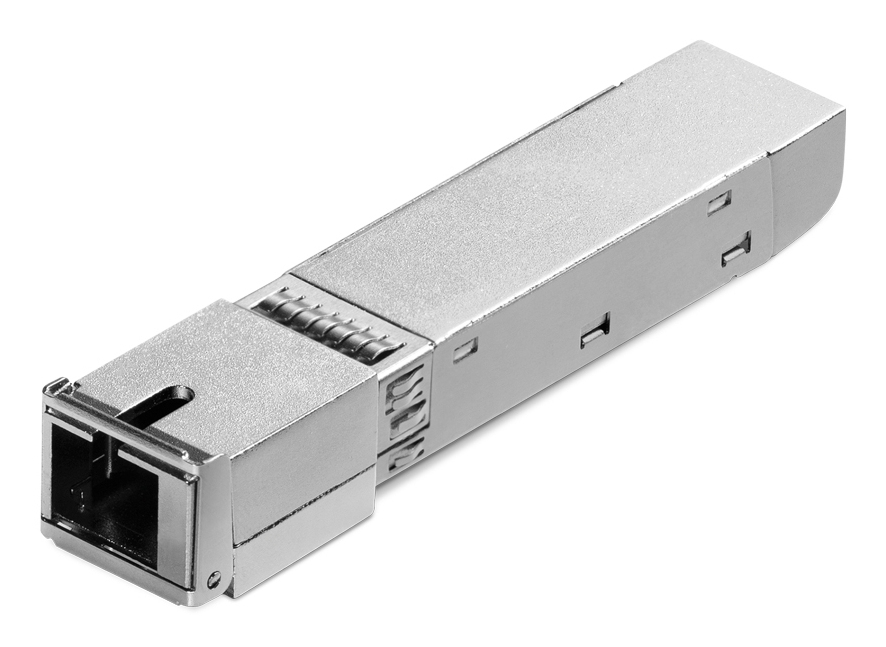

DS-PMA-C++GPON SFP modul
Model DS-PMA-C++GPON SFP modulPart no. DS-PMA-C++EAN 840460607766
21 specifications
- Speed2500 Mbit/s
- TypeSFP
- ColourMetallic
- SFP transceiver typeFiber optic
- Input voltage3.3 V
Overview
- Speed
- 2500 Mbit/s
- Type
- SFP
- Colour
- Metallic
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Brand
- TP-Link
- Category
- Network Transceiver Module
- Model
- DS-PMA-C++GPON SFP modul
- Part number
- DS-PMA-C++
- EAN / UPC
- 840460607766, 1210002621328, 8885020626407
- Also known as
- TP-Link DS-PMA-C++GPON SFP modul network transceiver module Fiber optic 2500 Mbit/s
Specifications
21 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 2500 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | SC/UPC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 20000 m |
| Tx wavelength (max) | 1490 nm |
| Rx wavelength (max) | 1310 nm |
| Rx power (max) | 5 dBmW |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Fiber ethernet cabling technology | 1000BASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Form factor | SFP |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | 2× 10 SFF |
