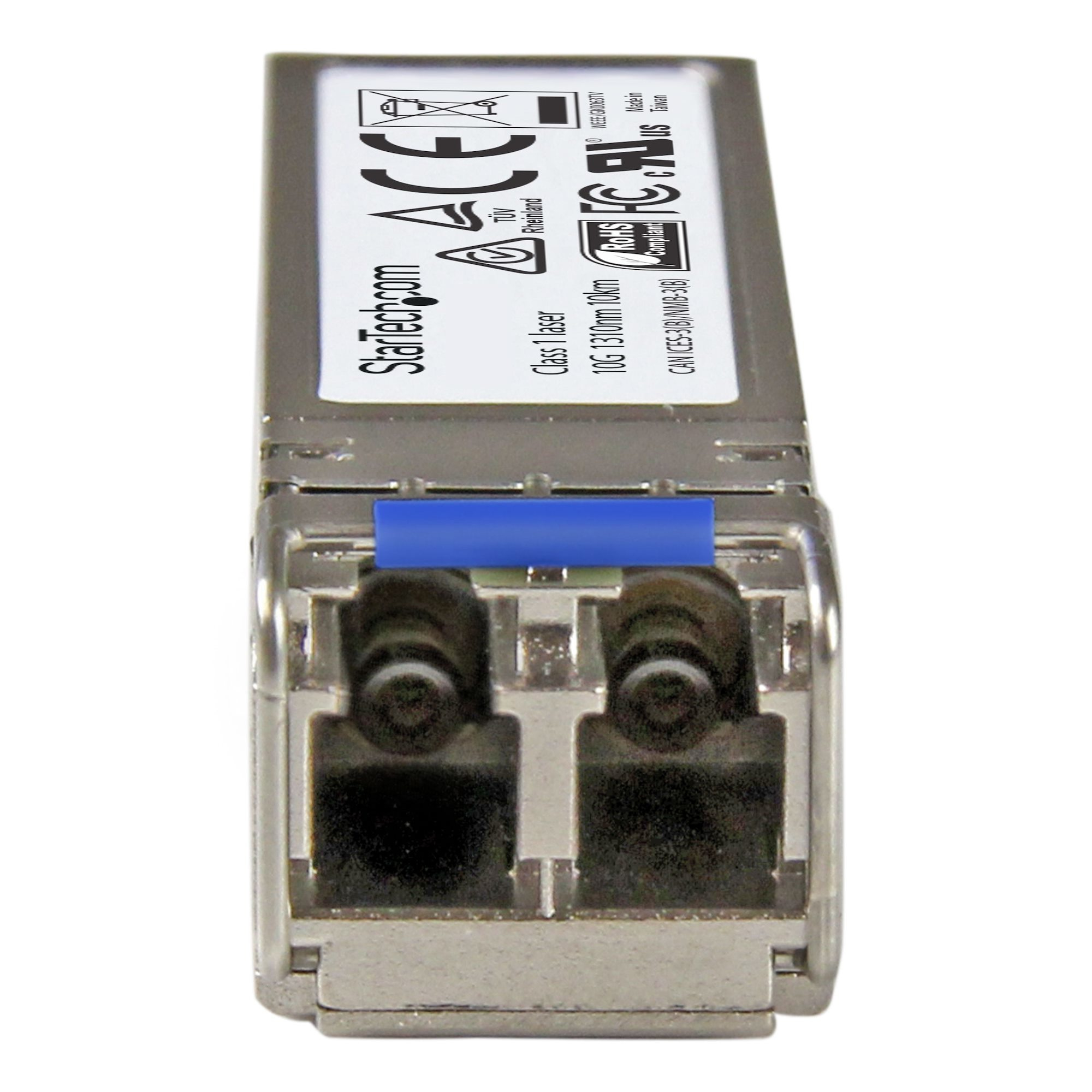

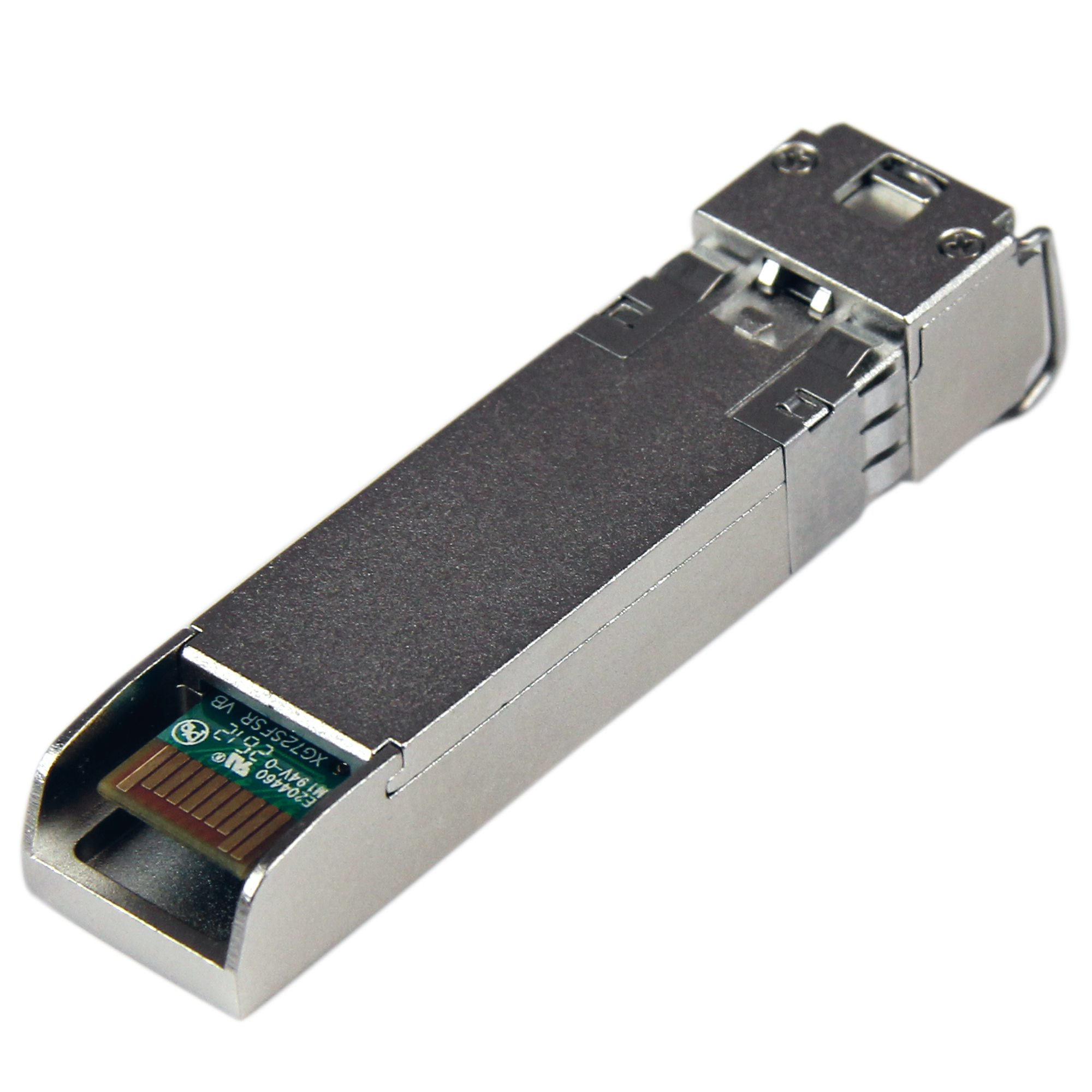

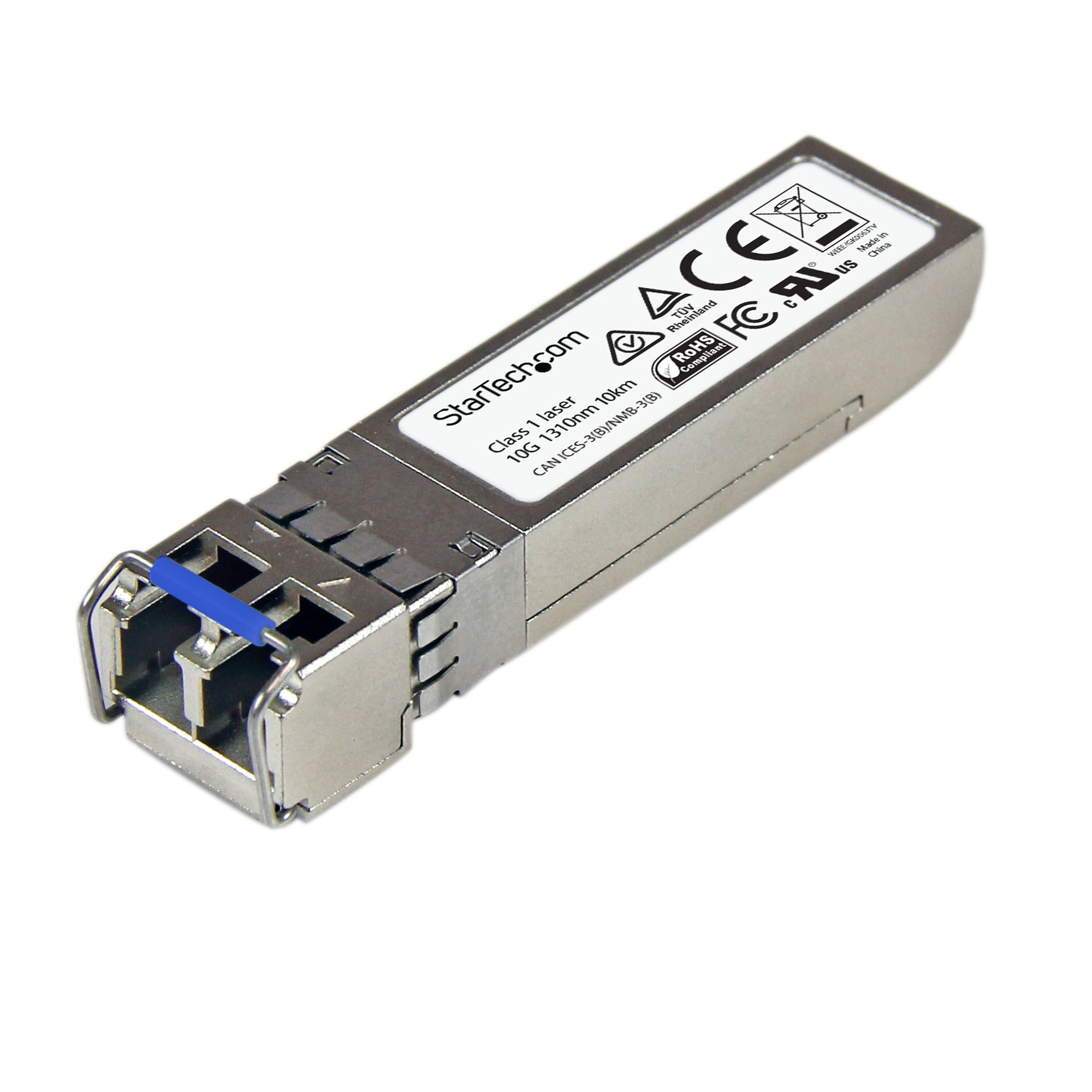

Juniper SFPP-10GE-LR Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1
Model SFPP10GELRSTEAN 065030883078
33 specifications
- Speed10000 Mbit/s
- Weight72 g
- ColourSilver
- SFP transceiver typeFiber optic
- Power consumption (typical)1.3 W
- Width14 mm
Overview
- Speed
- 10000 Mbit/s
- Weight
- 72 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 1.3 W
- Width
- 14 mm
- Brand
- StarTech.com
- Category
- Network Transceiver Module
- Model
- SFPP10GELRST
- Part number
- SFPP10GELRST
- EAN / UPC
- 065030883078
- Also known as
- StarTech.com Juniper SFPP-10GE-LR Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1
Specifications
33 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber ethernet cabling technology | 10GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 38631862 h |
| Brand compatibility | Juniper |
| Compatible products | SFPP-10GE-LR |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.3 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR, REACH |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 65 mm |
| Height | 12 mm |
| Weight | 72 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 94 mm |
| Package depth | 116 mm |
| Package height | 32 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 344 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case length | 295 mm |
| Master (outer) case height | 255 mm |
| Products per master (outer) case | 1 pc(s) |
