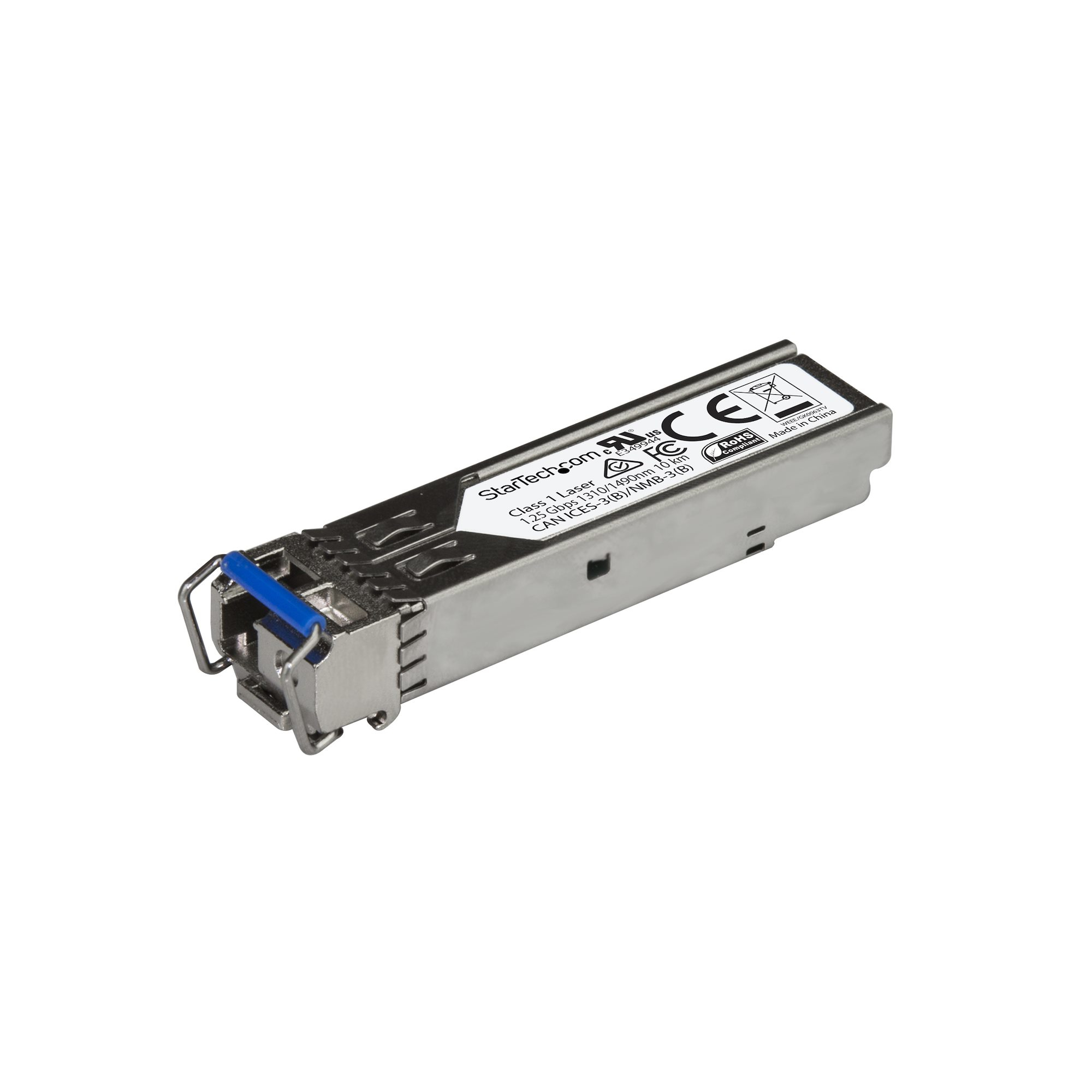

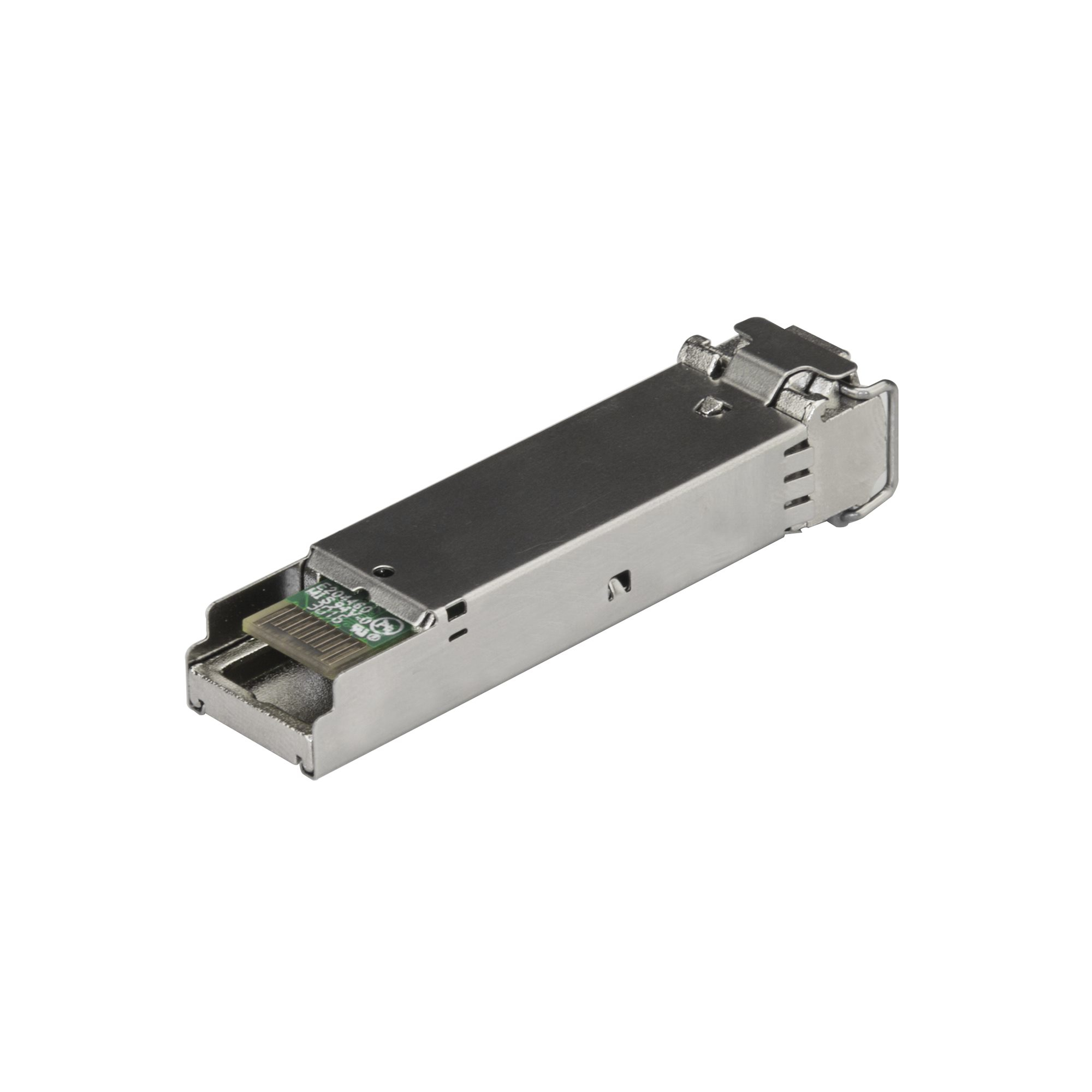

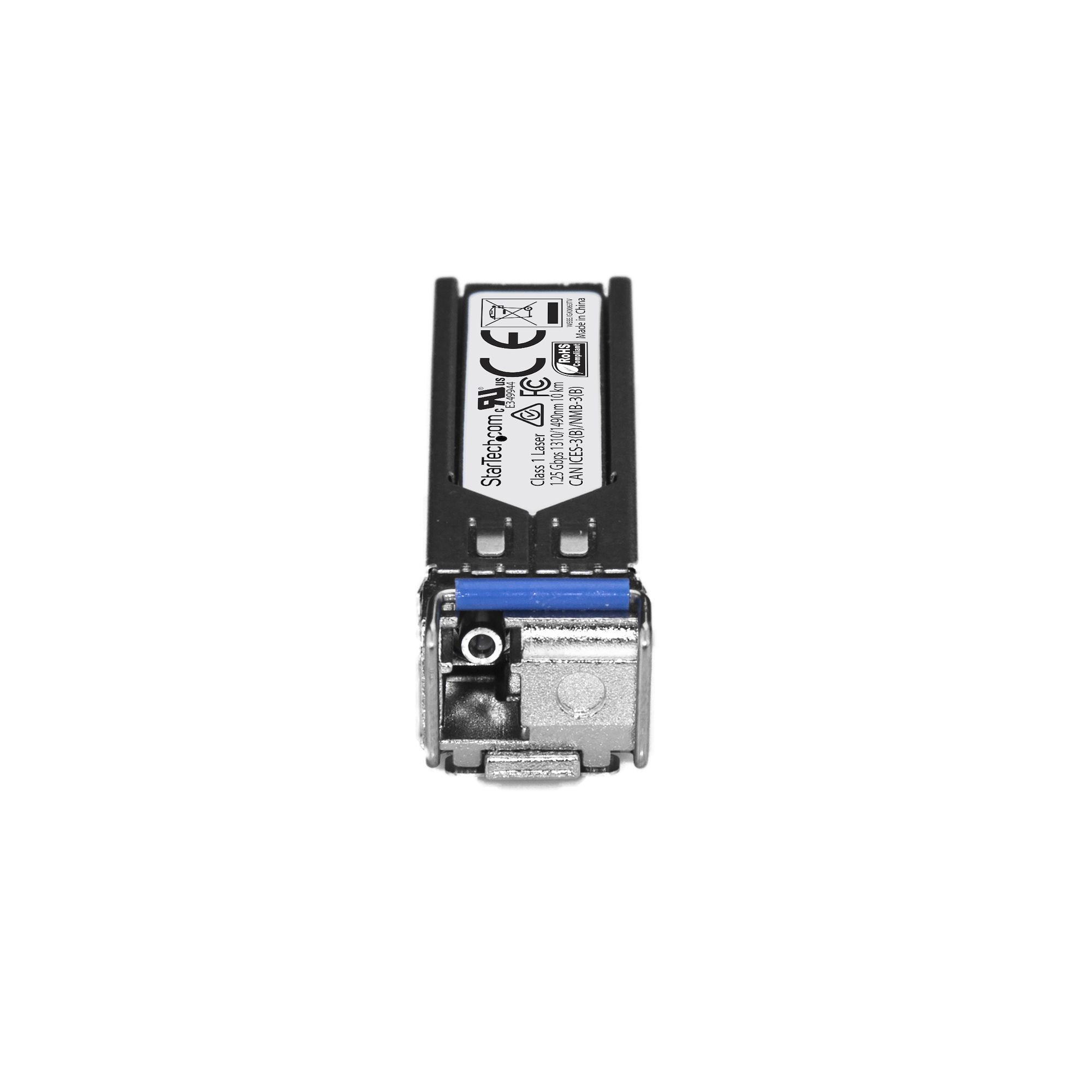

StarTech.com Juniper SFP-GE40KT13R15 Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)

Juniper SFP-GE40KT13R15 Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)

Model SFPGE40KT3R5EAN 065030883924

31 specifications

Speed1000 Mbit/s
Weight72 g
ColourSilver
SFP transceiver typeFiber optic
Width14 mm

See all specifications

Overview

Speed: 1000 Mbit/s
Weight: 72 g
Colour: Silver
SFP transceiver type: Fiber optic
Width: 14 mm

Brand: StarTech.com
Category: Network Transceiver Module
Model: SFPGE40KT3R5
Part number: SFPGE40KT3R5
EAN / UPC: 065030883924
Also known as: StarTech.com Juniper SFP-GE40KT13R15 Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)

Specifications

31 specifications in 7 groups

Performance

Specification	Value
SFP transceiver type	Fiber optic
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	No
Fiber optic connector	LC
Maximum transfer distance	40000 m
Tx wavelength (max)	1310 nm
Rx wavelength (max)	1550 nm
Duplex system	Full

Features

Specification	Value
Product colour	Silver
Hot-swap	Yes
Mean time between failures (MTBF)	3713222 h
Brand compatibility	Juniper
Compatible products	SFP-GE40KT13R15

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	CE, FCC, REACH

Weight & dimensions

Specification	Value
Width	14 mm
Depth	65 mm
Height	12 mm
Weight	72 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)

Packaging data

Specification	Value
Package width	207 mm
Package depth	230 mm
Package height	15 mm
Package weight	80 g

Logistics data

Specification	Value
Master (outer) case width	344 mm
Harmonized System (HS) code	85369010
Master (outer) case length	295 mm
Master (outer) case height	255 mm
Products per master (outer) case	36 pc(s)
