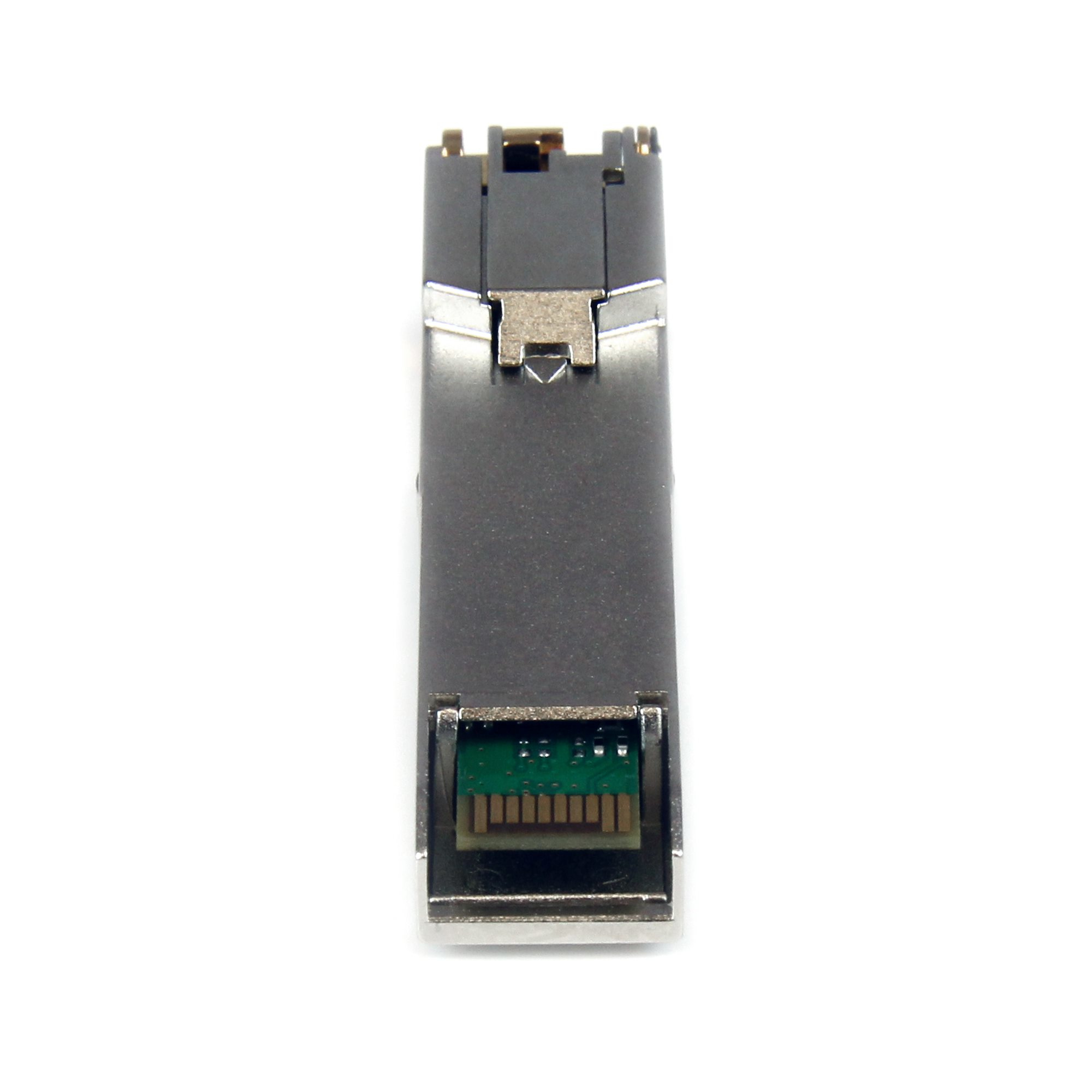

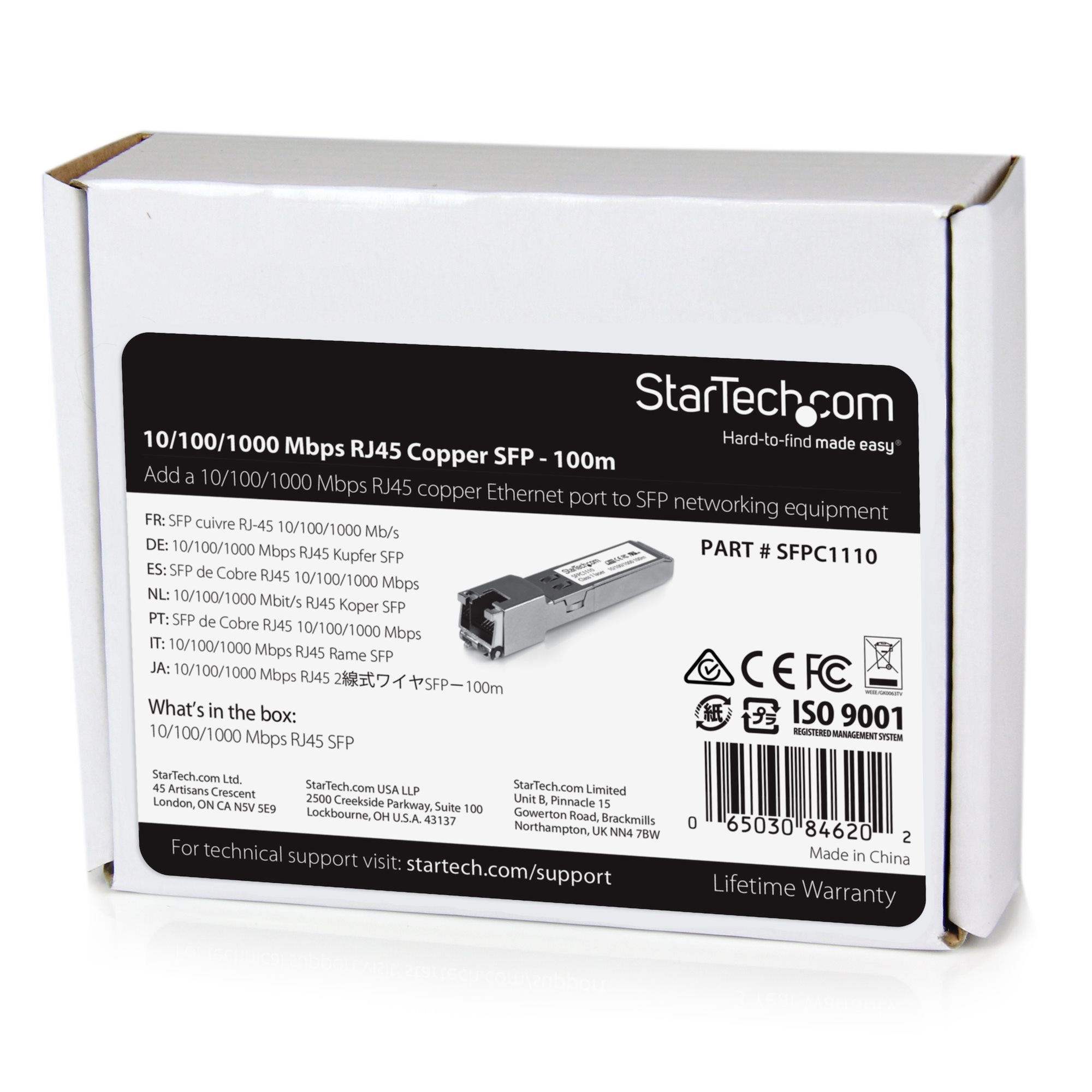

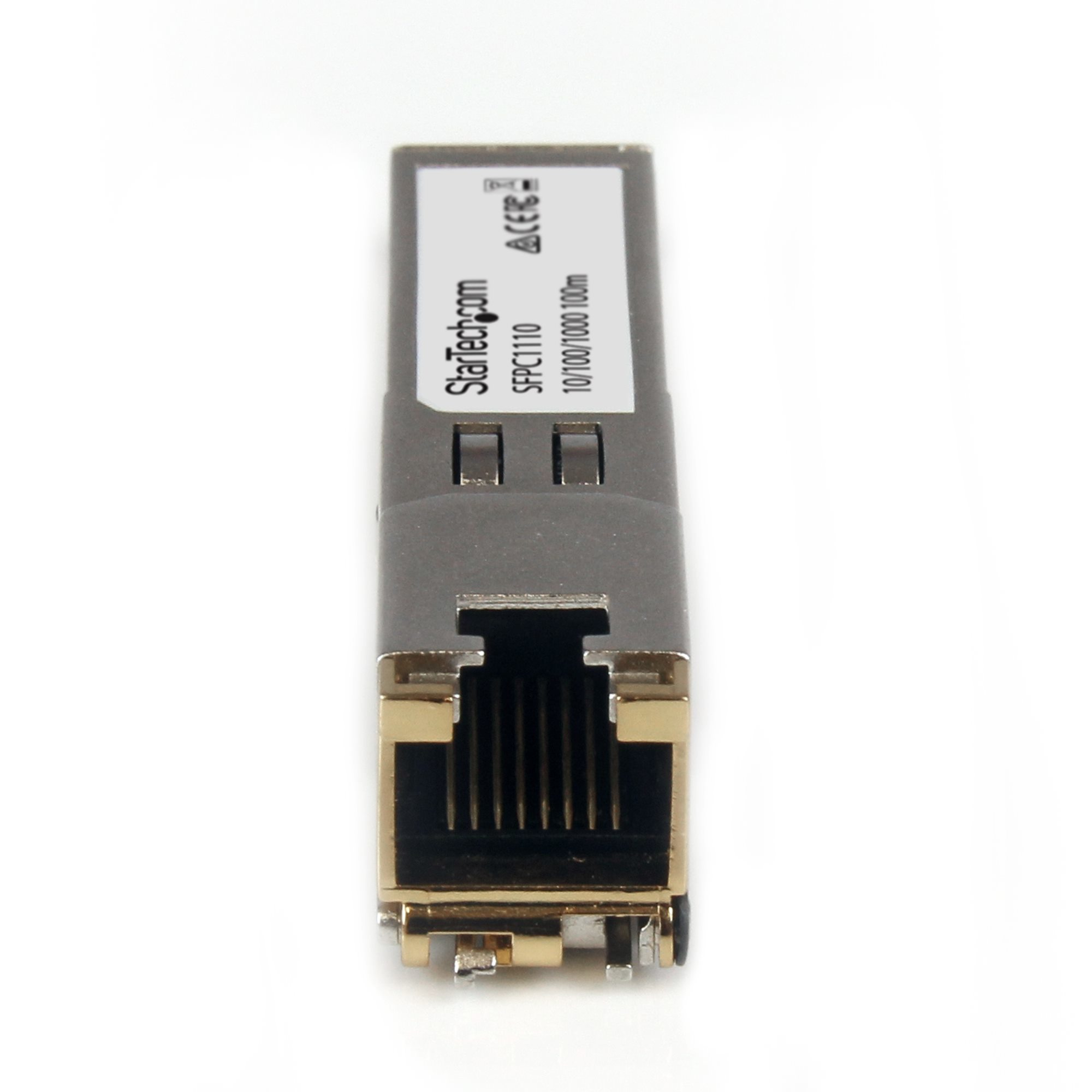

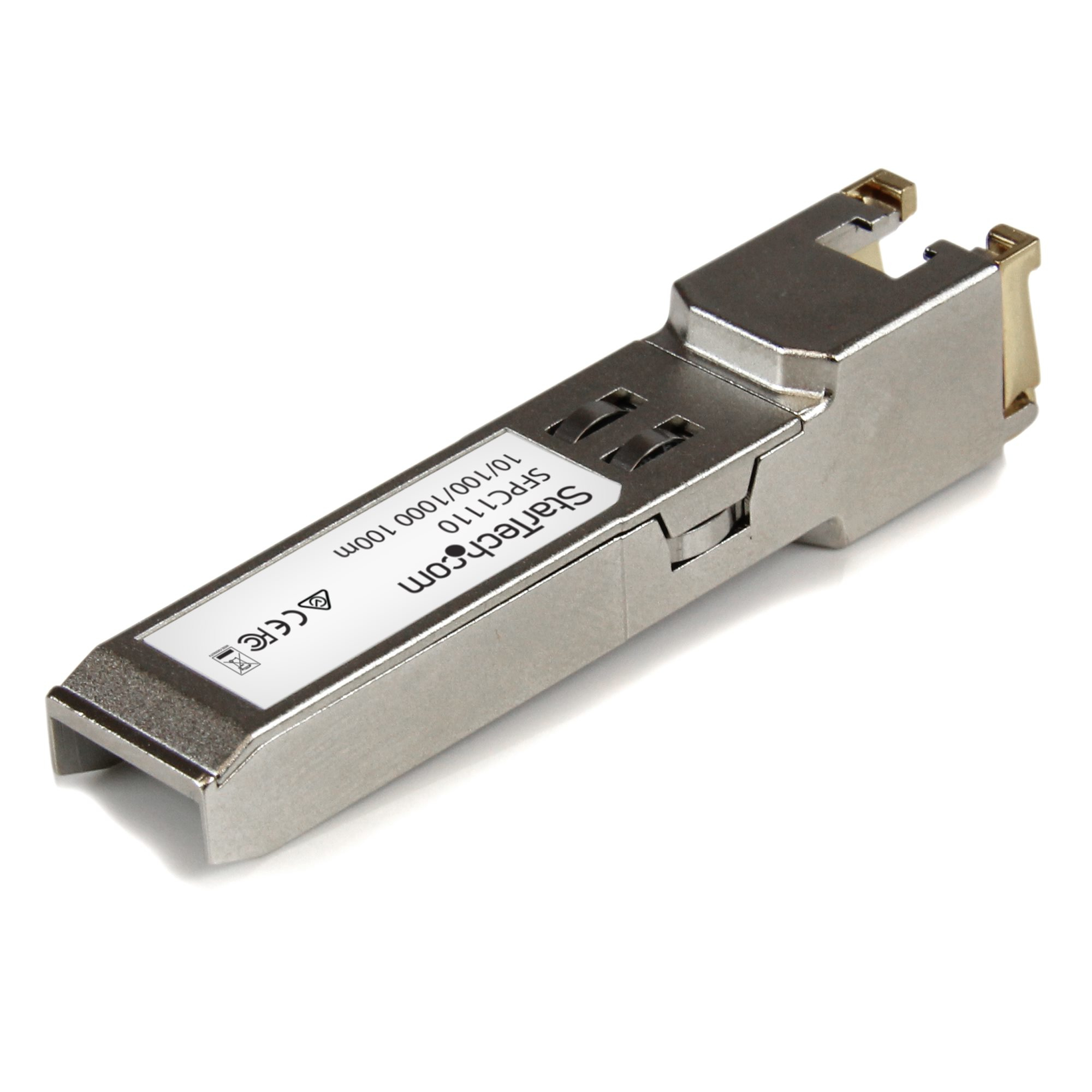

Cisco SFP-GE-T Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco IE3400, IE3300, IE3200
Model SFPC1110EAN 065030846202
34 specifications
- Speed1250 Mbit/s
- Weight46 g
- ColourSilver
- SFP transceiver typeCopper
- Power consumption (typical)1.3 W
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 1250 Mbit/s
- Weight
- 46 g
- Colour
- Silver
- SFP transceiver type
- Copper
- Power consumption (typical)
- 1.3 W
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- StarTech.com
- Category
- Network Transceiver Module
- Model
- SFPC1110
- Part number
- SFPC1110
- EAN / UPC
- 065030846202, 151903391198, 168141653940, 5054533469242
- Also known as
- StarTech.com Cisco SFP-GE-T Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco IE3400, IE3300, IE3200
Specifications
34 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Fiber optic connector | SFP |
| Maximum transfer distance | 100 m |
| Cabling technology | 1000BASE-T |
| Networking standards | IEEE 802.3ab |
| Ethernet LAN (RJ-45) ports | 1 |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 4655371 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.3 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC, UL, REACH |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 30 - 70% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13 mm |
| Depth | 70 mm |
| Height | 13 mm |
| Weight | 46 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 91 mm |
| Package depth | 113 mm |
| Package height | 33 mm |
| Package weight | 55 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 206 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case length | 298 mm |
| Master (outer) case height | 248 mm |
| Products per master (outer) case | 36 pc(s) |
