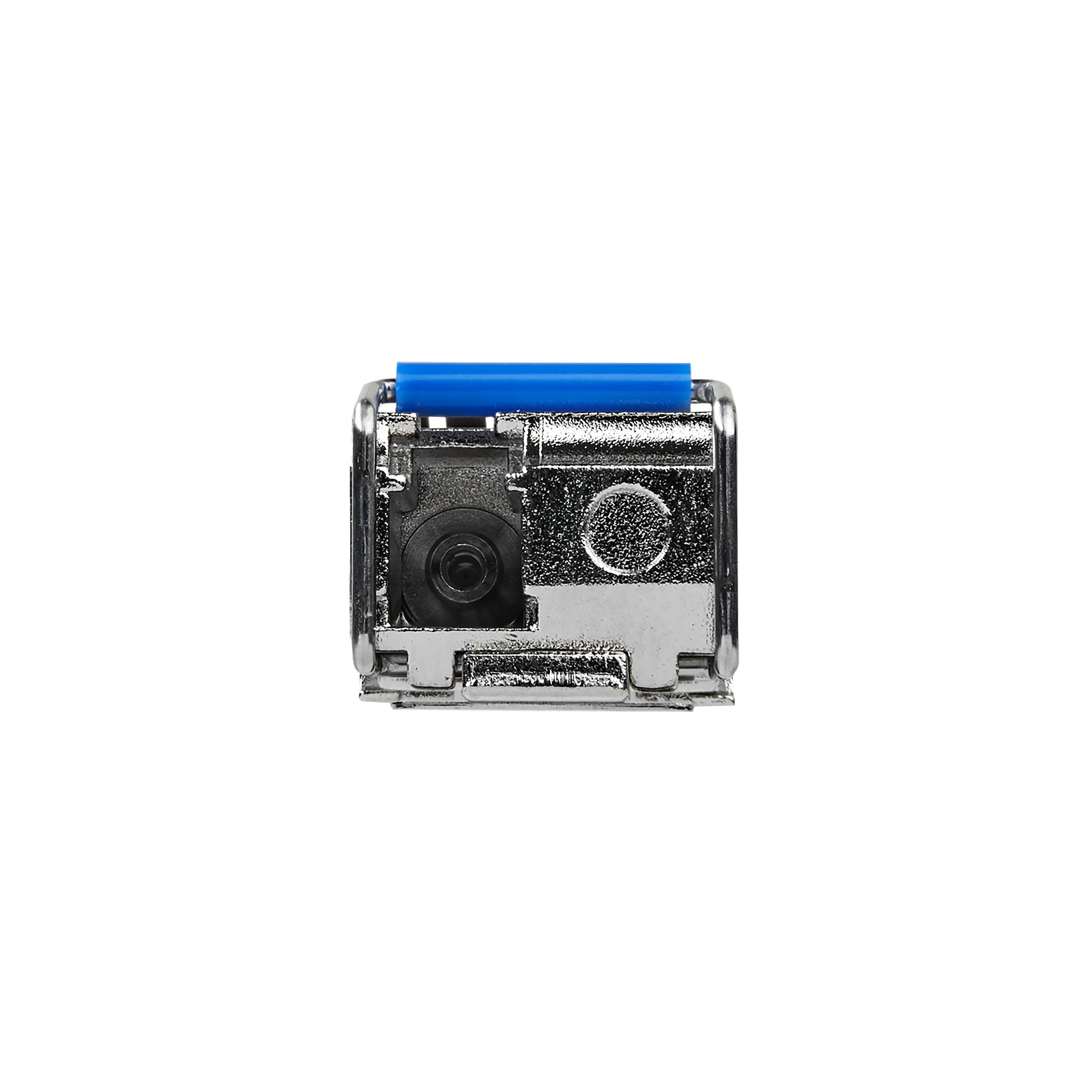

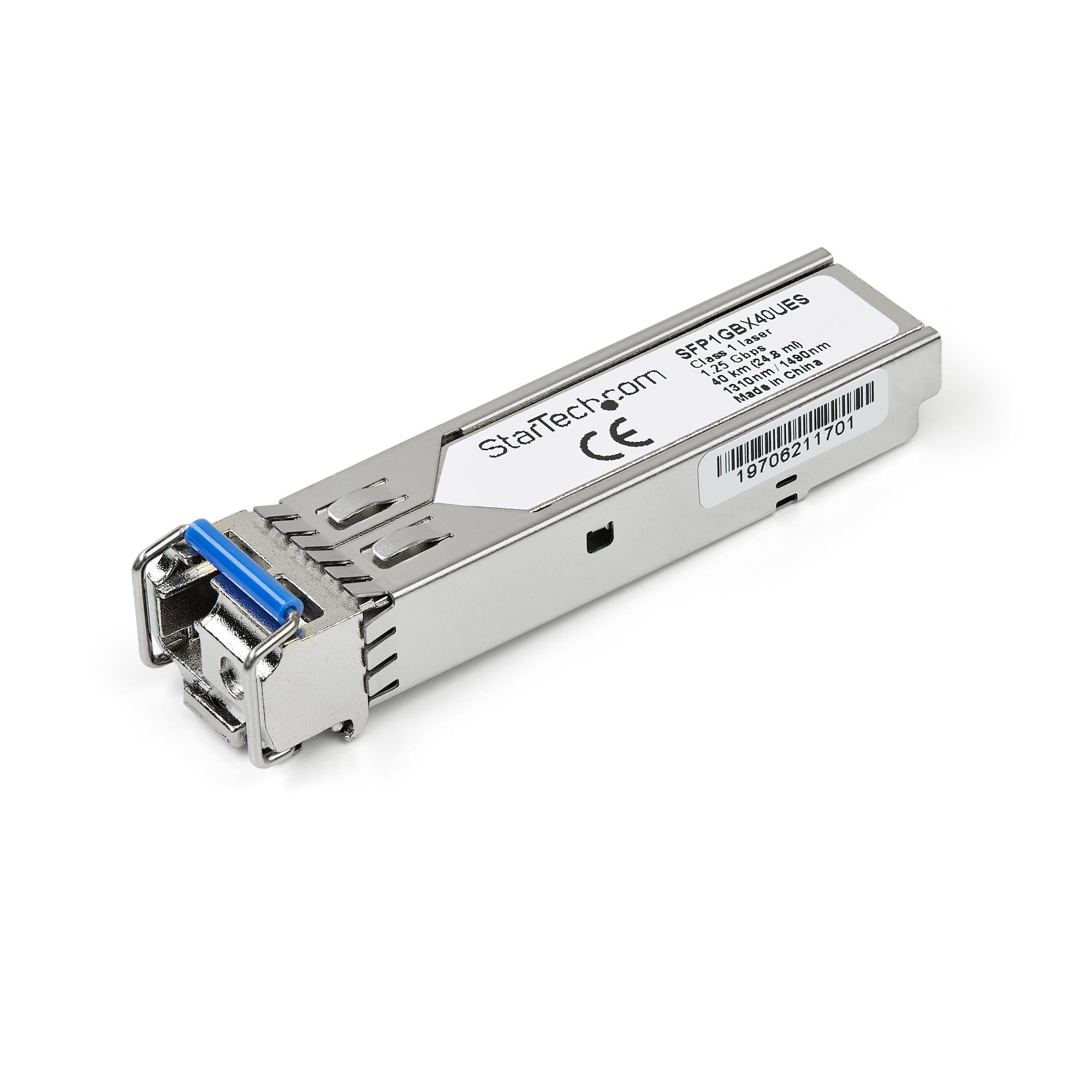

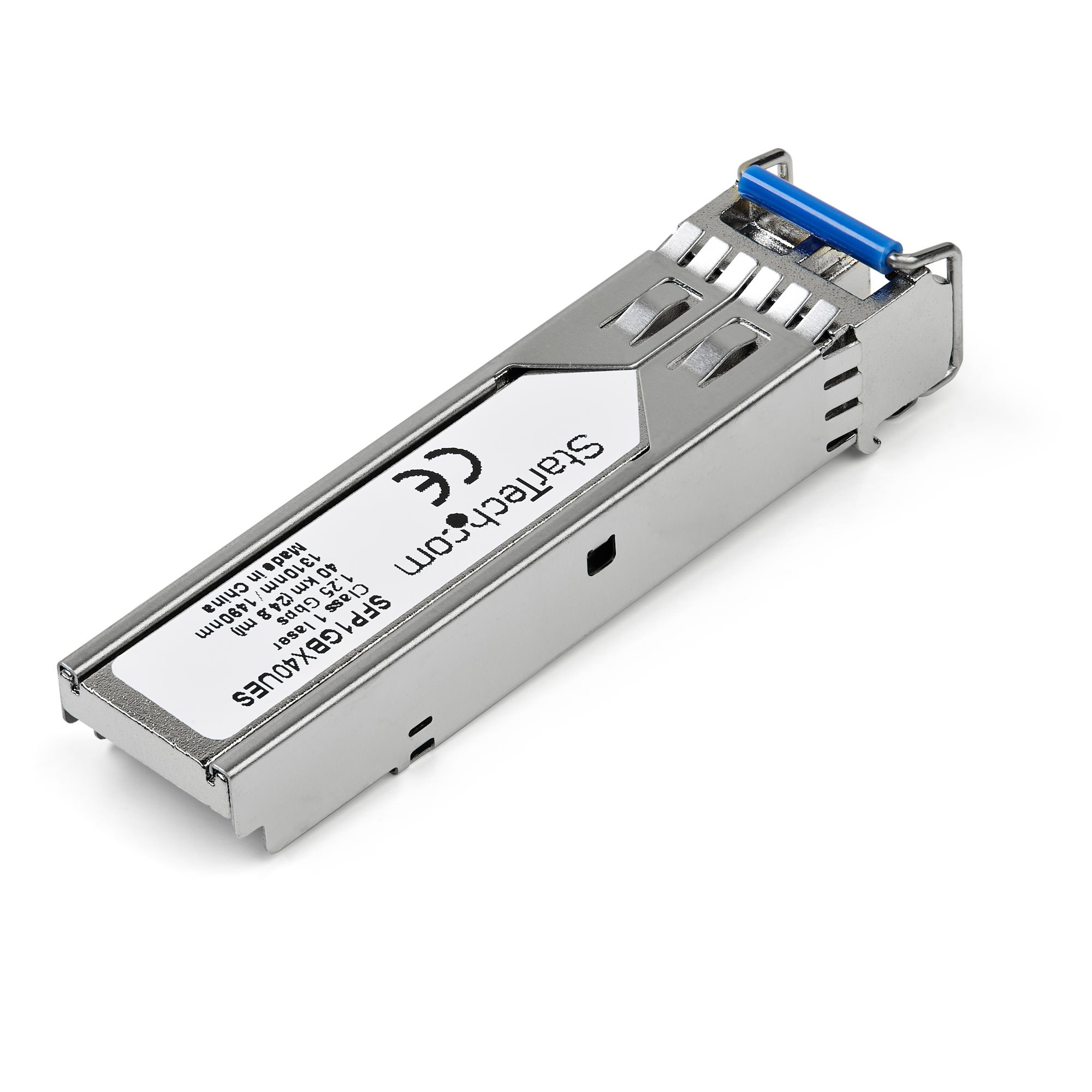

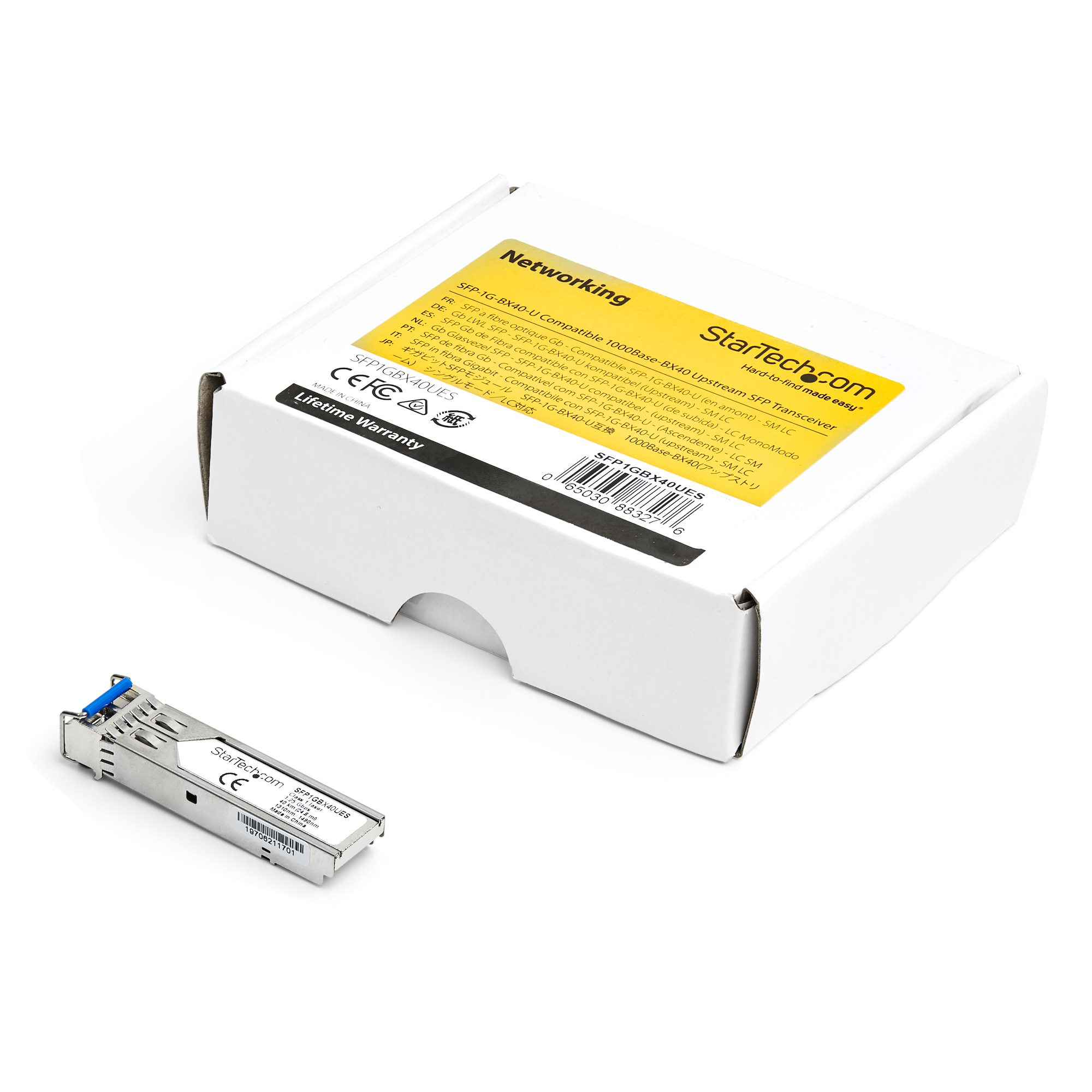

StarTech.com Dell EMC SFP-1G-BX40-U Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)

Dell EMC SFP-1G-BX40-U Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)

Model SFP1GBX40UESEAN 065030883276

33 specifications

Speed1000 Mbit/s
Weight30 g
ColourSilver
SFP transceiver typeFiber optic
Power consumption (typical)1.6 W
Width58.4 mm

See all specifications

Overview

Speed: 1000 Mbit/s
Weight: 30 g
Colour: Silver
SFP transceiver type: Fiber optic
Power consumption (typical): 1.6 W
Width: 58.4 mm

Brand: StarTech.com
Category: Network Transceiver Module
Model: SFP1GBX40UES
Part number: SFP1GBX40UES
EAN / UPC: 065030883276
Also known as: StarTech.com Dell EMC SFP-1G-BX40-U Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)

Specifications

33 specifications in 8 groups

Performance

Specification	Value
SFP transceiver type	Fiber optic
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	No
Fiber optic connector	LC
Maximum transfer distance	40000 m
Tx wavelength (max)	1310 nm
Rx wavelength (max)	1490 nm
Duplex system	Full
Digital Diagnostics Monitoring (DDM)	Yes

Features

Specification	Value
Product colour	Silver
Hot-swap	Yes
Mean time between failures (MTBF)	3713222 h
Brand compatibility	Dell
Compatible products	CE, FCC, UL, REACH

Power

Specification	Value
Power consumption (typical)	1.6 W

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	SFP-1G-BX40-U

Weight & dimensions

Specification	Value
Width	58.4 mm
Depth	13.9 mm
Height	12.6 mm
Weight	30 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)

Packaging data

Specification	Value
Package width	90 mm
Package depth	115 mm
Package height	31 mm
Package weight	50 g

Logistics data

Specification	Value
Master (outer) case width	90 mm
Harmonized System (HS) code	85369010
Master (outer) case length	115 mm
Master (outer) case height	31 mm
Products per master (outer) case	1 pc(s)
