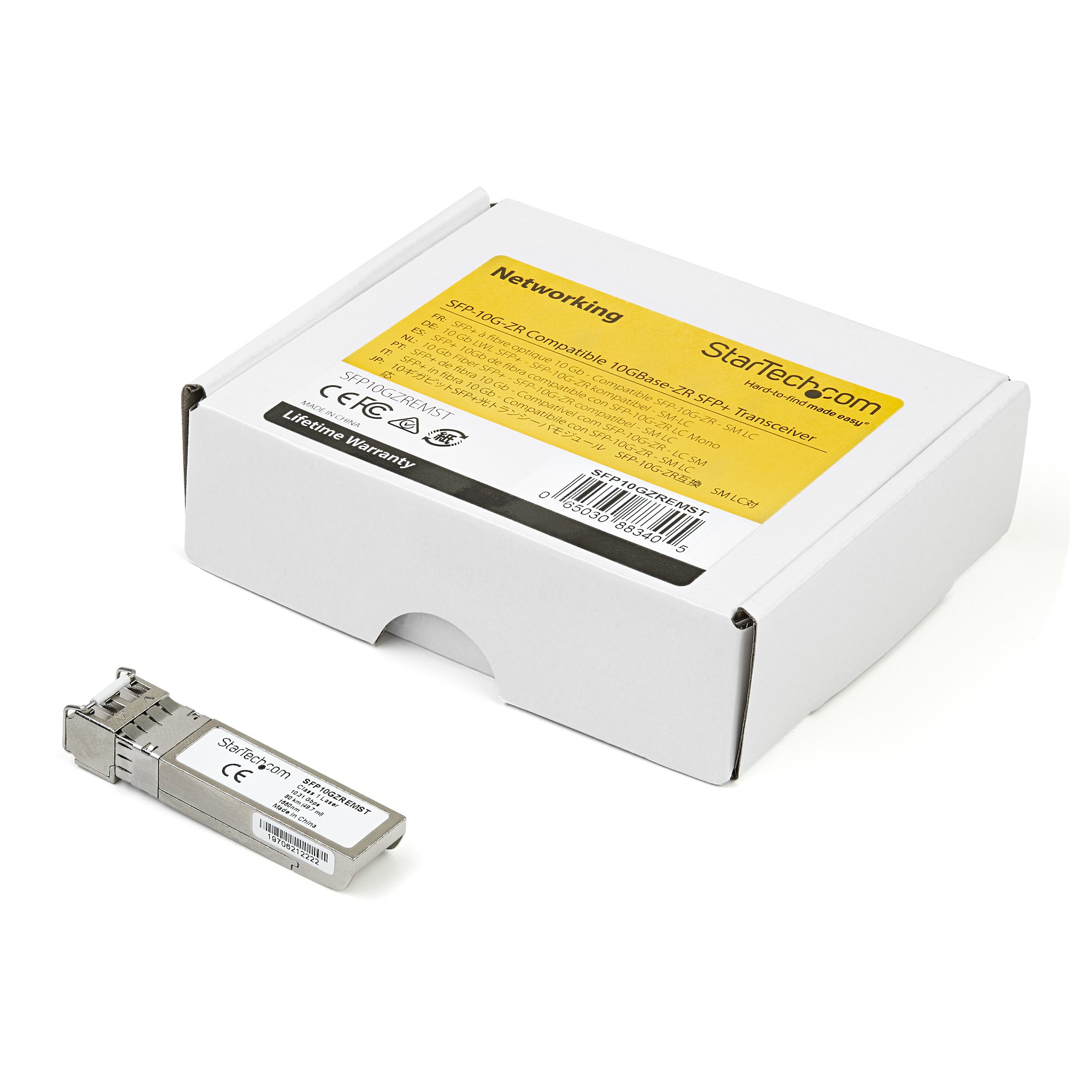

Dell EMC SFP-10G-ZR Compatible SFP+ Module - 10GBASE-ZR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 80km - 15
Model SFP10GZREMSTEAN 065030883405
32 specifications
- Speed10000 Mbit/s
- Weight30 g
- ColourSilver
- SFP transceiver typeFiber optic
- Width58.4 mm
Overview
- Speed
- 10000 Mbit/s
- Weight
- 30 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Width
- 58.4 mm
- Brand
- StarTech.com
- Category
- Network Transceiver Module
- Model
- SFP10GZREMST
- Part number
- SFP10GZREMST
- EAN / UPC
- 065030883405
- Also known as
- StarTech.com Dell EMC SFP-10G-ZR Compatible SFP+ Module - 10GBASE-ZR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 80km - 15
Specifications
32 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | ZR |
| Maximum transfer distance | 80000 m |
| Wavelength | 1550 nm |
| Fiber ethernet cabling technology | 10GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 38631862 h |
| Brand compatibility | Dell |
| Compatible products | SFP-10G-ZR |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC, UL, REACH |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58.4 mm |
| Depth | 13.9 mm |
| Height | 12.6 mm |
| Weight | 30 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 92 mm |
| Package depth | 116 mm |
| Package height | 33 mm |
| Package weight | 50 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 93 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case length | 117 mm |
| Master (outer) case height | 34 mm |
| Products per master (outer) case | 1 pc(s) |
