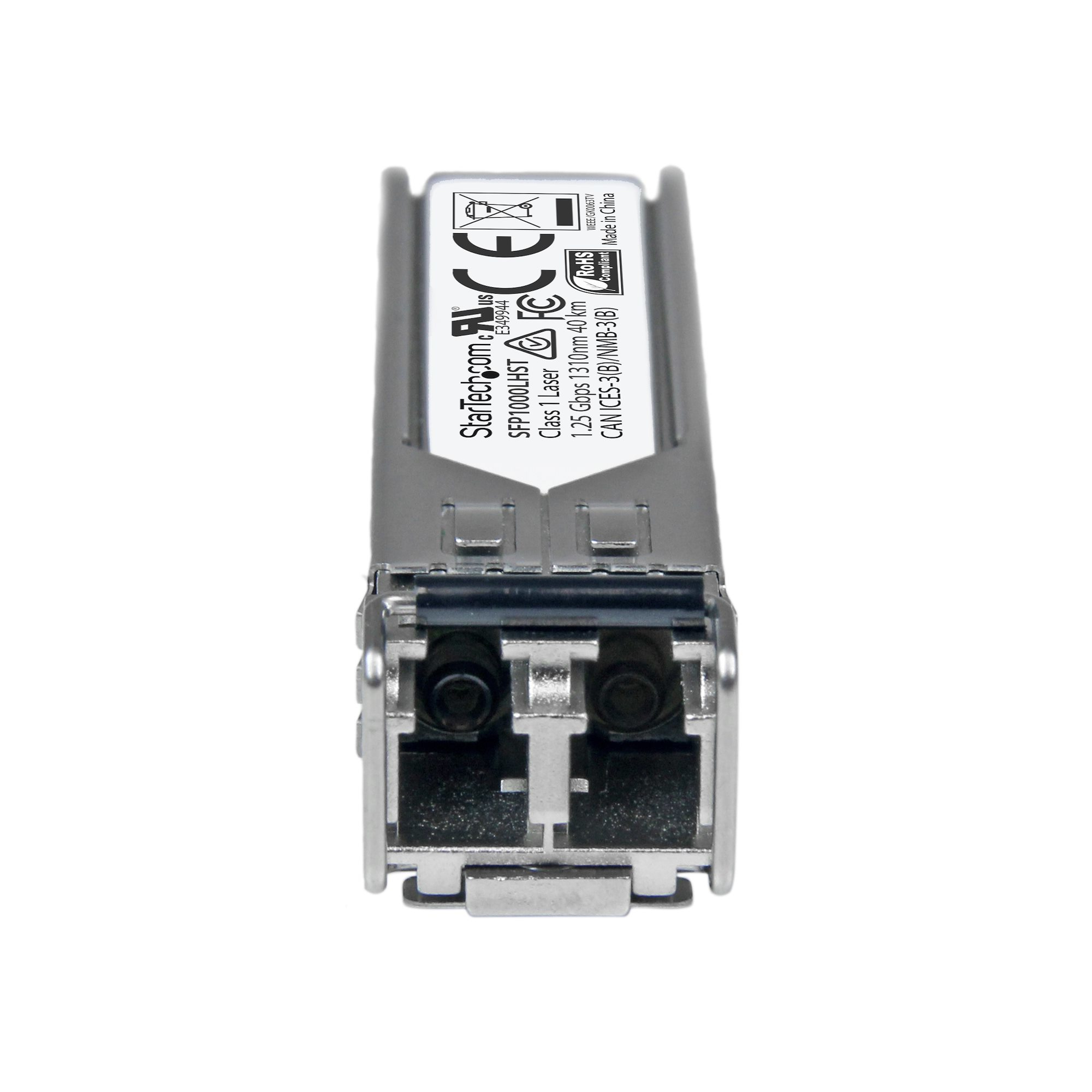

MSA Uncoded SFP Module - 1000BASE-LH - 1GbE Single Mode Fiber (SMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 40km - 1310nm - DDM
Model SFP1000LHSTEAN 065030873550
35 specifications
- Speed1250 Mbit/s
- Weight18 g
- ColourSilver
- SFP transceiver typeFiber optic
- Power consumption (typical)1 W
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 1250 Mbit/s
- Weight
- 18 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 1 W
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- StarTech.com
- Category
- Network Transceiver Module
- Model
- SFP1000LHST
- Part number
- SFP1000LHST
- EAN / UPC
- 065030873550
- Also known as
- StarTech.com MSA Uncoded SFP Module - 1000BASE-LH - 1GbE Single Mode Fiber (SMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 40km - 1310nm - DDM
Specifications
35 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LH |
| Maximum transfer distance | 40000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | No |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 67 mm |
| Height | 12 mm |
| Weight | 18 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 91 mm |
| Package depth | 115 mm |
| Package height | 32 mm |
| Package weight | 47 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 193 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case length | 304 mm |
| Master (outer) case height | 251 mm |
| Products per master (outer) case | 35 pc(s) |
