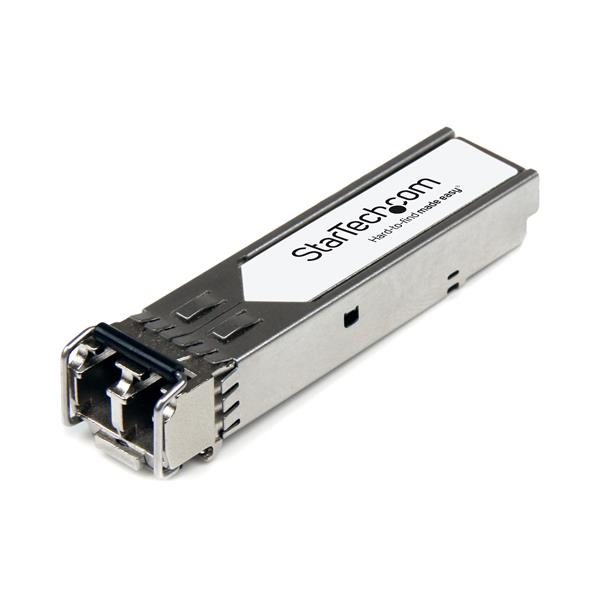

Cisco SFP-10G-ZR-100 Compatible SFP+ Transceiver Module - 1000Base-TX
Model SFP-10G-ZR-100-STEAN 065030885997
26 specifications
- Speed10000 Mbit/s
- Weight24 g
- ColourSilver
- SFP transceiver typeFiber optic
- Power consumption (typical)1 W
- Width58.4 mm
Overview
- Speed
- 10000 Mbit/s
- Weight
- 24 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 1 W
- Width
- 58.4 mm
- Brand
- StarTech.com
- Category
- Network Transceiver Module
- Model
- SFP-10G-ZR-100-ST
- Part number
- SFP-10G-ZR-100-ST
- EAN / UPC
- 065030885997
- Also known as
- StarTech.com Cisco SFP-10G-ZR-100 Compatible SFP+ Transceiver Module - 1000Base-TX
Specifications
26 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | ZR |
| Maximum transfer distance | 200 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3ae |
| Fiber ethernet cabling technology | 10GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 38631862 h |
| Brand compatibility | Cisco |
| Compatible products | SFP-10G-ZR-100 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58.4 mm |
| Depth | 13.9 mm |
| Height | 13.7 mm |
| Weight | 24 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
