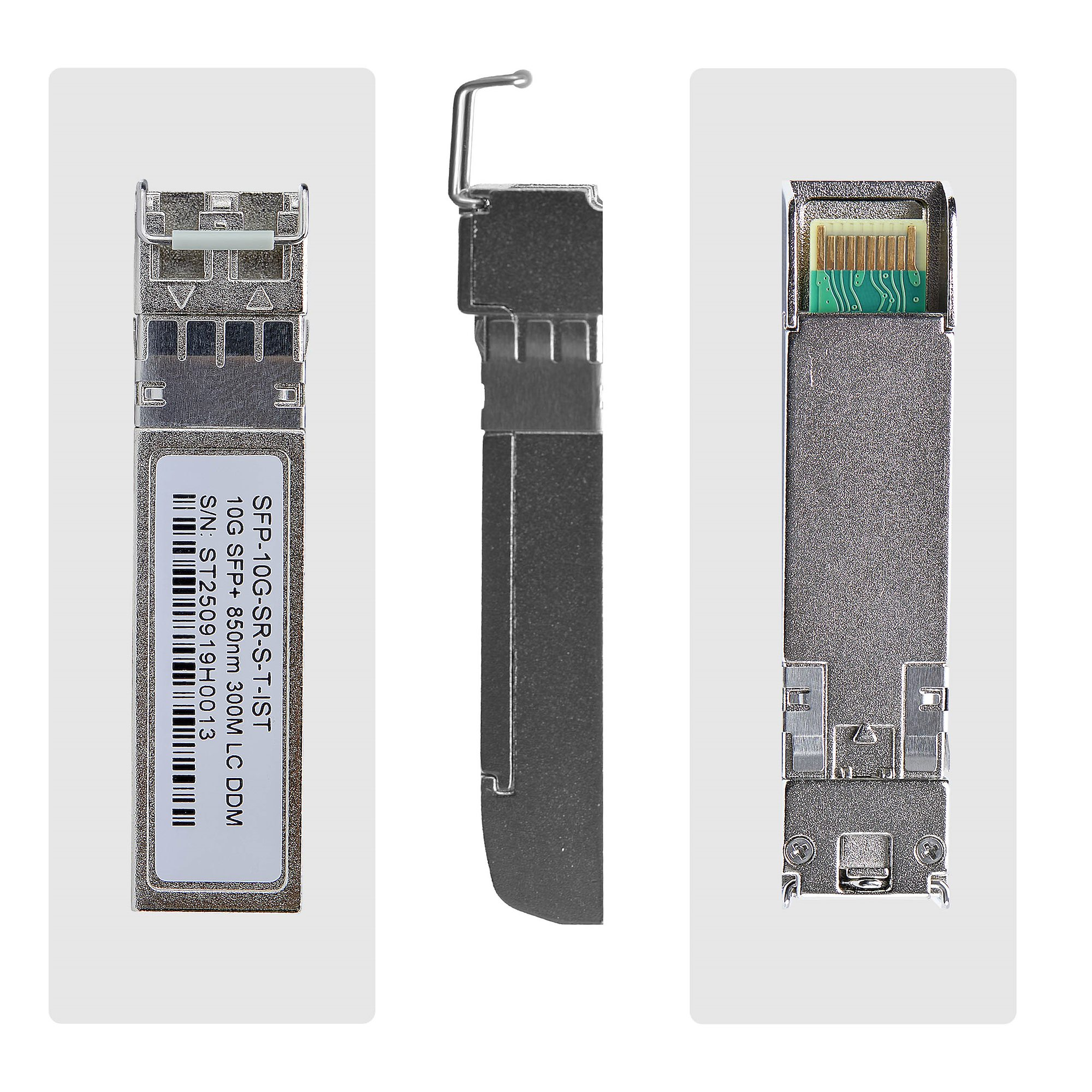

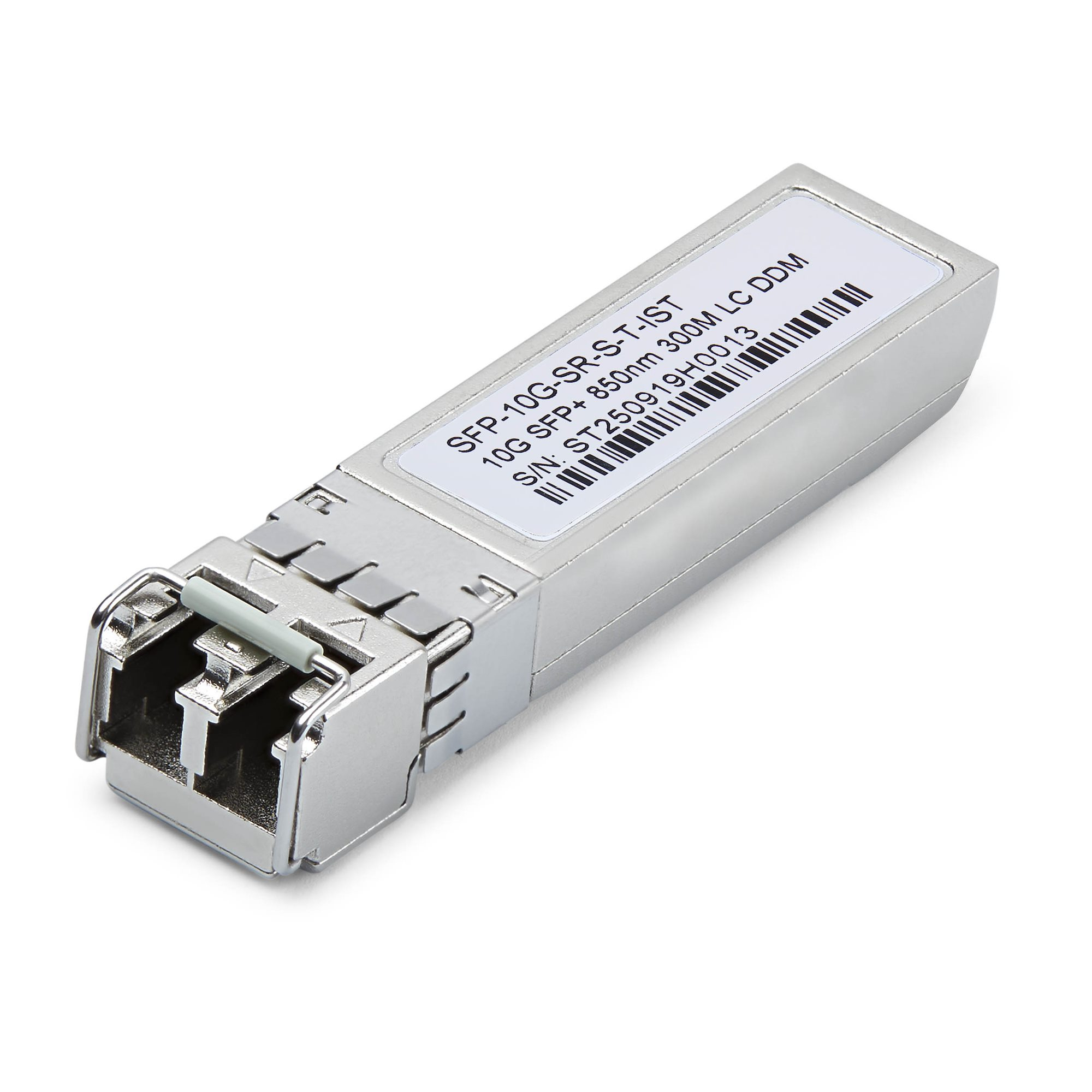

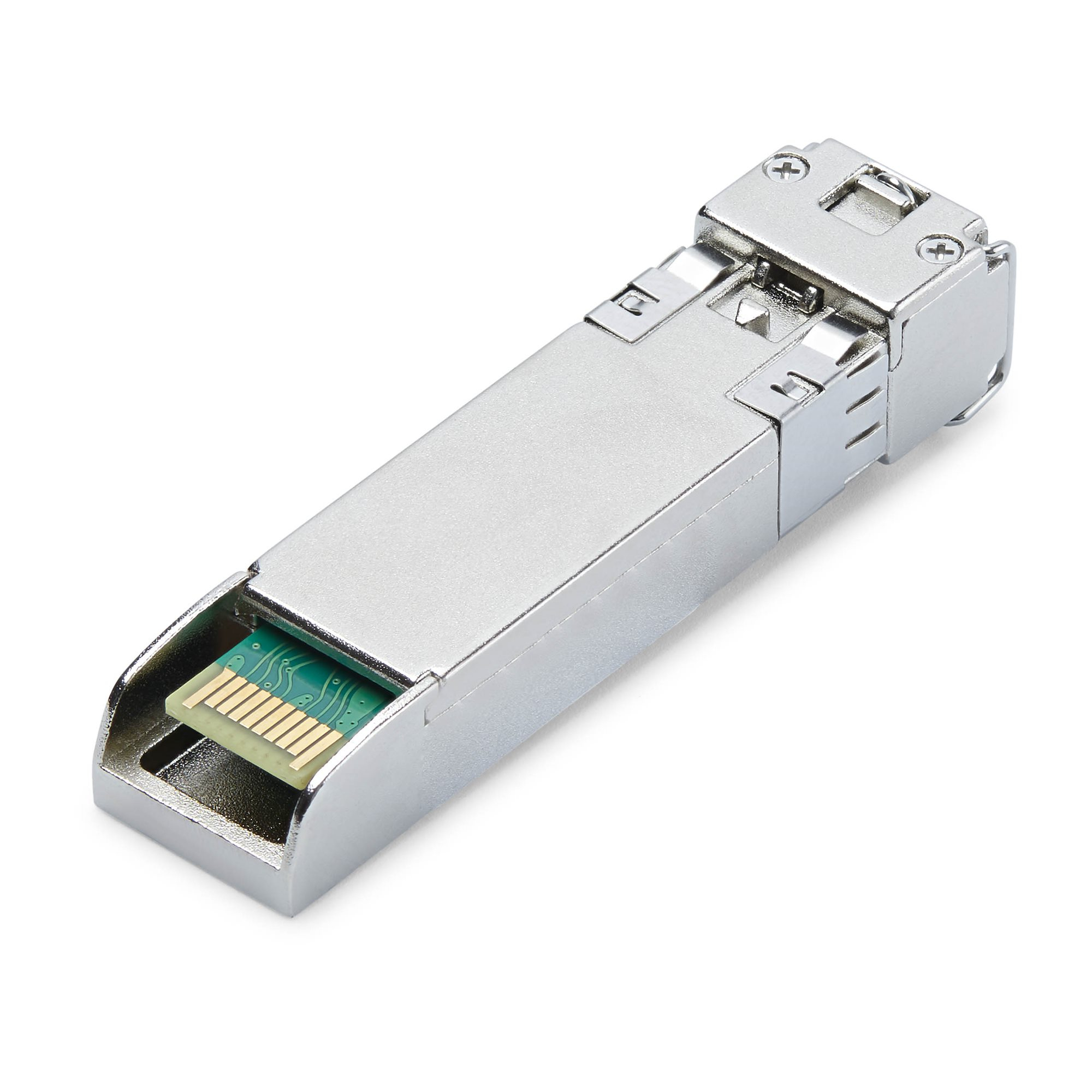

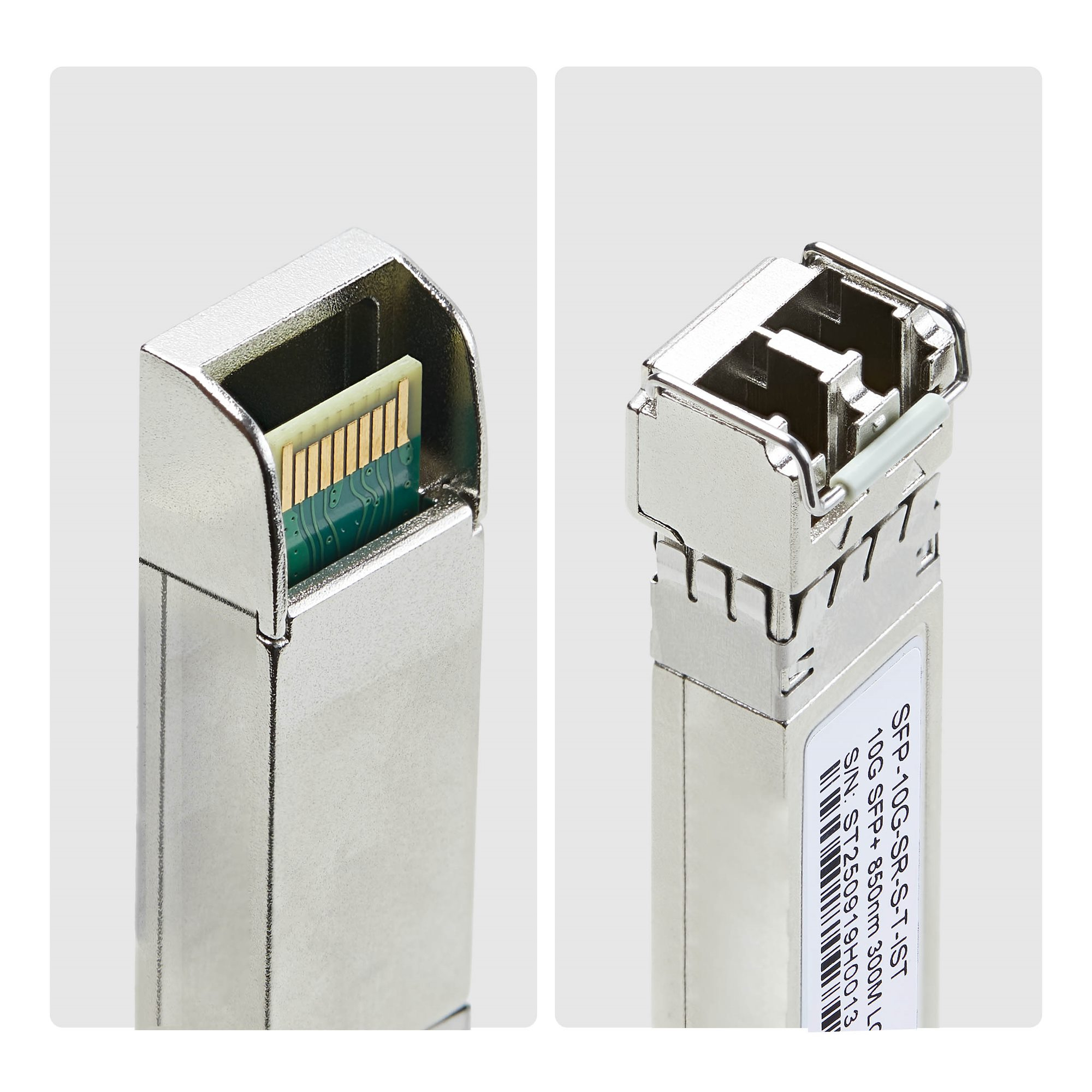

![StarTech.com Version of Cisco SFP-10G-SR-S SFP+ Module, Industrial Temperature Range, 10Gbps, Multi Mode Fiber (MMF), 300m [984ft], LC Transceiver, 850nm](https://images.icecat.biz/img/gallery/0954ebf2d408f3ac76f5a48899c5b8e78fa50acd.jpg)
Version of Cisco SFP-10G-SR-S SFP+ Module, Industrial Temperature Range, 10Gbps, Multi Mode Fiber (MMF), 300m [984ft], LC Transceiver, 850nm
Model SFP-10G-SR-S-T-ISTEAN 065030925549
29 specifications
- Speed10000 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Power consumption (typical)1 W
- Operating temperature (T-T)-40 - 85 °C
- Width13.9 mm
Overview
- Speed
- 10000 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 1 W
- Operating temperature (T-T)
- -40 - 85 °C
- Width
- 13.9 mm
- Brand
- StarTech.com
- Category
- Network Transceiver Module
- Model
- SFP-10G-SR-S-T-IST
- Part number
- SFP-10G-SR-S-T-IST
- EAN / UPC
- 065030925549
- Also known as
- StarTech.com Version of Cisco SFP-10G-SR-S SFP+ Module, Industrial Temperature Range, 10Gbps, Multi Mode Fiber (MMF), 300m [984ft], LC Transceiver, 850nm
Specifications
29 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SR |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3ae |
| Fiber ethernet cabling technology | 10GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Mean time between failures (MTBF) | 1720000 h |
| Brand compatibility | Cisco |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| User guide | Yes |
| Package width | 112 mm |
| Package depth | 90 mm |
| Package height | 32 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 117 mm |
| Master (outer) case length | 250 mm |
| Master (outer) case height | 200 mm |
| Products per master (outer) case | 36 pc(s) |
