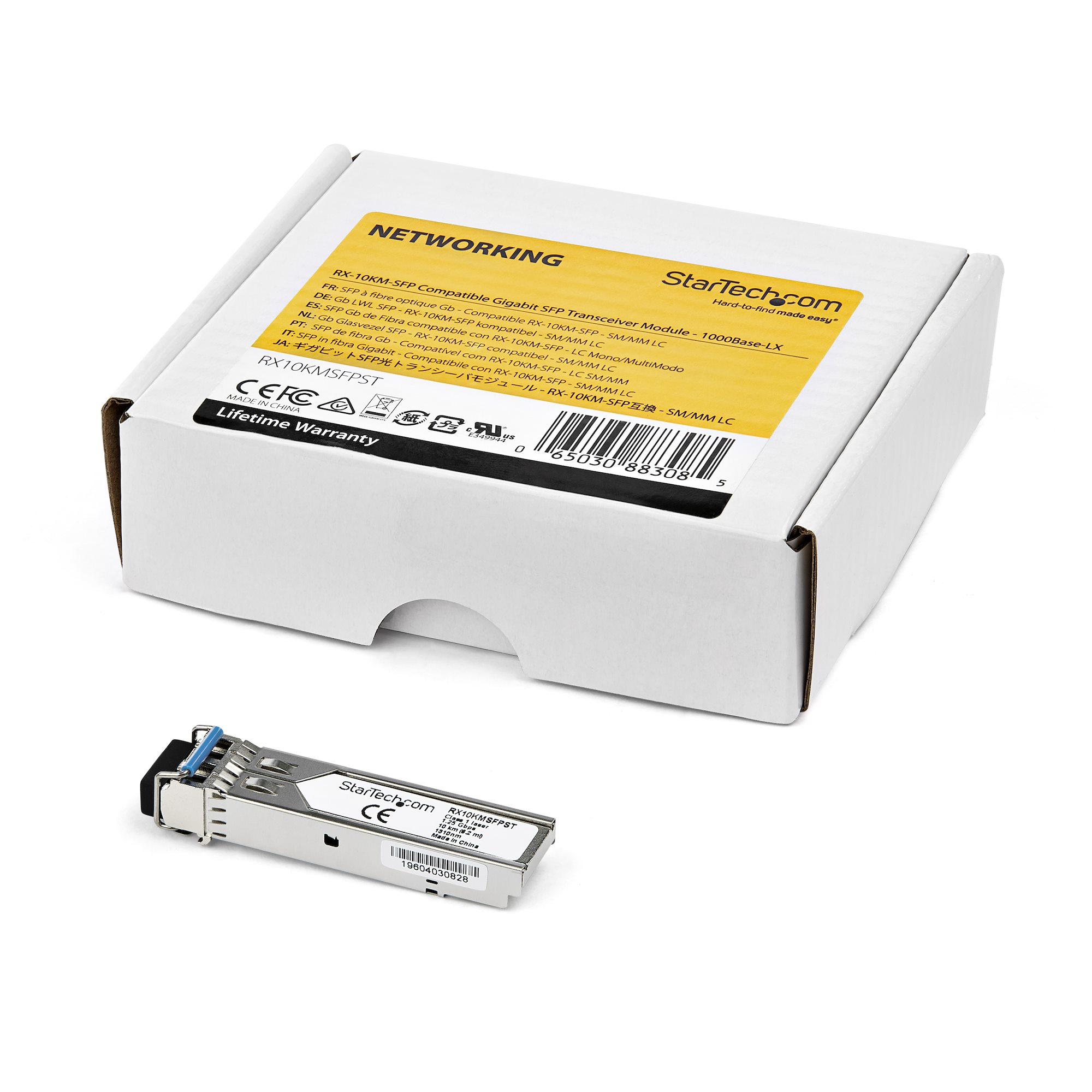

Juniper RX-10KM-SFP Compatible SFP Module - 1000BASE-LX - 1GbE Single/Multi Mode Fiber Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 131
Model RX10KMSFPSTEAN 065030883085
32 specifications
- Speed1000 Mbit/s
- Weight72 g
- ColourSilver
- SFP transceiver typeFiber optic
- Width14 mm
Overview
- Speed
- 1000 Mbit/s
- Weight
- 72 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Width
- 14 mm
- Brand
- StarTech.com
- Category
- Network Transceiver Module
- Model
- RX10KMSFPST
- Part number
- RX10KMSFPST
- EAN / UPC
- 065030883085
- Also known as
- StarTech.com Juniper RX-10KM-SFP Compatible SFP Module - 1000BASE-LX - 1GbE Single/Multi Mode Fiber Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 131
Specifications
32 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber ethernet cabling technology | 1000BASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 53972659 h |
| Brand compatibility | Juniper |
| Compatible products | RX-10KM-SFP |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR, REACH |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 65 mm |
| Height | 12 mm |
| Weight | 72 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 94 mm |
| Package depth | 115 mm |
| Package height | 32 mm |
| Package weight | 80 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 344 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case length | 414 mm |
| Master (outer) case height | 358 mm |
| Products per master (outer) case | 100 pc(s) |
