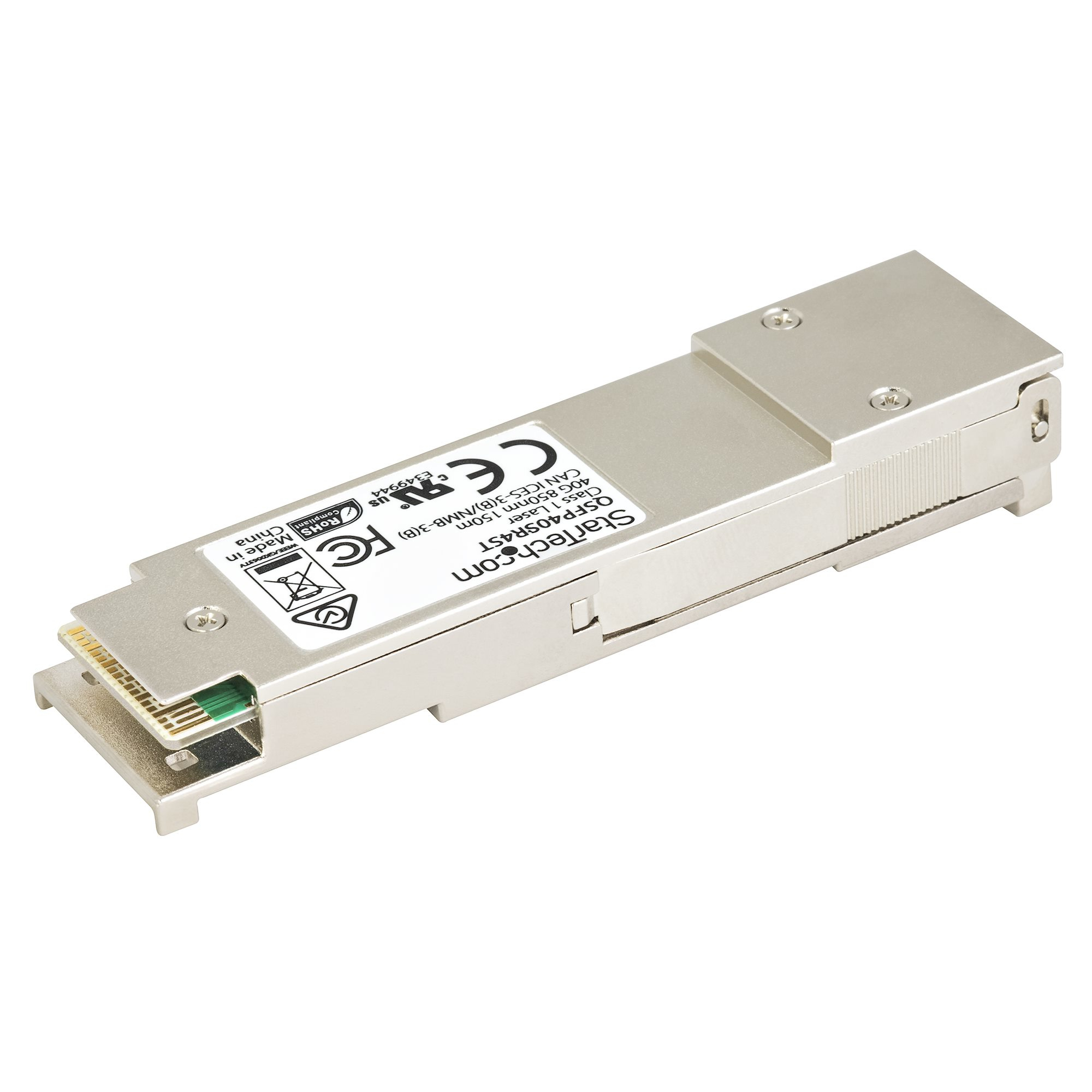

StarTech.com MSA Uncoded QSFP+ Module - 40GBASE-SR4 - 40GbE Multi Mode Fiber (MMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 100m - 850nm - DDM

StarTech.com MSA Uncoded QSFP+ Module - 40GBASE-SR4 - 40GbE Multi Mode Fiber (MMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 100m - 850nm - DDM

Model QSFP40SR4STEAN 065030873567

35 specifications
  • Speed40000 Mbit/s
  • Weight34 g
  • ColourSilver
  • SFP transceiver typeFiber optic
  • Power consumption (typical)0.7 W
  • Operating temperature (T-T)0 - 70 °C
See all specifications

Overview

Speed
40000 Mbit/s
Weight
34 g
Colour
Silver
SFP transceiver type
Fiber optic
Power consumption (typical)
0.7 W
Operating temperature (T-T)
0 - 70 °C
Brand
StarTech.com
Model
QSFP40SR4ST
Part number
QSFP40SR4ST
EAN / UPC
065030873567
Also known as
StarTech.com MSA Uncoded QSFP+ Module - 40GBASE-SR4 - 40GbE Multi Mode Fiber (MMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 100m - 850nm - DDM

Specifications

35 specifications in 9 groups

Performance

SFP transceiver typeFiber optic
Maximum data transfer rate40000 Mbit/s
Interface typeQSFP+
Multi-mode fiber (MMF) supportedYes
Fiber optic connectorMPO
SFP transceiver standardSR4
Maximum transfer distance150 m
Wavelength850 nm
Networking standardsIEEE 802.3ba
Duplex systemFull
Digital Diagnostics Monitoring (DDM)Yes

Features

Product colourSilver
Housing materialAluminium
Hot-Plug supportYes
Mean time between failures (MTBF)1489426 h

Power

Power consumption (typical)0.7 W

Certificates

Compliance certificatesRoHS
CertificationCE, FCC, UR

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width18.4 mm
Depth72 mm
Height13 mm
Weight34 g

Packaging content

Quantity per pack1 pc(s)

Packaging data

Package width92 mm
Package depth118 mm
Package height33 mm
Package weight62 g

Logistics data

Master (outer) case width270 mm
Harmonized System (HS) code85369010
Master (outer) case length340 mm
Master (outer) case height330 mm
Products per master (outer) case60 pc(s)
