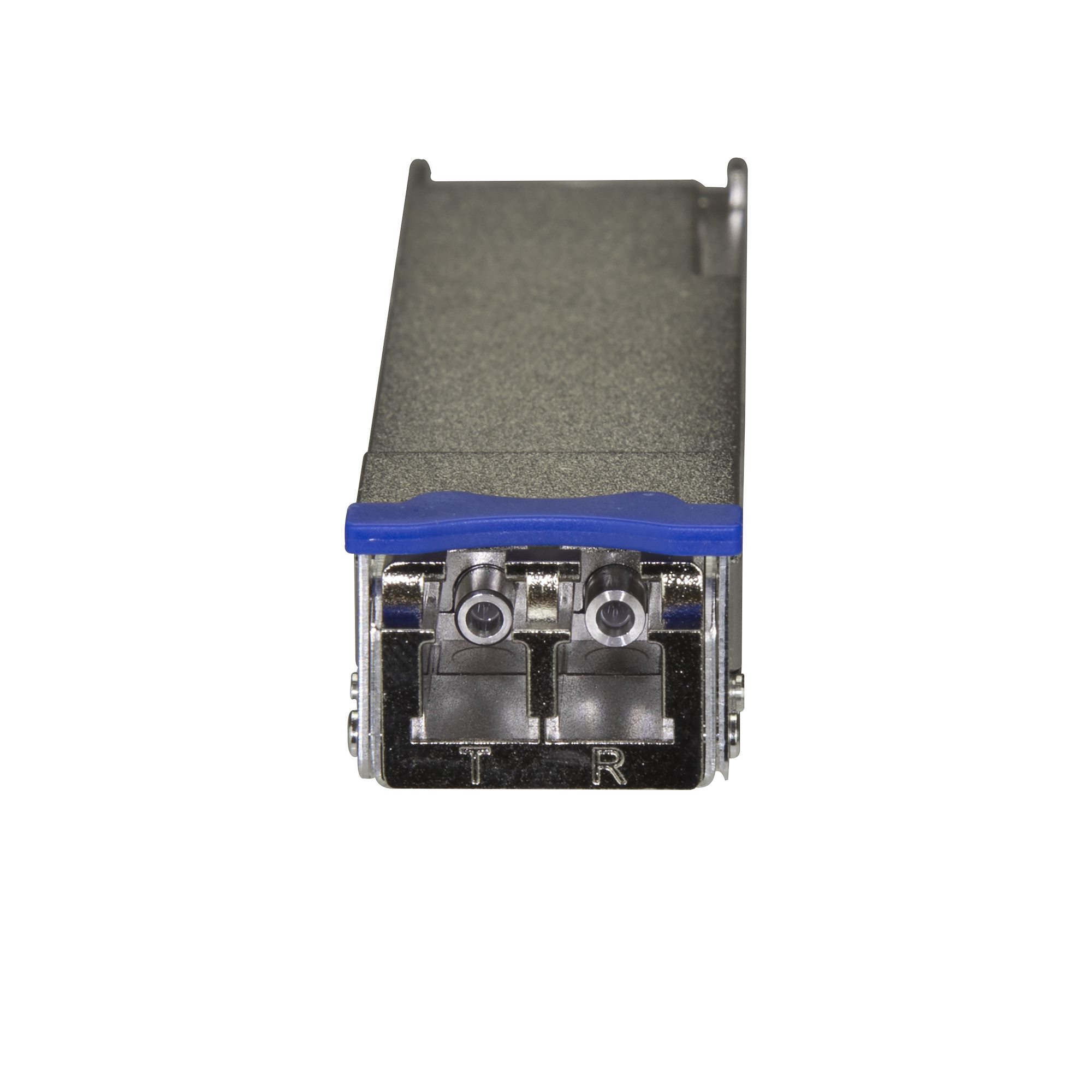

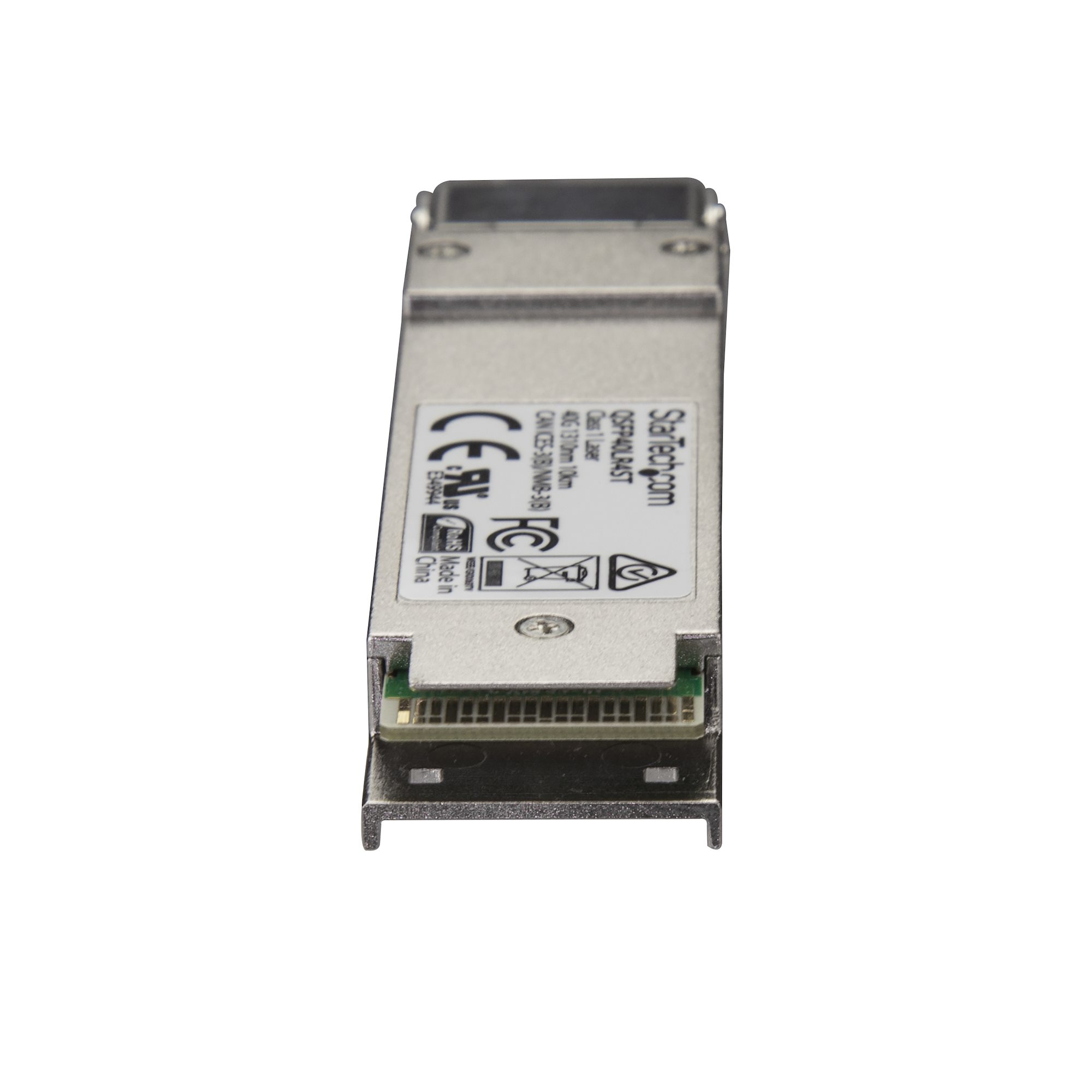

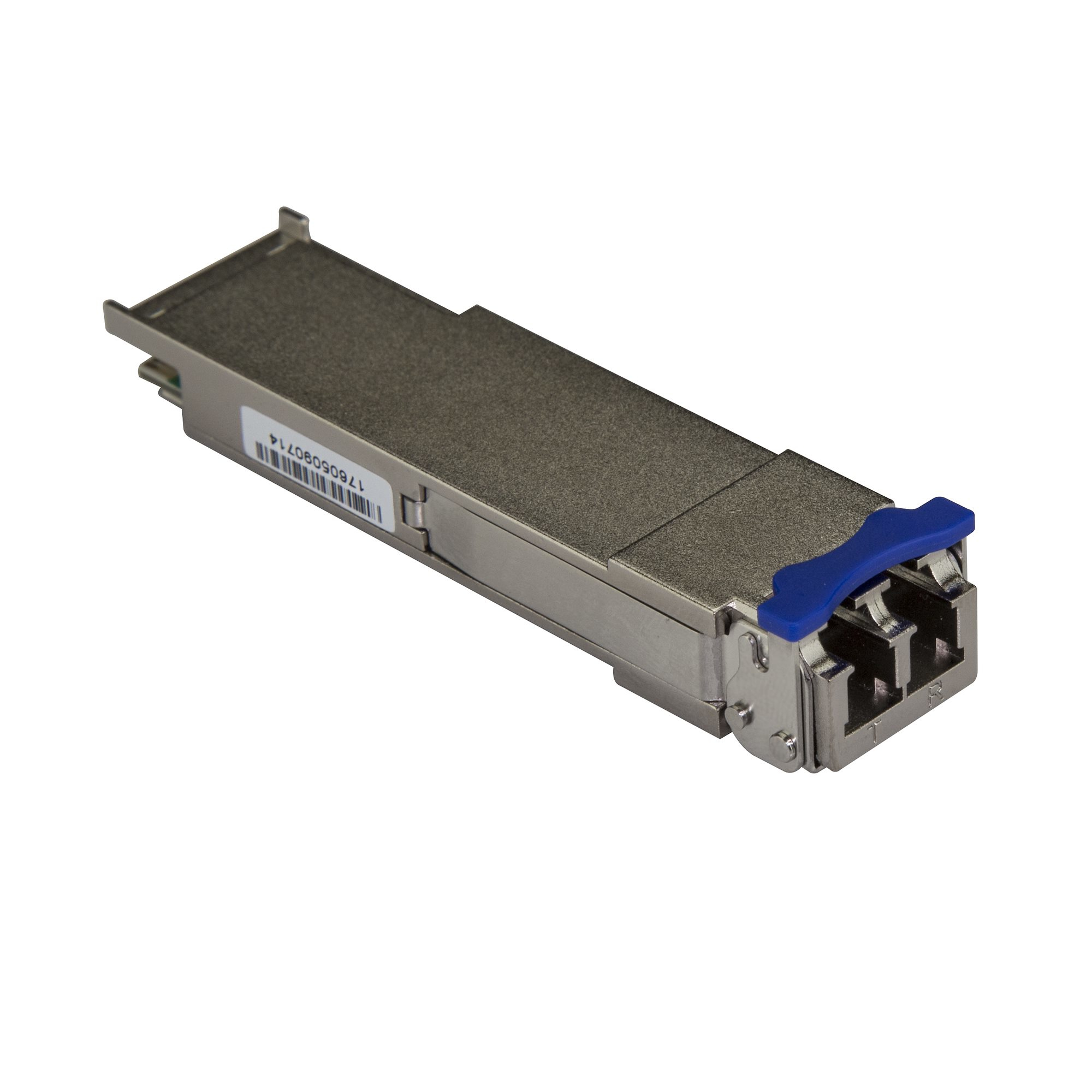

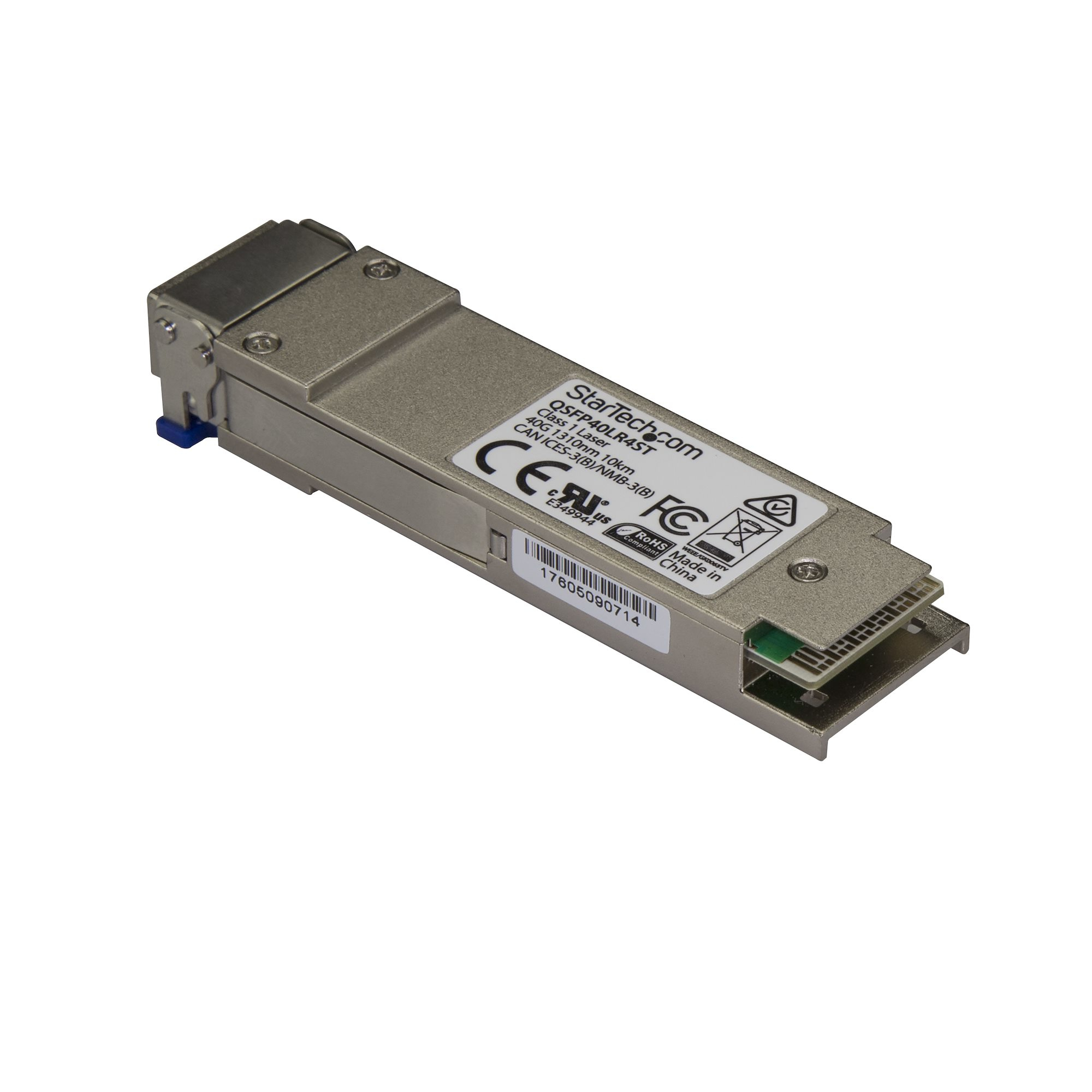

StarTech.com MSA Uncoded QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber (SMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - LC 10km - 1270nm to 1330nm

StarTech.com MSA Uncoded QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber (SMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - LC 10km - 1270nm to 1330nm

Model QSFP40LR4STEAN 065030873345

37 specifications
  • Speed40000 Mbit/s
  • Weight40 g
  • ColourSilver
  • SFP transceiver typeFiber optic
  • Power consumption (typical)2.5 W
  • Operating temperature (T-T)0 - 70 °C
See all specifications

Overview

Speed
40000 Mbit/s
Weight
40 g
Colour
Silver
SFP transceiver type
Fiber optic
Power consumption (typical)
2.5 W
Operating temperature (T-T)
0 - 70 °C
Brand
StarTech.com
Model
QSFP40LR4ST
Part number
QSFP40LR4ST
EAN / UPC
065030873345
Also known as
StarTech.com MSA Uncoded QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber (SMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - LC 10km - 1270nm to 1330nm

Specifications

37 specifications in 9 groups

Performance

SFP transceiver typeFiber optic
Maximum data transfer rate40000 Mbit/s
Interface typeQSFP+
Single-mode fiber (SMF) supportedYes
Multi-mode fiber (MMF) supportedNo
Fiber optic connectorLC
SFP transceiver standardLR4
Maximum transfer distance10000 m
Tx wavelength (min)1270 nm
Tx wavelength (max)1330 nm
Networking standardsIEEE 802.3ba
Duplex systemFull
Digital Diagnostics Monitoring (DDM)Yes

Features

Product colourSilver
Housing materialAluminium
Hot-Plug supportYes
Mean time between failures (MTBF)1489426 h

Power

Power consumption (typical)2.5 W

Certificates

Compliance certificatesRoHS
CertificationCE, FCC, UR, REACH

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width18.4 mm
Depth72 mm
Height13 mm
Weight40 g

Packaging content

Quantity per pack1 pc(s)

Packaging data

Package width134 mm
Package depth184 mm
Package height48 mm
Package weight76 g

Logistics data

Master (outer) case width250 mm
Harmonized System (HS) code85369010
Master (outer) case length300 mm
Master (outer) case height200 mm
Products per master (outer) case36 pc(s)
