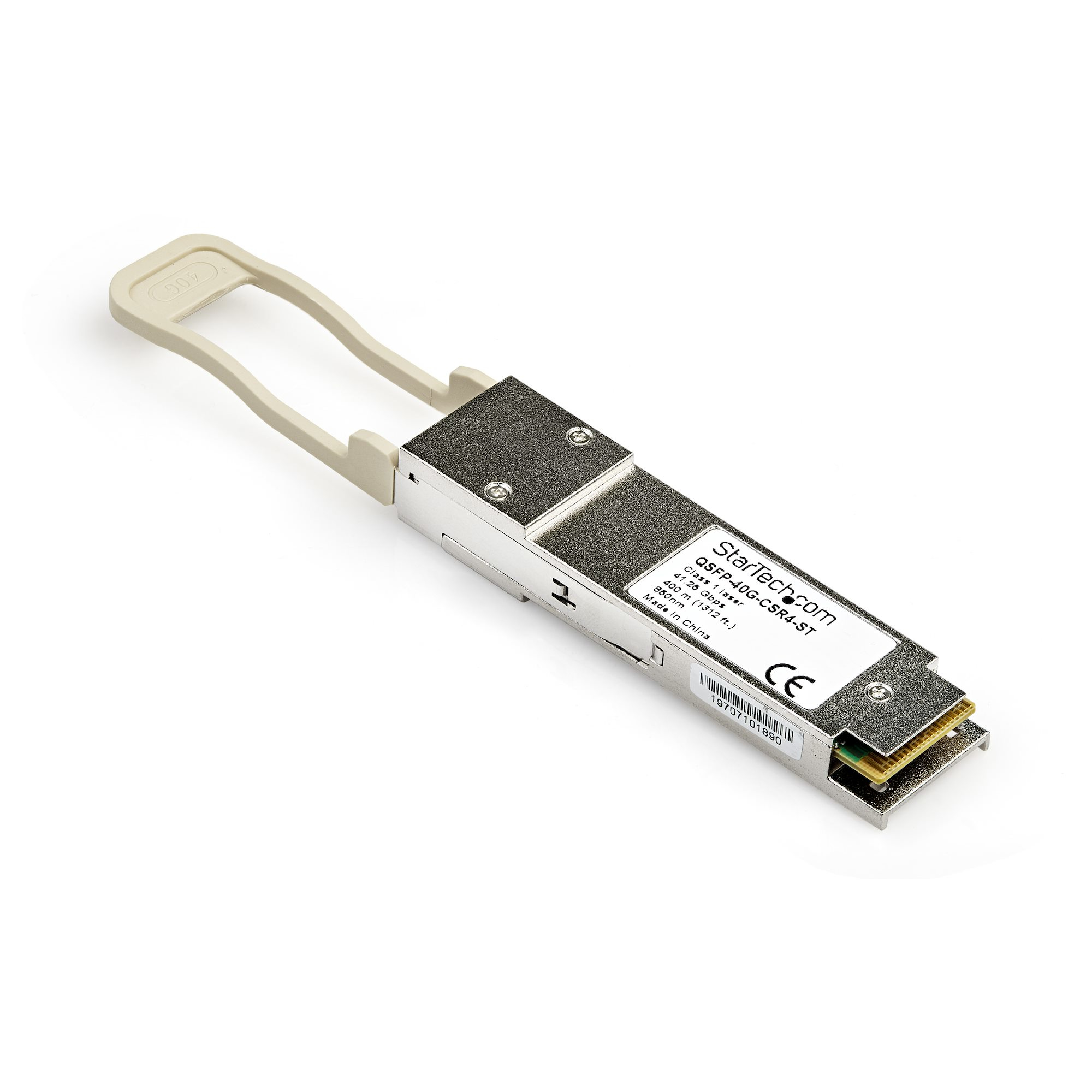

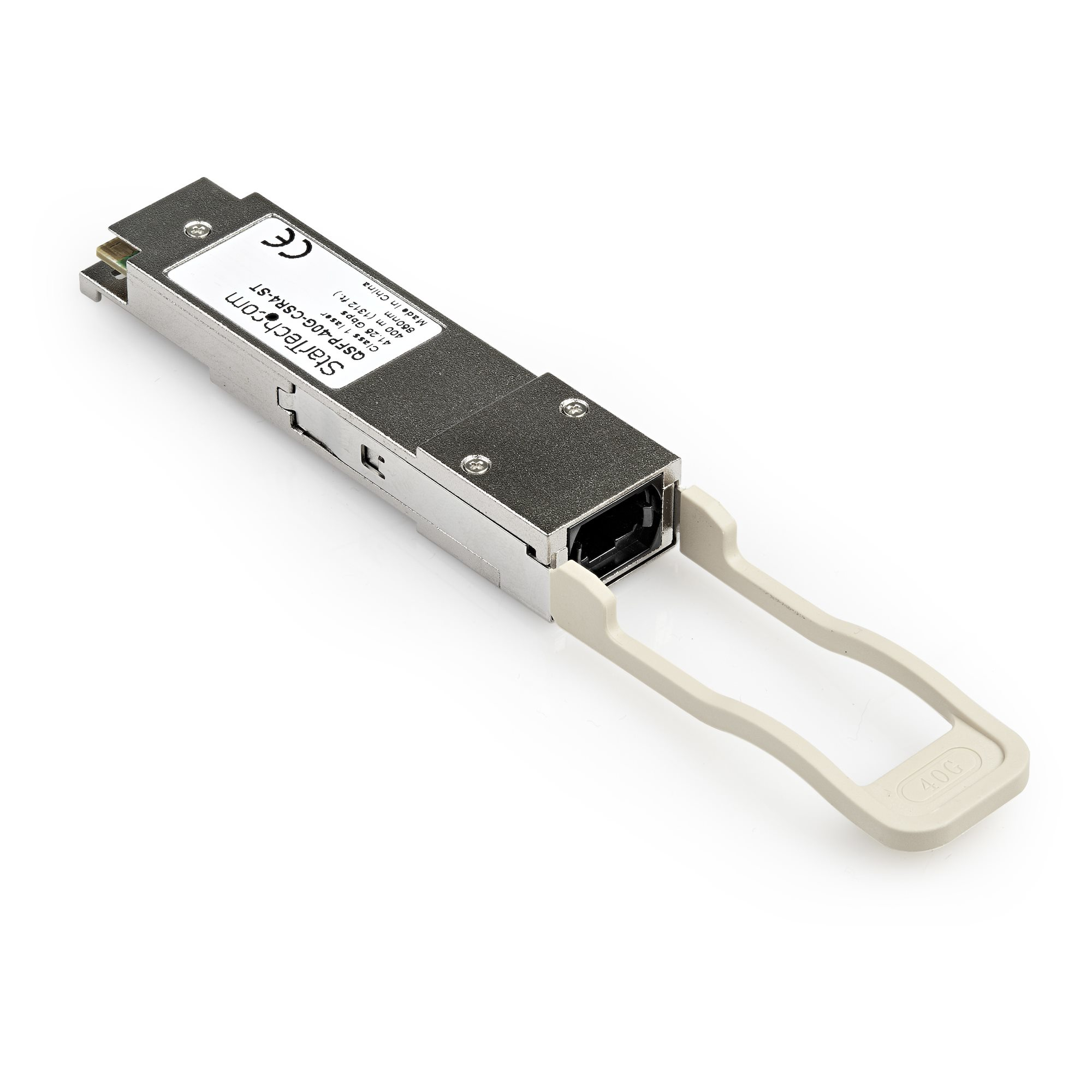

Cisco QSFP-40G-CSR4 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multimode Fiber MMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 300m -
Model QSFP-40G-CSR4-STEAN 065030886031
31 specifications
- Speed40000 Mbit/s
- Weight37.5 g
- ColourSilver
- SFP transceiver typeFiber optic
- Width122 mm
Overview
- Speed
- 40000 Mbit/s
- Weight
- 37.5 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Width
- 122 mm
- Brand
- StarTech.com
- Category
- Network Transceiver Module
- Model
- QSFP-40G-CSR4-ST
- Part number
- QSFP-40G-CSR4-ST
- EAN / UPC
- 065030886031
- Also known as
- StarTech.com Cisco QSFP-40G-CSR4 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multimode Fiber MMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 300m -
Specifications
31 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |

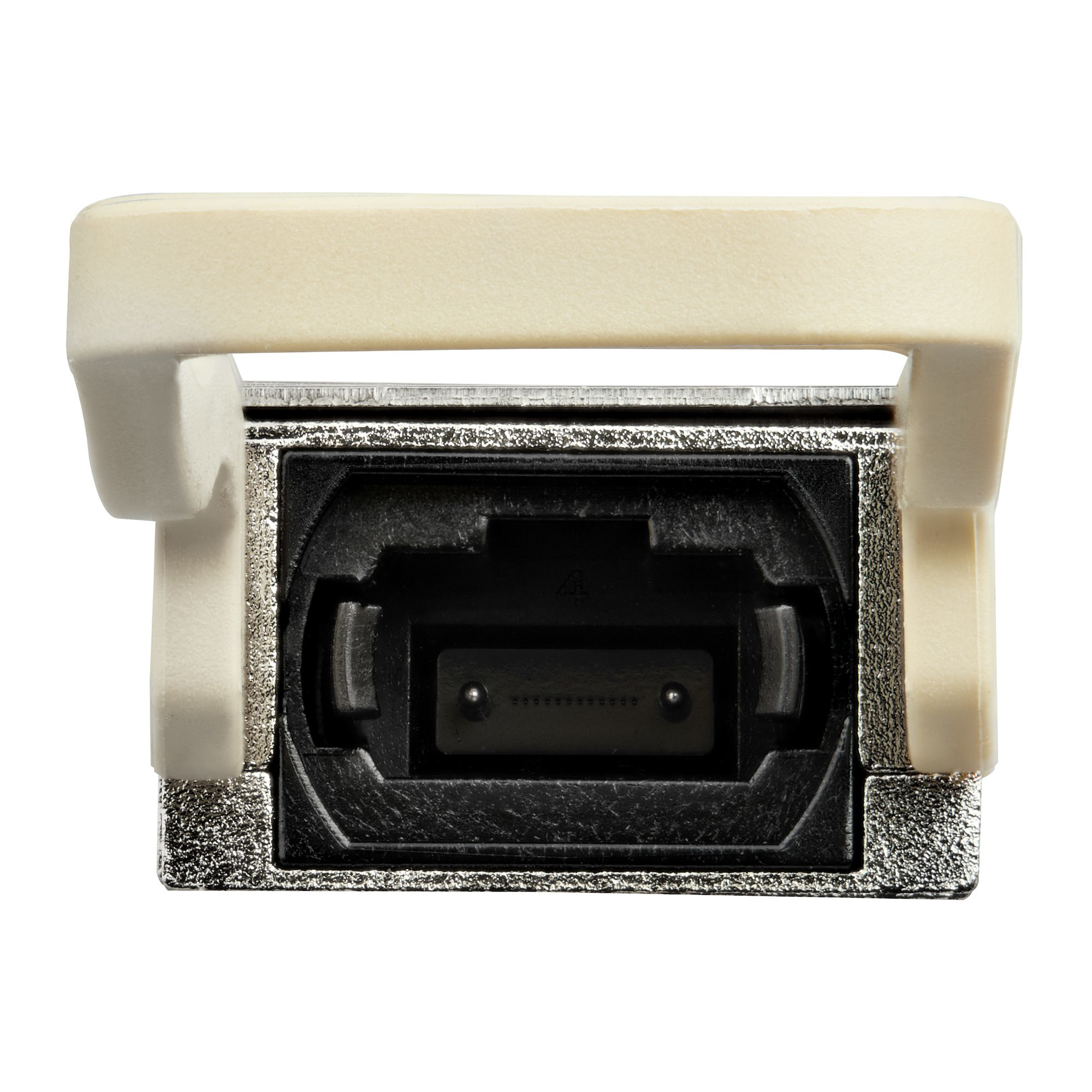

| Fiber optic connector | MPO |
| SFP transceiver standard | SR4 |
| Maximum transfer distance | 400 m |
| Wavelength | 850 nm |
| Fiber ethernet cabling technology | 40GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 95832027 h |
| Brand compatibility | Cisco |
| Compatible products | QSFP-40G-CSR4 |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 122 mm |
| Depth | 18.6 mm |
| Height | 8.5 mm |
| Weight | 37.5 g |

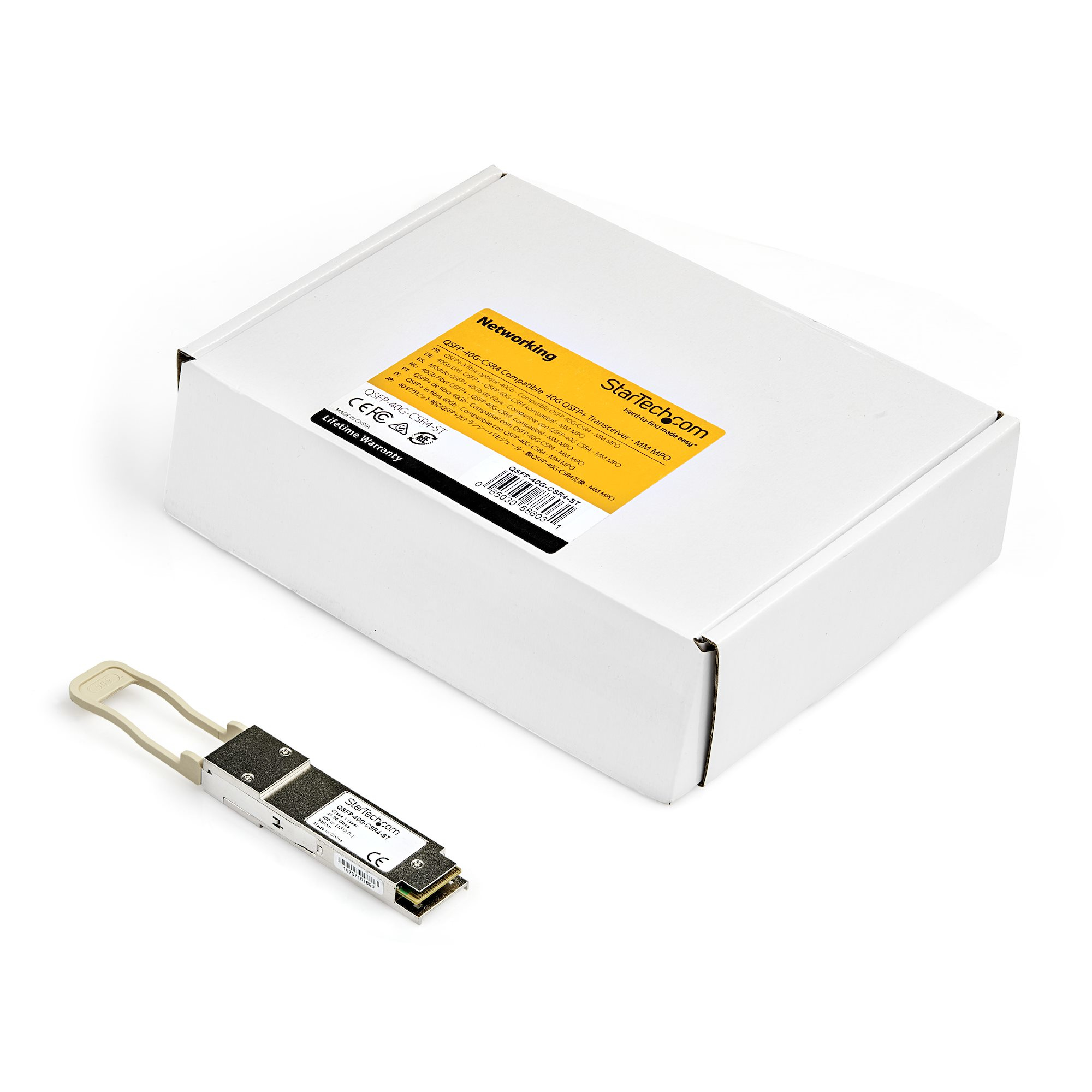

Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 132 mm |
| Package depth | 185 mm |
| Package height | 47 mm |
| Package weight | 60 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 344 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case length | 412 mm |
| Master (outer) case height | 360 mm |
| Products per master (outer) case | 25 pc(s) |
| Country of origin | China |
